• Model NO.：PXB100AS
• Bottom Blowing：Available
• Material：PP, PE, ABS...
• Total Weight：18t
• Output(Dry Cycle)：400 PC,Hr
• Die Head Option：Accumulator Head
• Transparent Line：Available
• Production Usage：Special Barrel, Drum, Sprayer, Tool Case
• Multi-Layer：Available
• Color：Double Color
• Screw Diameter：80mm*2
• Transport Package：Film Packing with Wooden Bottom
• Specification：Max capacity 90L
• Trademark：Puxin
• Origin：Suzhou
• HS Code：847730100

Basic Info.

Model NO. PXB100AS Bottom Blowing Available Material PP, PE, ABS... Total Weight 18t Output(Dry Cycle) 400 PC/Hr Die Head Option Accumulator Head Transparent Line Available Production Usage Special Barrel, Drum, Sprayer, Tool Case Multi-Layer Available Color Double Color Screw Diameter 80mm*2 Transport Package Film Packing with Wooden Bottom Specification Max capacity 90L Trademark Puxin Origin Suzhou HS Code 847730100

Product Description

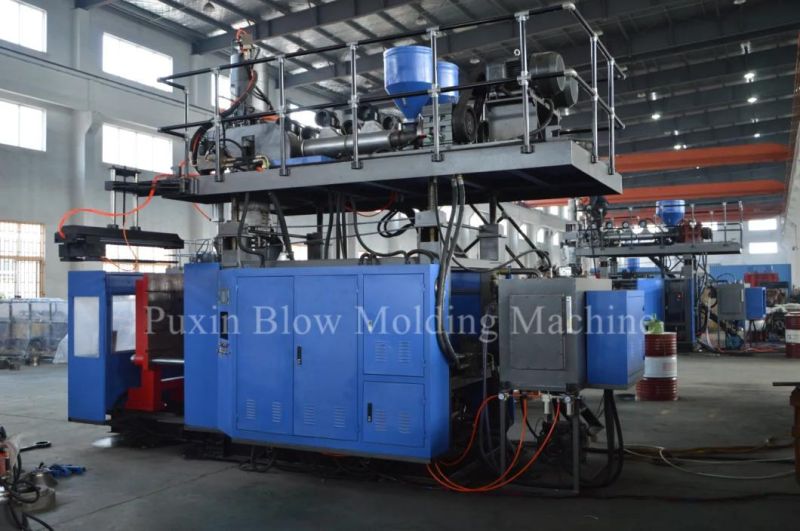

PXB100AS
60L-90L Double Color Die Head Series


Special Feature:
- High Speed Fixed Station For HDPE, PE, PP, PS Material Product
- Patented technology of Double Color Accumulator Head. Special usage for toolbox, Toy, Sports Equipment, Road Barrier.
- Quick Action Speed, Stable Running


Configuration List

PLC	MITSUBISHI	Japan
Touch Screen	HITECH	Taiwan
Inverter	MITSUBISHI	Japan
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan
Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	YUKEN	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	SONON	China
Motor	SIEMENS	China
Air Valve	FESTO	Germany
Parison Controller	Moog	Japan
Servo Valve	Moog	Japan

* Key components ALL IMPORTED from famous brand




Parameters

Machine model		PXB100AS
Material		PE,PP,ABS...
Max container capacity	L	90
Output(dry cycle)	pc/hr	400
Machine dimension(L×W×H)	M	6.2×2.8×4.5
Machine weight	T	18

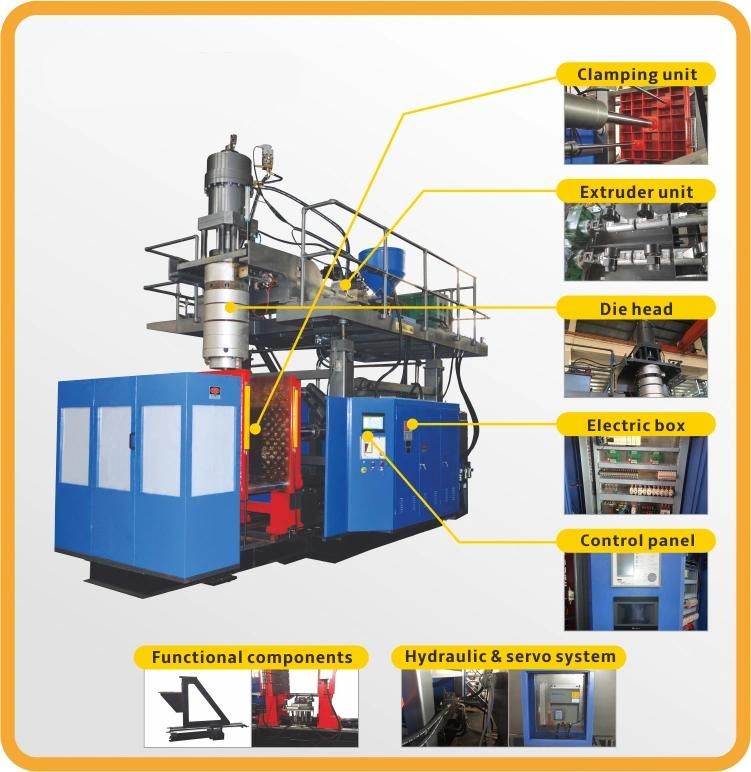

Clamping Unit
Clamping force	kn	450
Mold platen size(W×H)	mm	1080×1000
Platen opening stroke	mm	500-1200
Platen moving stroke	mm	700
Max mold size(W×H)	mm	800×1100
Mold thickness	mm	510-650
Power
Servo oil pump motor power	KW	18.5
Servo pump displacement	L/MIN	120
Blow pressure	MPA	0.8
Air consumption	M3/MIN	1.2
Cooling water pressure	mpa	0.3
Water consumption	L/min	100
Average energy consumption	KW	43-50
Extruder unit
Screw diameter(outer layer/inner layer)	mm	80×2
Screw L/D ratio	L/D	24
HDPE Melting capacit for HDPE	kg/hr	160-200
Number of heating zone	zone	5×2
Screw heating power	kw	25.1×2
Screw fan power	KW	0.6
Extruder motor power	kw	30×2
Die head
Number of heating zone for single die head	zone	5
Heating power for single die head	kw	26
Max die-pin diameter	mm	450
Accumulator capacity	L	12
(HDPE) Accumulator weight(HDPE)	KG	9

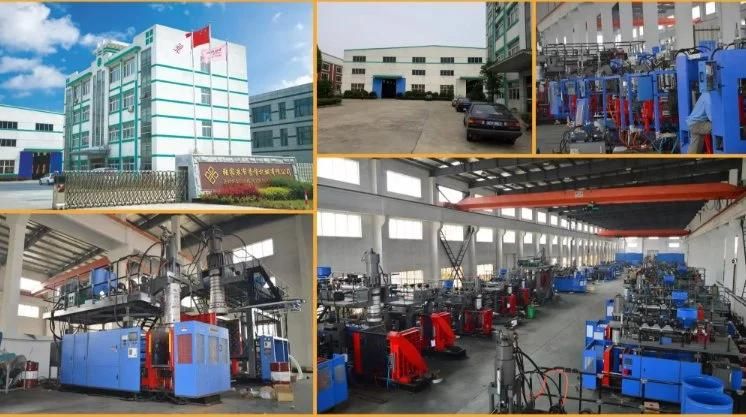

OUR FACTORY:
