Fully Automatic Double Extruder PE Cling Film Making Machine

Zhejiang Pinbo Plastic Machinery Co., Ltd.
  • After-sales Service：Life Time
  • Warranty：1 Year
  • Type：Plastic Extruder
  • Plastic Processed：LDPE,CPE,TPE,Pve,CPP
  • Product Type：Stretch Film Machine
  • Feeding Mode：Multiple Feed

Base Info

  • Model NO.：PB-L55,75X1250
  • Assembly Structure：Separate Type Extruder
  • Screw：Twin-Screw
  • Exhaust：Don′t Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Applied Material：LDPE, LLDPE, PVC, CPE, PEVA, CPP
  • Vlotage：Customized
  • Design Speed (Max)：150m,Min
  • Thickness：10-50 Micron
  • Power(W)：75kw
  • Weight：8t
  • Screw L/D：30:1
  • Color：Can Be Customized
  • Inverter：Delta, Taiwan
  • Roll Exchange：by Auto Cut & Exchange
  • Film Width：1000mm , 500mmx2 Rollers
  • Package：Film Wrapping with Wooden Pallet
  • Transport Package：Standard Packing
  • Specification：7500*3000*3400mm
  • Trademark：PYM
  • Origin：Zhejiang Province Wenzhou City
  • HS Code：84778000
  • Production Capacity：200sets,Year

Description

Model No.PB-55/75X1250Screw Diameter55/75mmScrew L/D30:1Screw Speed50-150rpmLayer StructureAB/ABAFilm materialPEFilm Width1000mm/2*500mmFilm Thickness0.01-0.05mmElectric power supplyCustomized, Standard is 380V/50HZ/3PTotal Power75KWCapacity80-150Kg/hTotal weight8TDimension7.5M*3M*3.4M
Product Advantages
  • Easy operating, long life, energy saving
  • Stable and reasonable extrusion
  • High quality T-die for excellent film evenness and stability
  • Enhanced cooling system
    (adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller)
  • Advanced oscillation (swing) system
  • Highest winding speed (up to 200m/min) among similar stretch film machines
  • High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min

  • Optional System:
  • vacuum pump
  • Melting gear pump and PID controlling system
  • Micro-computer temperature controller with touch screen for accuracy temperature control
  • Automatic air shaft loading & off-loading to save man power
  • Automatic screen changer with hydraulic station

Machine Details:

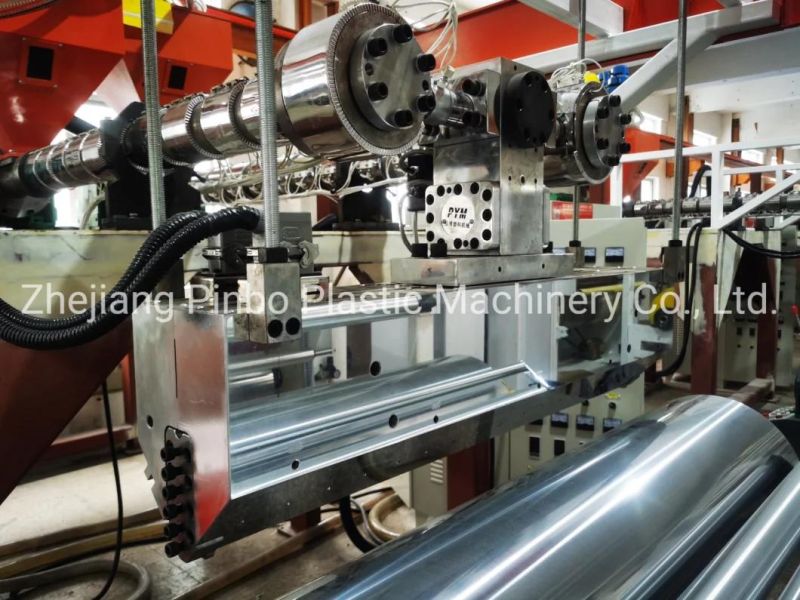

Extruder & T die
Fully Automatic Double Extruder PE Cling Film Making MachineFully Automatic Double Extruder PE Cling Film Making Machine

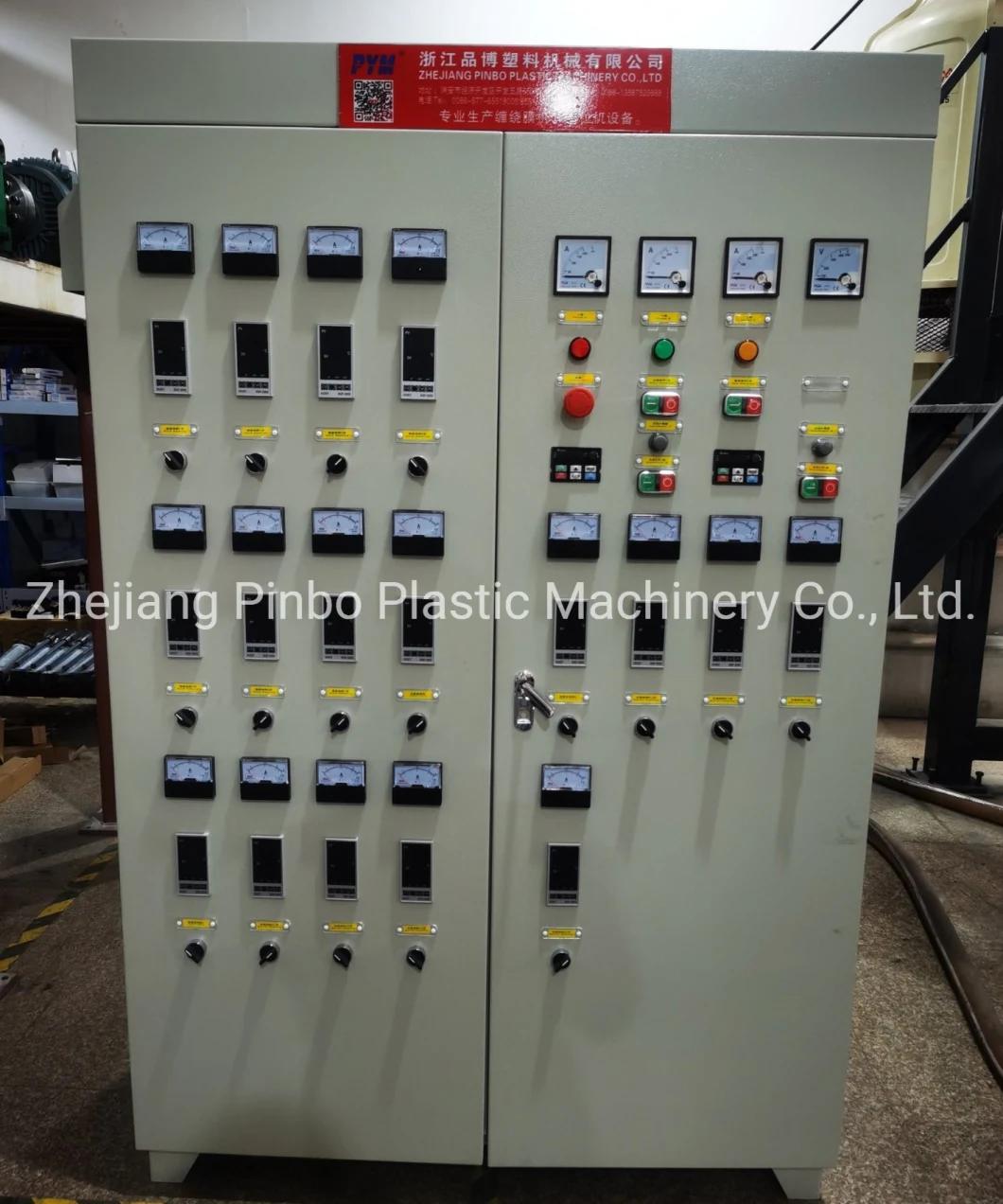

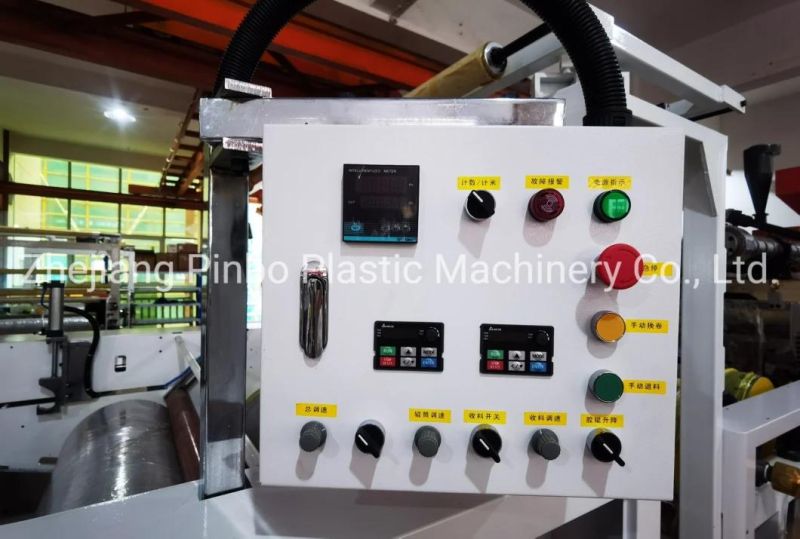

CONTROL BOX:
Fully Automatic Double Extruder PE Cling Film Making MachineFully Automatic Double Extruder PE Cling Film Making Machine

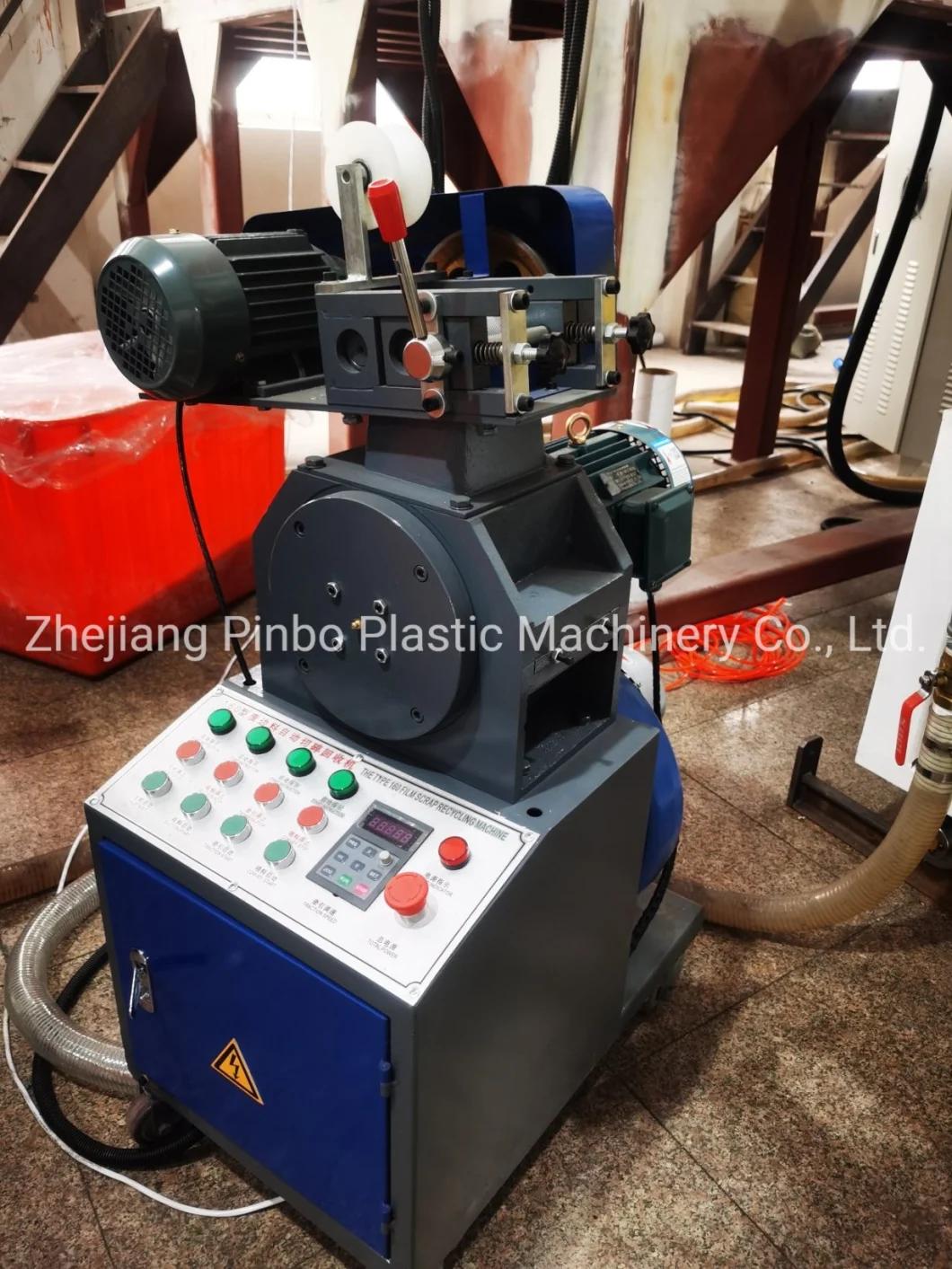

WASTE FILM CRUSHER:
Fully Automatic Double Extruder PE Cling Film Making MachineFully Automatic Double Extruder PE Cling Film Making Machine
Fully Automatic Double Extruder PE Cling Film Making MachineFully Automatic Double Extruder PE Cling Film Making MachineFully Automatic Double Extruder PE Cling Film Making MachineFully Automatic Double Extruder PE Cling Film Making Machine
