Plastic Machinery

Home > Product > Film Blowing Machine

800mm Zip-Lock Bag Film Blowing Machine

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：Zipper Bag Film Blowing Machine
  • Raw Material：LDPE,LLDPE,HDPE
  • Maximum Folding Width of Film：800mm
  • Screw Diameter：50mm
  • Automation：Non-Automatic
  • Computerized：Non-Computerized

Base Info

  • Model NO.：FMZ-800
  • Machine Weight：5t
  • Certification：CE, ISO9001:2008
  • Model：Fmz-800
  • Machine Size：L*W*H: 4.5m * 2.25m * 4.5m
  • Voltage：380V 50Hz 3phase
  • Transport Package：Plastic Film for Container Shipment
  • Specification：single layer
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477300000

Description

LDPE / LLDPEthickness0.02--0.15mmfilm width(mm)60--500100--700100--1000max output45kgs/hr50kgs/hr60kgs/hr Extruder30:1temp. controller3 zone3 zone3 zonebarrel cooling180w*2180w*2180w*2driving motor15kw15kw15kw Die headSpiral mandrel die chrome plated surface 40Crcooling fan1.5kw1.5kw2.2kw Take up unit partauto-loader, film surface treater, fast change net, air compressor, double center rewinder/auto-rewinder, flat cage roll rewinder, rotary die head, double wind air ring

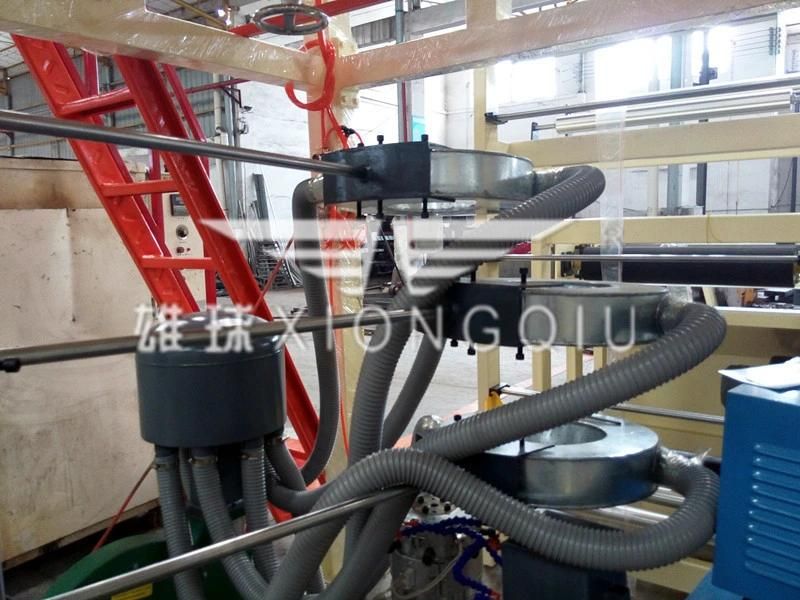

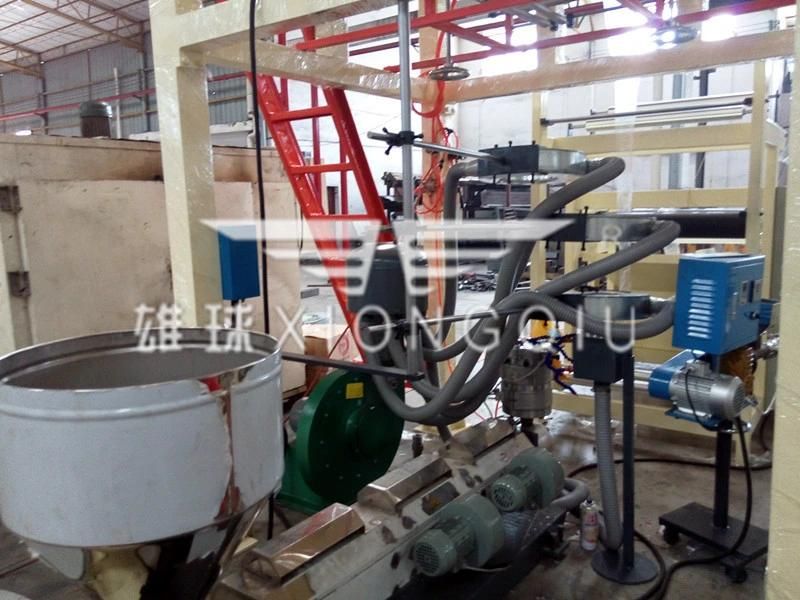

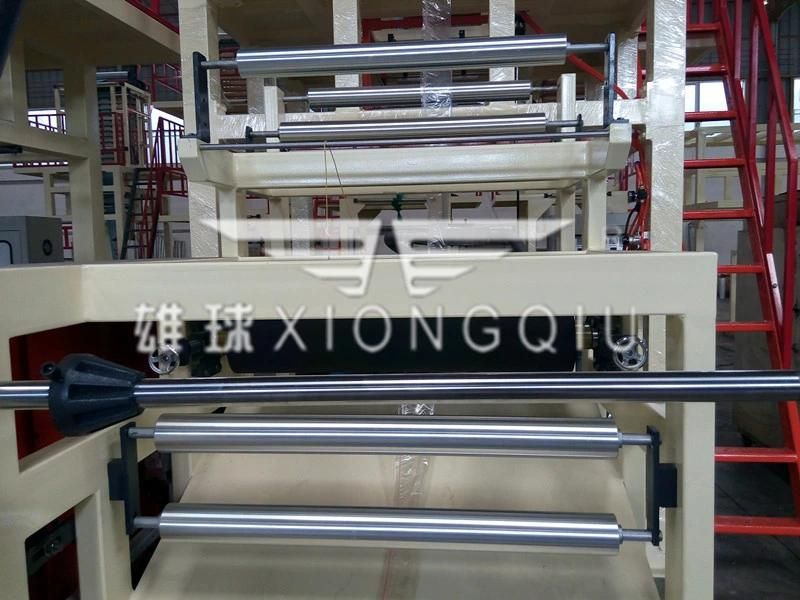

Pictures for refernece:
800mm Zip-Lock Bag Film Blowing Machine
800mm Zip-Lock Bag Film Blowing Machine
800mm Zip-Lock Bag Film Blowing Machine
