• Model NO.：RM-5Gallon
• Mould Material：P20 Stainess Steel
• Max.Container Diameter：80mm
• Number of Lamp：70
• Low Pressure Consuming：2000L,Min
• Oven：4*2*2.2
• Raw Material：PET
• Making Method of Parison：Stretch Blow
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Transport Package：Standard Wooden Cases
• Specification：RM-9B
• Trademark：RELIABLE
• Origin：Zhangjiagang City China
• HS Code：8477209000
• Production Capacity：15 Sets,Month

1.Capacity :100-1200b/h
2.Volume: 20l
3.Weight:650kw  Specification:RM series semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 100 to 2000ml.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step by step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate.

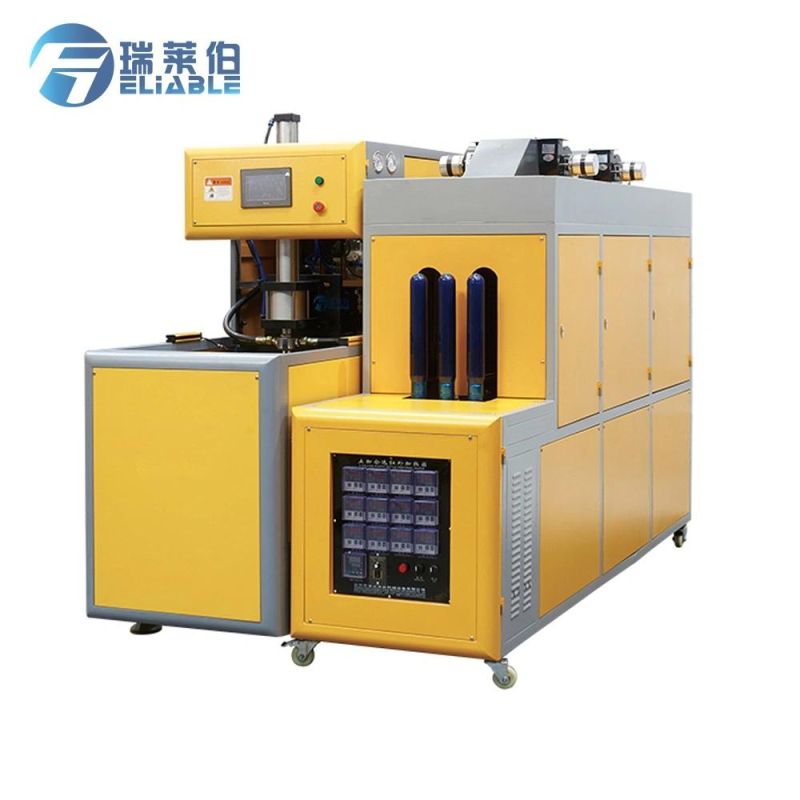

RM-9b Semi-automatic 2-cavity Blowing Machine
MOLDING	Clamping force	kg	1300
	Clamping stroke	mm	155
	Stretching stroke	mm	370
	Bottom Stroke	mm	/
	Cavity pitch	mm	130
	Number of Cavity	Cavities	2
CONTAINER	Max.container volume	itr	3
	Neck diameter range	mm	10-120
	Max.container diameter	mm	130
	Max.container height	mm	350
	Carriage unit	pcs	72
THEORETICAL OUTPUT	bph		1200
ELECTRICAL SYSTEM	Total power	kw	17
	Heating power	kw	16
	Max.heating power	kw	8
AIRSYSTEM	Operating pressure	kg/cm2	7
	Air consuming	Itr/min	600
	Blowing pressure	kg/cm2	25
	Air consuming	Itr/min	800
AIR DRYER	Operating pressure	kg/cm2	2~4
	Temperature		10~12
	Consuming	kcal/hr	2000
	Flow rate	Itr/min	30
WATER CHILLER	Operating pressure	kg/cm2	2~4
	Temperature		30
	Consuming	kcal/hr	10000
	Flow rate	Itr/min	130
MACHINE	Machine size	mm	1650-650-1700
	Machine weight	kg	600
REMARKS	1. All data standard infication for0.6L bottle. 2. The actual output depends on the preform quality and boltte shape. 3. Specifications are subject to change without notice. 4. Please provide the stable ambient temperature.

  The normal packages is wooden box. If export to Europe Country, the wooden box will be after fumigated. If enter container the packages is too tighter, we may use PE film to wrapping the machine. or according customer special request.

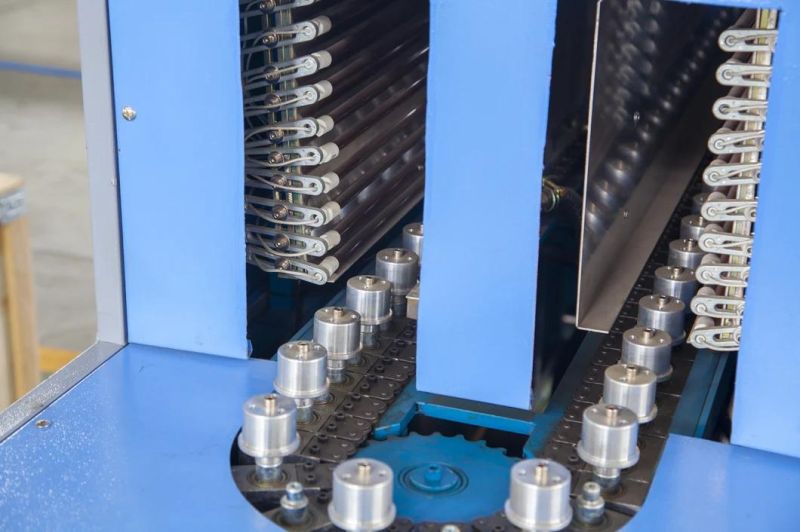

Hearting Part

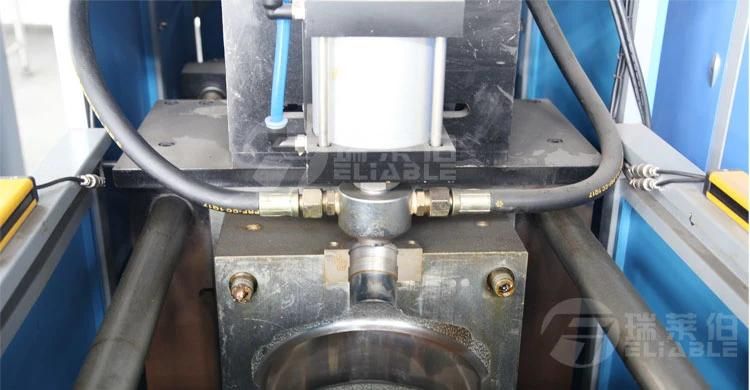

Blowing PartHow to get your suitable machine ?Please reply to the following questions, do it and give your answers to us as possible as you can.
1. How about the bottle size,volume ,height ,neck diameter ,diameter of bottle or other please inform us of details .Pictures and design will be great
2. What is the  production capacity(per hour) you want ?
3. Your power supply, for examples : 3Phases AC 380V 50Hz
then we can offer you more detailed quotation and other information you need .
