• Model NO.：KM-A2
• Bottle Height：50mm-350mm
• Bottle Neck Diameter：15mm-38mm
• Market：Automatic Pet Bottle Blowing Machine Market
• Number of Cavities：2 Cavities
• After Sale Serveice：Engineers Available to Service Overseaas
• Raw Material：PET
• Making Method of Parison：Stretch Blow
• Automation：Automatic
• Computerized：Computerized
• Certification：CE
• Transport Package：Wooden Case for Automatic Bottle Blowing Machine
• Specification：CE ISO SGS approved
• Trademark：King Machine
• Origin：Zhangjiagan City, Jiangsu Province, China
• HS Code：8477300000
• Production Capacity：25 Sets,Month of Automatic Bottle Blowing Machine

Basic Info.

Model NO. KM-A2 Bottle Height 50mm-350mm Bottle Neck Diameter 15mm-38mm Market Automatic Pet Bottle Blowing Machine Market Number of Cavities 2 Cavities After Sale Serveice Engineers Available to Service Overseaas Raw Material PET Making Method of Parison Stretch Blow Automation Automatic Computerized Computerized Certification CE Transport Package Wooden Case for Automatic Bottle Blowing Machine Specification CE ISO SGS approved Trademark King Machine Origin Zhangjiagan City, Jiangsu Province, China HS Code 8477300000 Production Capacity 25 Sets/Month of Automatic Bottle Blowing Machine

Product Description

Automatic PET bottle stretch blowing machine
1.Full automatic machine
2.Use for PET plastic bottle in all shapes.
3.Controlled by PLC
4.CE,ISO,SGS approved
Introduction:
KM-A2 full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Features of main body:
1). Stable performance with advanced PLC.
2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmosphere pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Safe, reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
11). Low cost, high efficiency, easy operation and maintenance etc, profited from the fully automatic technological process.
12). Ideal cooling system make the finished bottles without any flaws.
13). Easy for you to install,test and start up.
14). Low rejection rate: less than 0.2 percent.

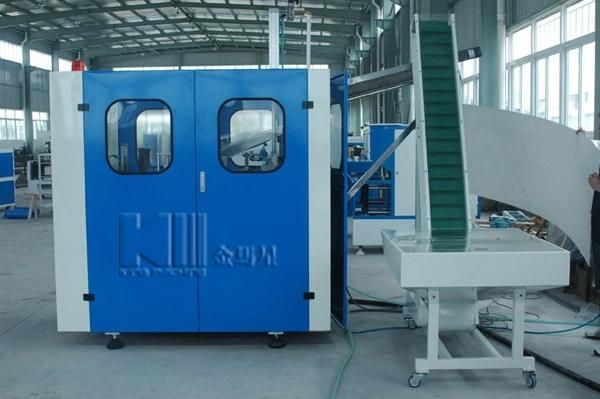

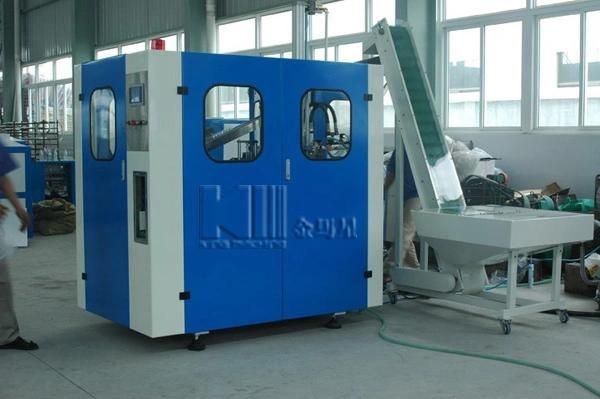

Pictures:
