• Model NO.：SJ90.120, 150
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Material：Stainless Steel
• Mould for Sheet/Board：T Type
• Intelligent Temperature Controller：Omron
• Inverter：ABB
• Button：Schneider
• Control System：PLC Control System
• After Sale Service：Life Long with Professional After Sale Team
• Raw Material：PP Granule
• Machine Color：as Request
• Transport Package：as Export Standard for Plastics Machine
• Specification：ISO9001 CE
• Trademark：suke
• Origin：Qingdao, China
• HS Code：84775900
• Production Capacity：25sets,Year

Basic Info.

Model NO. SJ90.120, 150 Certification CE, ISO9001:2008 Customized Customized Condition New Material Stainless Steel Mould for Sheet/Board T Type Intelligent Temperature Controller Omron Inverter ABB Button Schneider Control System PLC Control System After Sale Service Life Long with Professional After Sale Team Raw Material PP Granule Machine Color as Request Transport Package as Export Standard for Plastics Machine Specification ISO9001 CE Trademark suke Origin Qingdao, China HS Code 84775900 Production Capacity 25sets/Year

Product Description

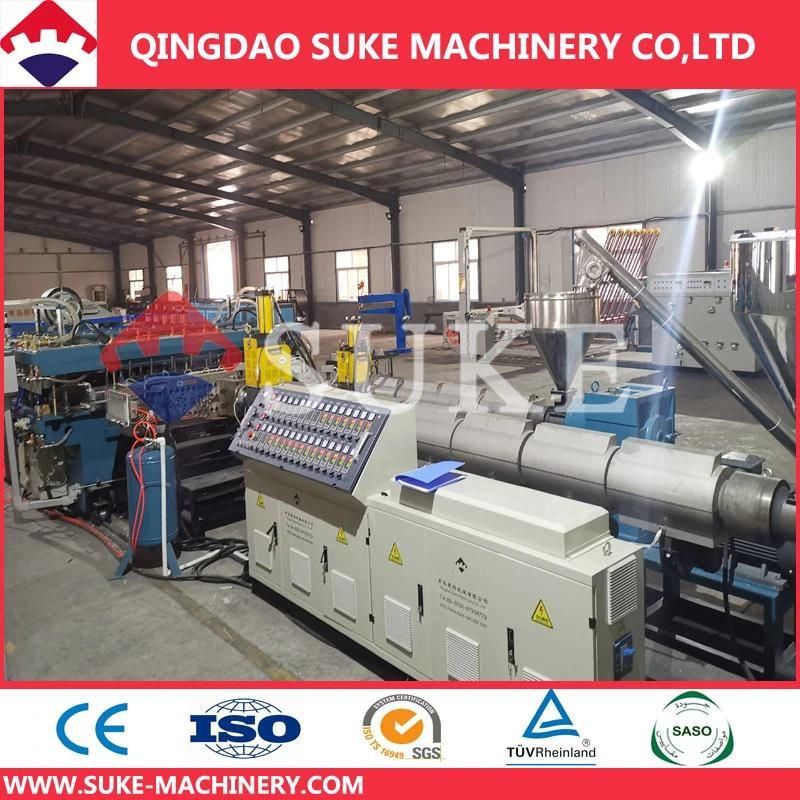

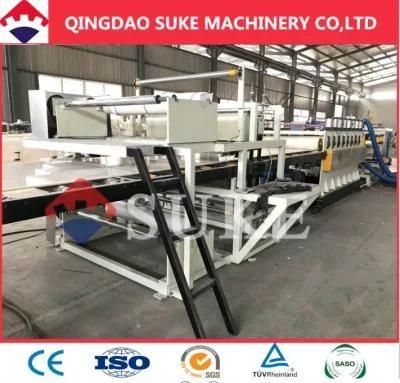

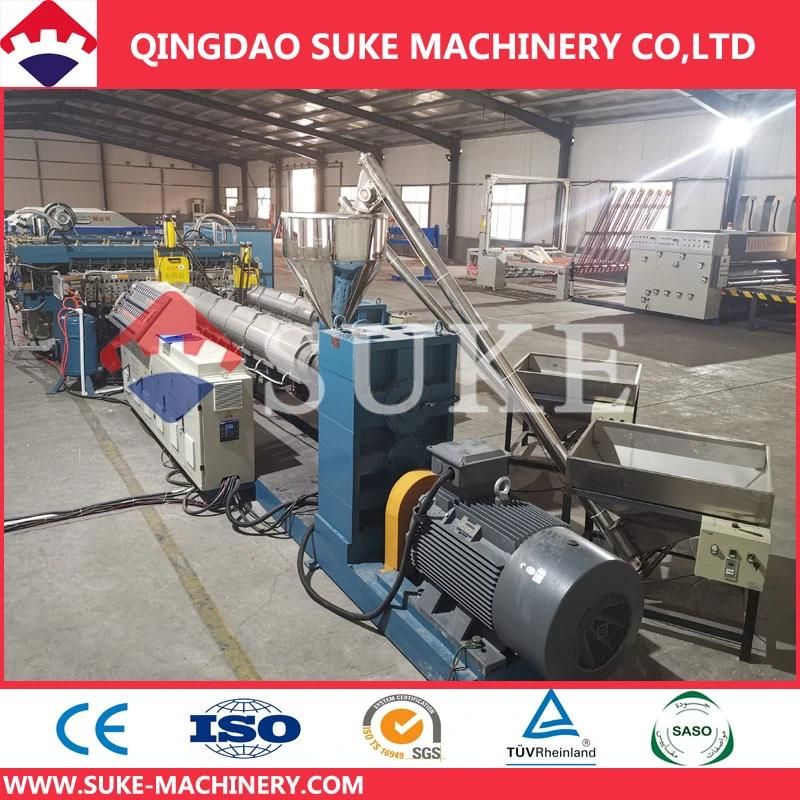

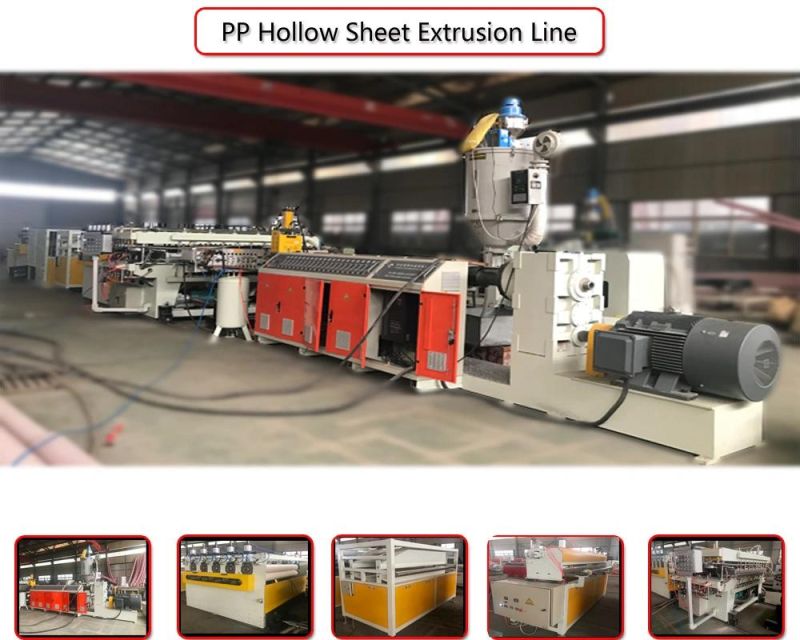

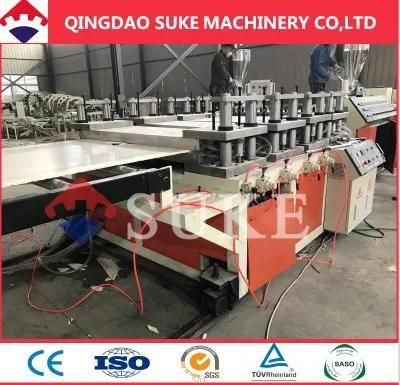

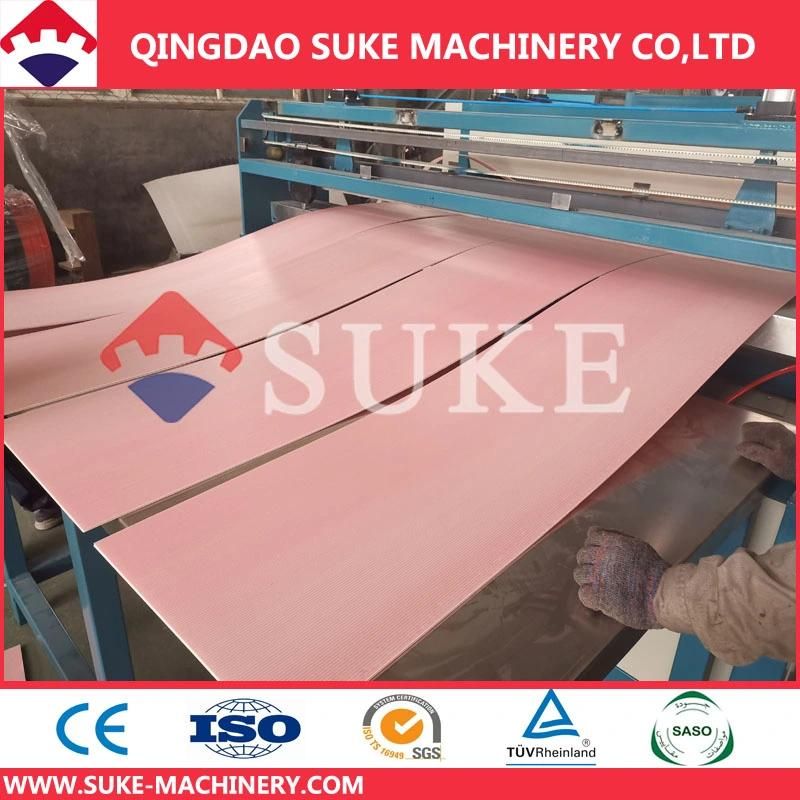

PP Hollow Sheet Extrusion Line with CE and ISO9001 Certification(SJ90.120, 150)

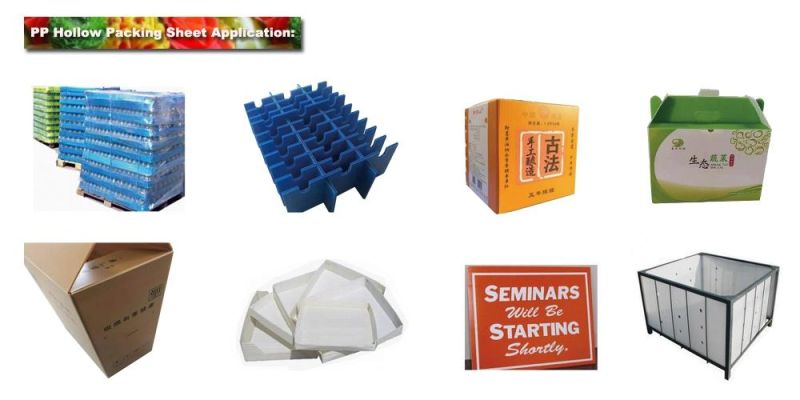

The PP hollow sheet making machine is applicable to produce PC, PP, PE hollow profile board. The products is used widely for building, decorating, advertisement laying, road noise isolation and packing. PP hollow profile board can instead of carton which have feature like light weight, high strengthen, moisture-proof, antisepsis.

Features of PP hollow sheet extrusion line

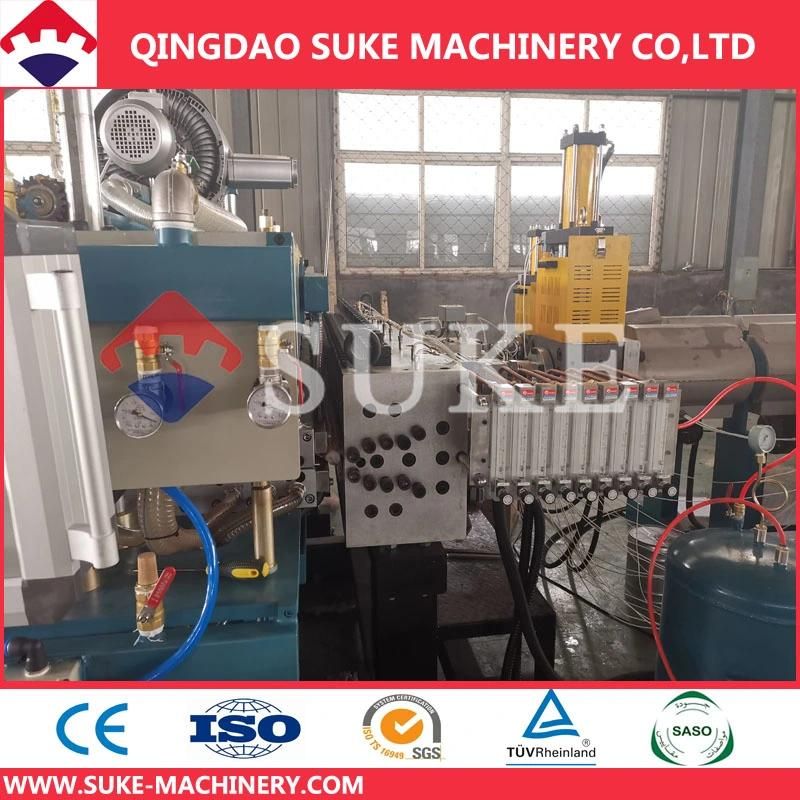

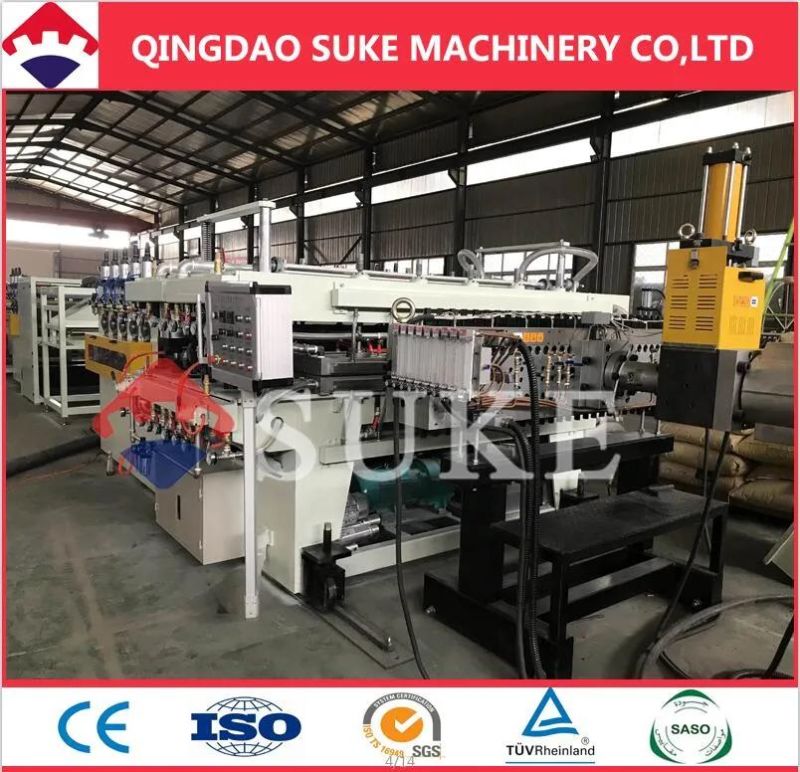

1. The vacuum calibrator featured with wear-resistance, dirty free and the lifting, falling and leveling for the forming plates is much easier to be controlled.

2. High speed screw, low energy consumption with high rotation speed to match gear pump and stable pressure; Output capacity is 25% higher than other brand extrusion lines. Because of special design of forming plates.

3. Special designed cooling system for all section of forming plates, and unique designed vacuum
System for each section of forming plate.

4. Special designed temperature control oven with cross heat shrink forming, which is much easier to be controlled than other brand extrusion lines.

5. The softness of pull rolls could be customized on request to extend its stretch.

6. The air capacity of hollow sheet and low pressure could be adjusted and controlled slightly, which is easily to be controlled than any other brand extrusion lines.

7. Unique T-Die is specially designed for PP hollow sheet. The thickness of hollow sheet could be from 2mm to 10 mm with twin-wall. The ribbed between walls could be rectangular and diagonal shape.

8. Anti-UV co-extrusion layer could be one sided or two sided, outer surfaces could be sandy or glossy according to configuration requirement.


If you want more detials about PP Hollow Sheet Extrusion Line, please contact us

Extruder model	Φ100	Φ120
Product width	1300mm	2100mm
Product thickness	2-10mm	2-10mm
Motor power	110kw	132kw
Papacity	250-300kg/h	400-450kg/h
