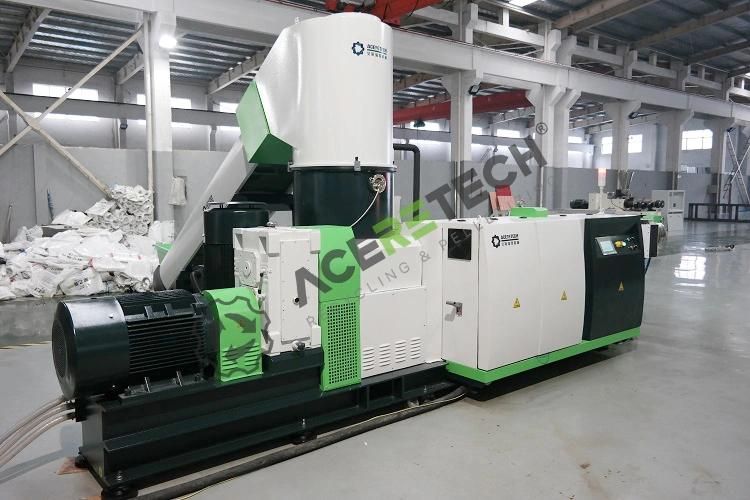

Fully Automatic Pellet Making Machine Made in China for EPS Foaming Plastic
Jiangsu Aceretech Machinery Co., Ltd.- Warranty：1 Year
- Material Processed：Film
- Plastic Type：PE
- Screw：Single-Screw
- Automation：Automation
- Computerized：Computerized
Base Info
- Model NO.：ACS-H
- Certification：CE, CE ISO9001 TUV
- Type：Recycling Granulator
- Compactor Volume：300L-1400L
- Material of Screw：38crmoala (Sacm-645), Bimetal (Optional)
- Output Range：150kg,H-1200kg,H
- Dimension(L*W*H)：According to Model
- Screw Design：Single
- Voltage：220V 380V 440V or Customized
- Final Product Shape：Particles
- Output (Kg/H)：150 - 1200
- Function：Make Recycle Plastic Granules
- Diameter of Screw：80mm-180mm (Standard)
- Applicable Industries：Manufacturing Plant, Food & Beverage Factory
- Application：Waste Plastic Recycling
- Power (Kw)：According to Model
- Transport Package：Wooden Pallet
- Trademark：Aceretech
- Origin：Jiangsu, China
- HS Code：8477209000
- Production Capacity：10 Set,Sets Per Month
Description
System composition Belt Conveyor, Cutting Compactor, Single Screw Extruder, Filtration, Pelletizer, Water Cooling Device, Dehydration Section, Conveyor Fan, Product Silo. Output Range 150kg/h-1200kg/h Feeding Device Belt Conveyor (Standard), Roll Hauling off device (Optional) Compactor Volume 300L-1400L Diameter of screw 80mm-180mm (Standard) Material of screw 38CrMoAlA (SACM-645), Bimetal (Optional) L/D of screw 31/1, 32/1, 34/1, 36/1 (According to the characteristics of recycling) Heater of barrel Ceramic heater or Far-infrared heater Cooling of Barrel Air cooling of fans through blowers Vacuum deashing exhaust Two Double-zone vacuum degassing system (Standard) Pelletizing type Water-ring pelletizing/ water-strands pelletizing/ Under-water pelletizing Voltage Standard According to the Voltage of the Customer's Location Optioanl device Metal detector, Roll hualing off device, Masterbatch and additives feeder Warranty 13 months from the date of bill of lading Technical services project design, factory construction, installation and recommendations, commissioning
Product DetailAceretech - Innovative research and design team with 20-year experience in plastic recycling industry.

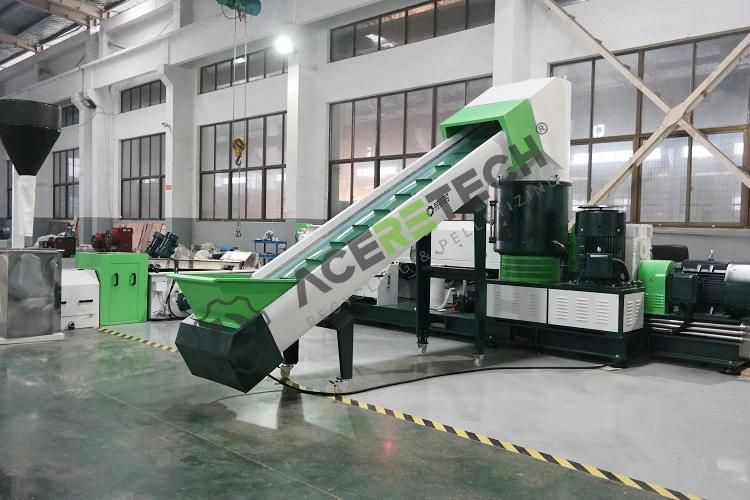

Feeding
As Standard Design, Plastic Scraps Such As Film, Filament, Raffias Conveyed Into The Compacting Room Through Belt Conveyor; To Handle Rolls' Scraps, Roll Hauling Off Device Is An Optional Feeding Method.Motor Drives Of Conveyor Belt And Hauling Device Cooperate With ABB Inverter. Feeding Speed Of Conveyor Belt Or Roll Hauling Off Is Fully Automatic Based On How Full The Compactor'S Room Is. Metal Detector Can Be Combined With Belt Conveyor And Can Interlock With Control System, To Warn And Stop The System, In Case That Metal Is Found In Feeding Section.

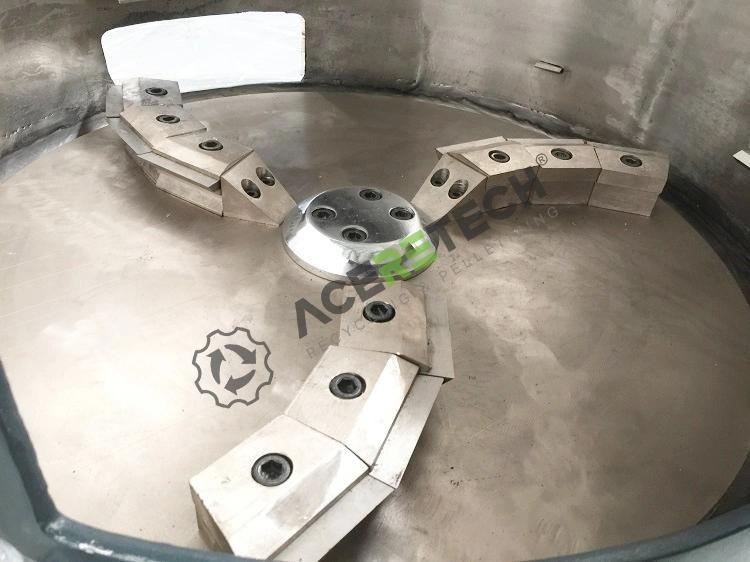

Crushing and compacting
The Rotatory Blades Of Compactor Will Cut Up Incoming Scraps. Frictional Heating Which Caused By High-Speed Rotatory Blades Will Heat And Let Scraps Shrinking Just Below Their Agglomerating Point. Optimal Designed Guide Structure Compacts The Material And Directs It Into Extruder Screw. Crushes, Dries, And Compacts The Material Which Enables A Fast And Stable Feeding From The Compactor Directly Into The Extruder.
Plasticization and degassing
A Specialized Single Screw Extruder Applied To Gently Melt The Pre-Compacted Material. The Plastic Scraps Will Be Well Melted, Plasticized In A 34D To 36D Processing Section. With Double-Zone Vacuum Degassing System, Volatiles Such As Low Molecular And Moisture Will Be Removed Efficiency, Especially Suitable To Heavy Printed Film And Material With Water Content.
Melt filtration
A Regular Single-Plate/ Piston Double-Station Screen Changer Or Non-Stop Double-Plate/ Piston Four-Station Can Be Installed On Head Of Extruder To Present Significant Filtration Performance. The Requirements On The Filter Echnology Depend Heavily On The Quality Of The Input Material As Well As The Planned Use Of Granules.

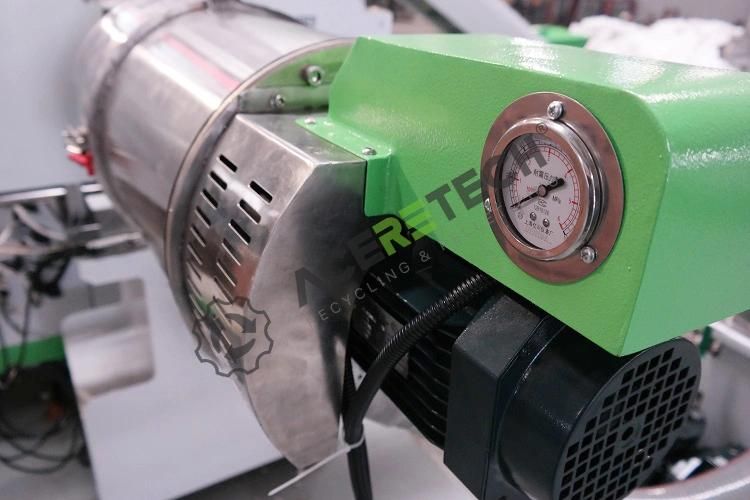

Pelletizing
Die-Face Water Ring Pelletizing System Set As The Standard Granulating Method In ACS-HTM System. Self-Adjusting Pelletizing Head For The Best Granulate Quality And Long Uptime Thanks To Consistently Correct Blades Pressure. RPM Of Rotatory Blades Is Automatic Based On Melt Extruding Pressure.

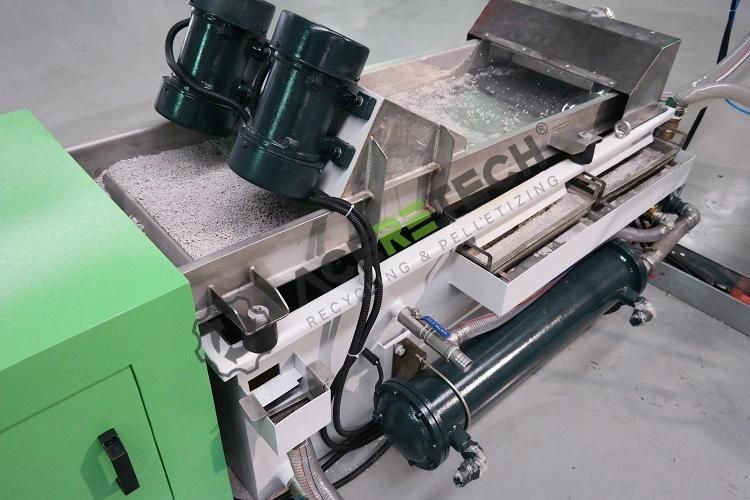

Vibration dry and packing system
Advanced Dewatering Vibration Sieve Combining With Horizontal- Type Centrifugal Dewatering Present High-Performance Dried Pellets And Lower Energy Consumption. Advantages Of ACS- HTM Compacting And Pelletizing System Combine Crushing, Compacting And Pelletizing Steps In One System, Less-Labor Cost; Higher Efficiency Feeding, Suitable To Film, Filament,Raffia, Foaming Materials; Higher Output And Lower Energy Consumption. Other Benefits Lower Investment Cost For A High Quality And Durable Machine; Low Energy Consumption With High Production Output; Fast Machine Delivery And Installation: Aceretech Produces On An Average Of 10 Sets Of Plastic Machines Per Month And Can Deliver The Machine Faster Than Most Manufacturers. The Regular Delivery Time Of An Aceretech Recycling Machine Is 30 Working Days. Service And Support Overseas Installation And Training Are Available; Machine Warranty With Spares In Stocking And In-Time Delivery.
Related Products
Innovative research and design team with 20-year experience in plastic recycling industry.
Would like to know about ACERETECH products, inquiry us now
Why Choose AceretechInnovative research and design team with 20-year experience in plastic recycling industry.
Jiangsu Aceretech Machinery CO.,LTD - Company Profile.
ACERETECH is a company specializing in the R&D and manufacturing of waste plastics recycling granulation equipment. The company combines recycling technology teams from Europe, Taiwan and the mainland, bringing the world's leading and mainstream recycling technology to all of our customers. And we always adhere to the people-oriented, integrity-based and technology-based. ACERETECH has successfully entered into strategic cooperation agreements with a number of European companies to help us manufacture high-standard, high-demand equipment in China.
Aceretech can provide the Washing and Pelletizing Turn-key Solution to all the customers. Please contact the professional sales team from Aceretech, they will provide you with customized solutions. All the design drawings and technical specifications can be provided according to your request. Installation, Testing, and Training Aceretech can supply the engineer to customers' factories for installation, testing and training according to your needs. It will facilitate a better integration for the new factory and new machine. The engineer can offer training lessons in customer's factory during the installation, the customer could also send their engineer to Aceretech for training. The technicist from Aceretech will introduce all the parts of operation and maintenance equipment for customers' engineer. Aceretech will supply a detailed instruction manual for all the customers, the operation will be more convenient. Before delivery, Acerectch will also support you dimension drawings, it will ensure your operators are fully prepared for production, improve operational efficiencies. For this issue, please contact with the sales from Aceretech to arrange on-site work.
Typical products manufactured by ACERETECH are: High capacity performance Plastics Agglomerating and Re-granulating line for material of small bulk-density, Single-screw Extrusion and pelletization line with diameter-reducing screw structure for regular capacity but energy-saving demands, Single-screw extrusion and pelletization line for rigid waste plastic scraps, Twin-screw extruder, Shredders ans Granulators. Advantages of ACERETECH: 1. Innovative research and design team with 20-year experience in plastic recycling industry. 2. Complete sales system covering pre- and after-sales service. Engineers are available for commissioning work abroad. 3. Professional sales team with local language speaking ability of English, Spanish, Turkish and Russian.Would like to know about ACERETECH, inquiry us now.
FAQInnovative research and design team with 20-year experience in plastic recycling industry.HOW TO FIND KING MACHINE?
Search Alibaba, Made in China, Google, Youtube and find suppliers and manufactrue and not traders
Visit exhibition in different countries
Send King Machine an request and tell your basic inquiry
King Machine sales manager will reply you in short time and add instant chatting tool
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
If we can fullfill your request and you interested in our products, you may pay a visit to our site
The meaning of visiting supplier, because seeing is believing, we with our own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
By letter of credit, you can lock the delivery time easily.
After the factory visit, You can ensure the facticity of our bank account.
HOW TO ENSURE THE QUALITY!
In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have
accumulated professional processing methods over the past years.

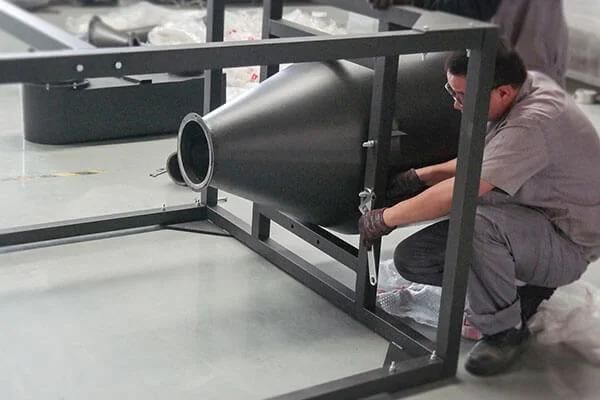

Each component before assembly needs strictly control by inspecting personnel.
