• Model NO.：LX700W-SE-1
• Engagement System：Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Transport Package：Container
• Trademark：LXPLASTICS
• Origin：China
• HS Code：84772090
• Production Capacity：12 Set,Year

                                    ConfigurationExtruder  Operation Console and electric cabinetHorizontal type Calendar of three rollersHydraulic station for screen chargerscrap re-winder /in-line scrap grinderHaul-off unit360 degree Rotation Double re-winderTraveling Crane Double re-winderIndividual motor for each rollerT-DieTouch screen for setting temperatureMelt pump with pressure sensors

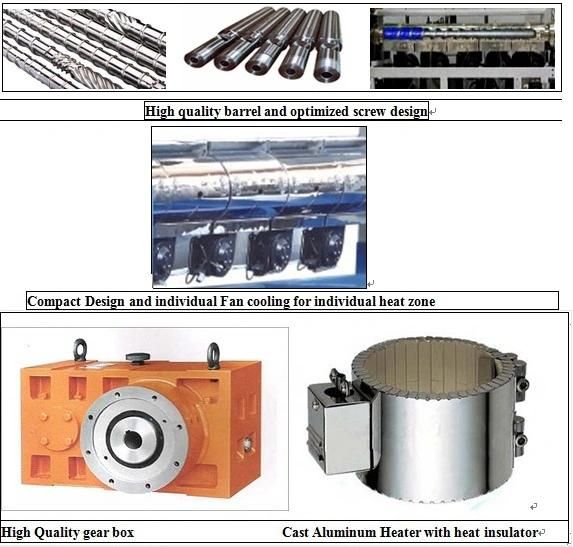

1.Extruder
a-  Output: 150kg/h-300kg

c-  Material of screw and barrel: 38CrMoAlA high quality alloy steel, nitriding 0.4-0.5mm
d-  Diving motor:55kw, frequency inverter 55kw.      ,

• Heating :30 kw, 6kw*5 heating zones on barrel,air cooling by blowers, 0.05kwx5
• Cast Aluminum Heaters,more even and relaible heating with heat insulator
• Cooling in Gear box,12.5:1

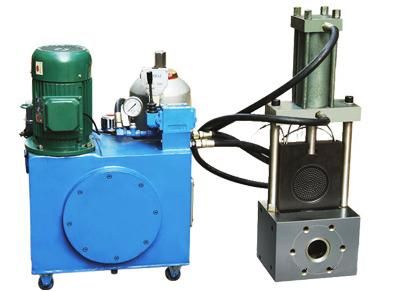

2.Screen charger
a-  Material : 38CrMoAlA high quality alloy steel , nitriding
b-  Hydraulic charger ,Tow performance station,motor :1.5kw
c- Screen Heating Power.3.5kw   , flow channel heat  3kw

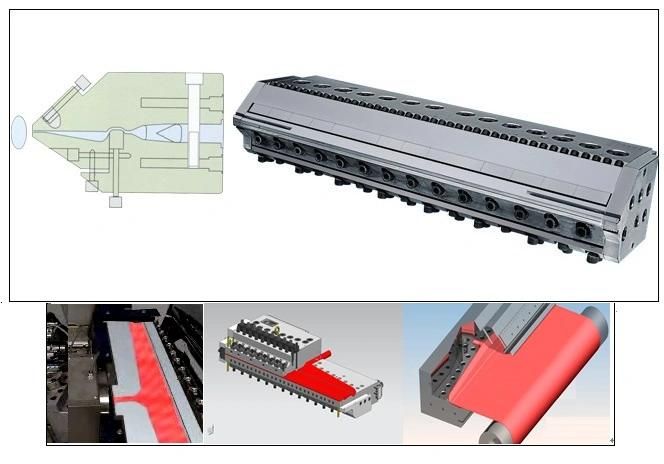

3. Die
b-  width,800mm ,adjustment range 0.15-2.5mm
c-  Material: carbon constructional quality steel  chrome-faced chromized coating
d-Heating :5 kw* 3 zones
e-Structure  :T-shaped ,Clothes bracket flow channel, polished inner mold surface.

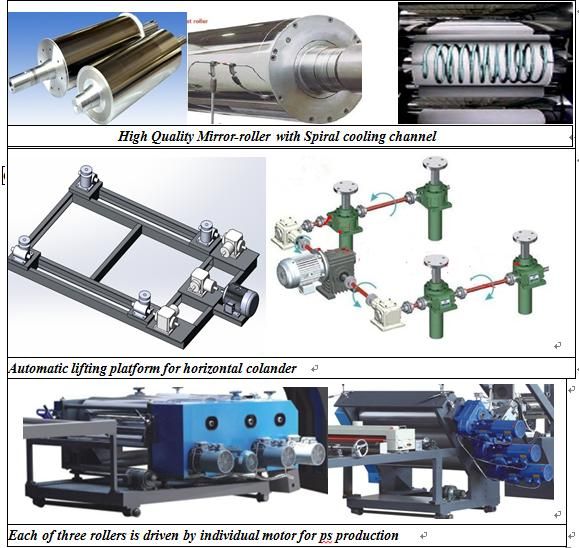

4. Calander of 3 rollers

• Mirror face,Spiral cooling channel
• thickness adjusted by screw , position adjusted by motor 1.5kw
•
• Individual motor drive for each roller
• Motor,2.2kw Frequency converter control ,2.2kw, Frequency Inverter
• Motorized adjustment of height of calander
• horizontal type calander for lower thickness of sheet making



5.Haul-off unit
a-  Ф50mm×1200mm
b-  Motor:2.2kw, frequency converter control,2.2kw , Frequency Inverter ,
c-  Haul-off length 2000mm

• Scrap Rewinder:0.75kw*2

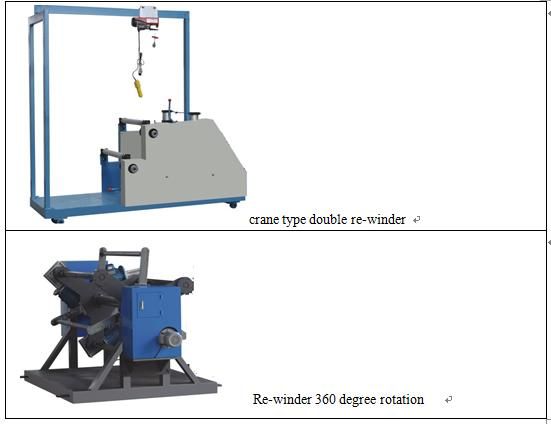

6.double rewinder
a-  Max.sheet roller diameter  650mm, 300kg each roller
b-  2* torque motor for rewinder
c-  360 rotation for 2 stations of rewinder



7. control
a-  Temperature rises or lowers by increasing or decreasing voltage.
b-  Temperature controller with Solid state relay .
C-Cast Aluminum Heaters ,more even and relaible temperature control
d-independent electric cabinet .
