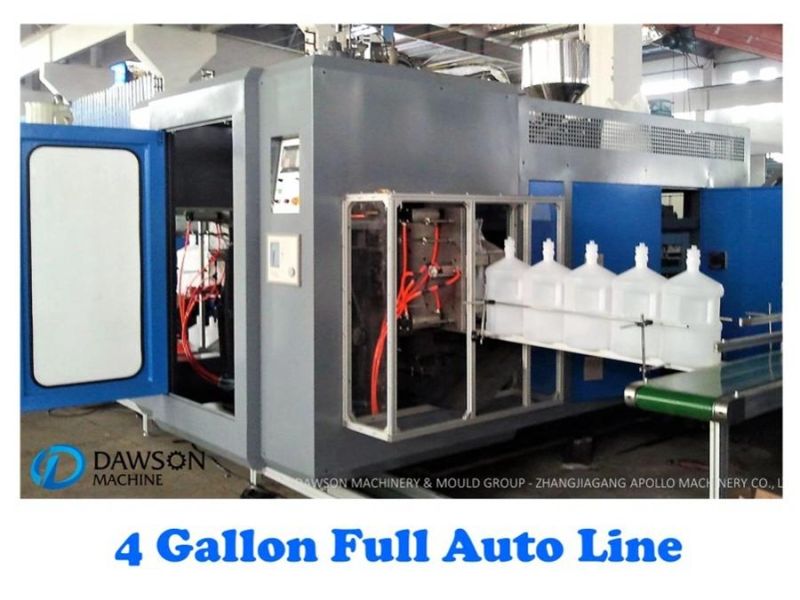

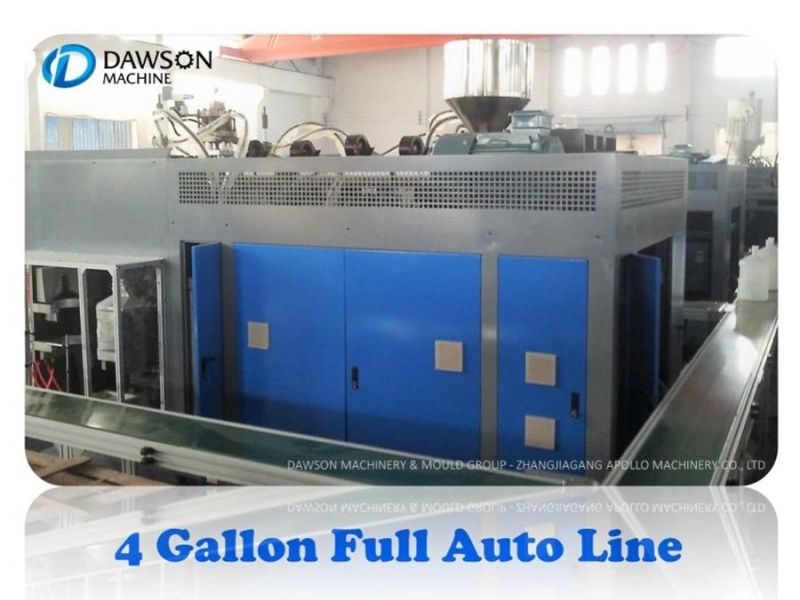

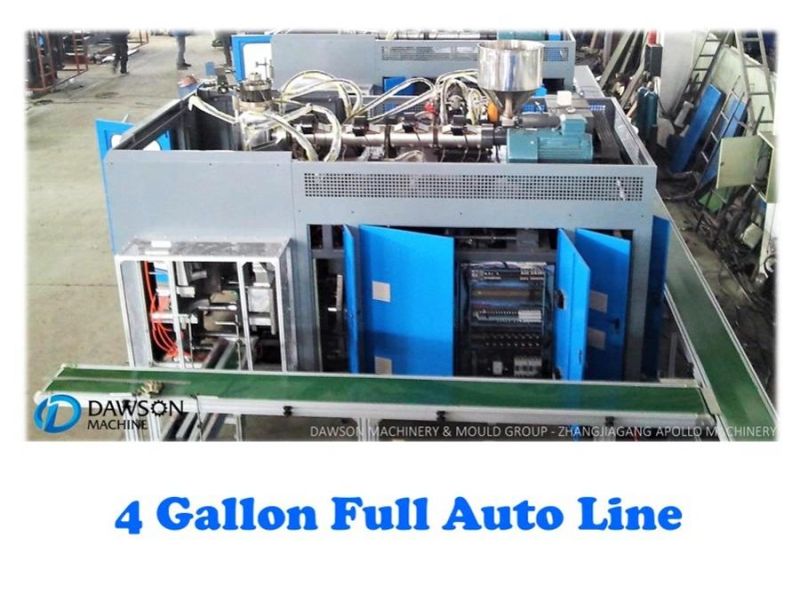

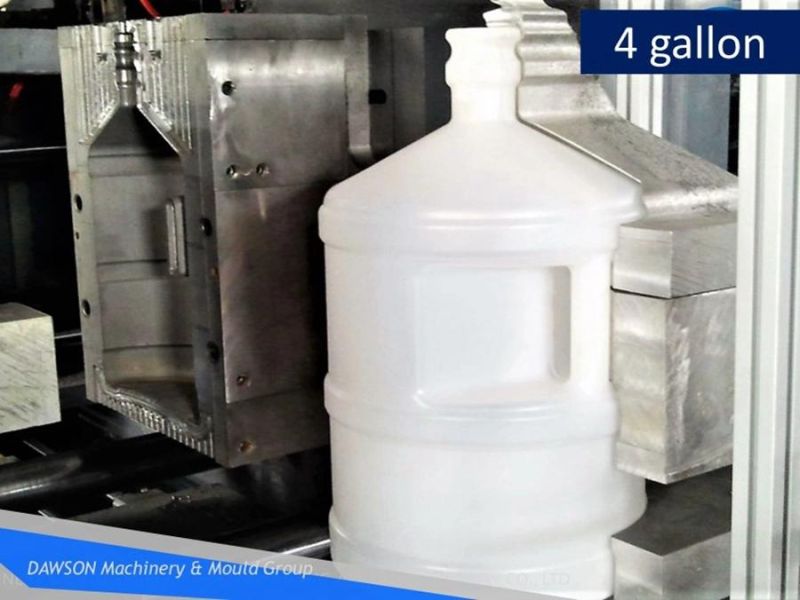

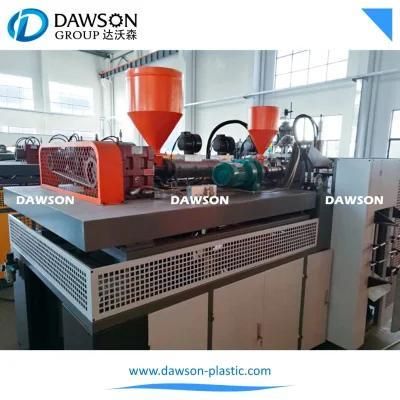

HDPE 4L Gallon High Quality Auto-Deflashing Blow Moulding Machine

Zhangjiagang Dawson Machine Co., Ltd.
  • Type：Extrusion Blow Molding Machine
  • Raw Material：HDPE
  • Making Method of Parison：Extrusion-Blow Molding
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE

Base Info

  • Model NO.：ABLB90II

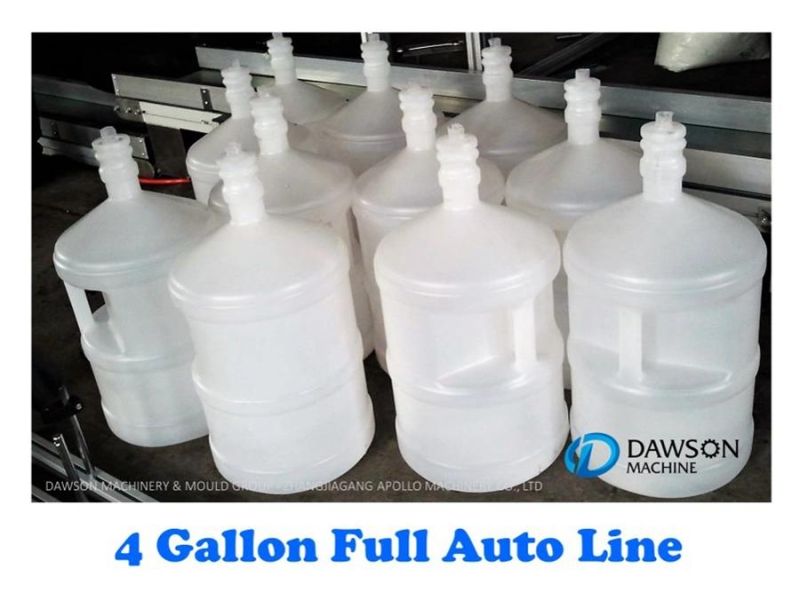

  • Application：Bottles, Jars, Jerry Cans, Gallons, Containers
  • Station：Double Station
  • Die Head：Single Head
  • Max. Product Volume：20L
  • Auto-Deflashing：with Auto-Deflashing
  • Clamping System：Toggle Type Clamping System

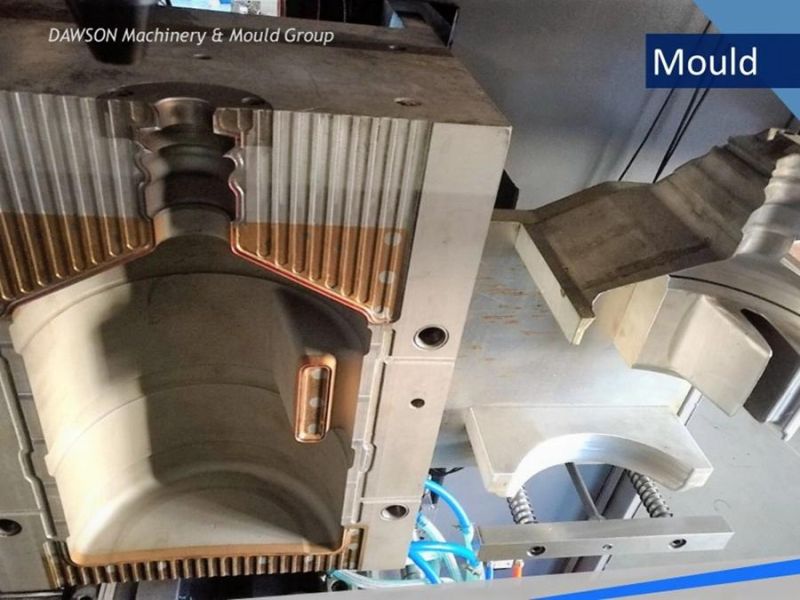

  • Mould：One Cavity
  • Suitable Material：HDPE,PP,PVC,PS,PETG,LDPE
  • Sutiable：10~20L Bottle
  • Made in：China
  • Plasticization：130kg,H
  • Weight：8.2 T
  • Extrusion Motor：Three Phase Asynchronous Motor (380V,50Hz)
  • Max Die Mouth：180mm
  • Extrusion Heating Power：5~7kw
  • Transport Package：Film Packing
  • Specification：ABLB90II
  • Trademark：DAWSON
  • Origin：Jiangsu Zhangjiagang
  • HS Code：8477301000
  • Production Capacity：180~200 PCS,H

Description

Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system Cooling mediumWater Water flow90L/min Water pressure0.3-0.6MPa HDPE 4L Gallon High Quality Auto-Deflashing Blow Moulding Machine
