• Model NO.：HSD
• Condition：New
• Pipe Diameter：1000-1200mm
• Pipe Color：Black + Yellow or Blue
• Extrusion Process：Multi-Layer Extrusion
• Calibration Method：Vacuum
• Transport Package：Standard Package for Export
• Specification：ISO9001: 2008, CE
• Trademark：Huashida
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：20 Sets

Basic Info.

Model NO. HSD Condition New Pipe Diameter 1000-1200mm Pipe Color Black + Yellow or Blue Extrusion Process Multi-Layer Extrusion Calibration Method Vacuum Transport Package Standard Package for Export Specification ISO9001: 2008, CE Trademark Huashida Origin Qingdao, China HS Code 8477209000 Production Capacity 20 Sets

Product Description

Polyethylene Pipe Extrusion Machinery Water Supply Pipe Extruder

HDPE pressure Pipe Extrusion Line is a pipe extrusion line developed by HSD company through assimilating the master technology  from Europe.

Application of HDPE pressure pipe

Plastic Pipes produced by this line have excellent stiffness, flexibility, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage and so on. It has become the first choice for the city gas pipe, water supply pipe, foundation pipe, landfill collection pipe, watermain, geothermal heating etc.


Structure of HDPE pressure pipe extrusion line:

HDPE pipe extruding line composed of single screw extruder and corresponding auxiliaries, can produce all kinds of small diameter HDPE plastic pipes continuously. It also can be used to produce PS, PP, HDPE plastic pipes after replacing the screw. HDPE plastic pipe is widely used for liquid conveying in agricultural, chemical industry, construction industry, etc.

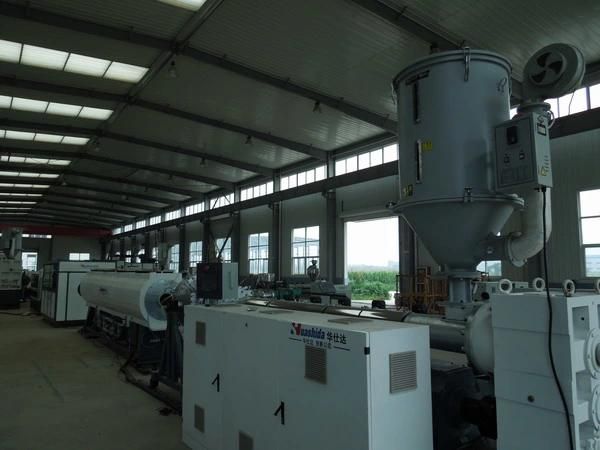

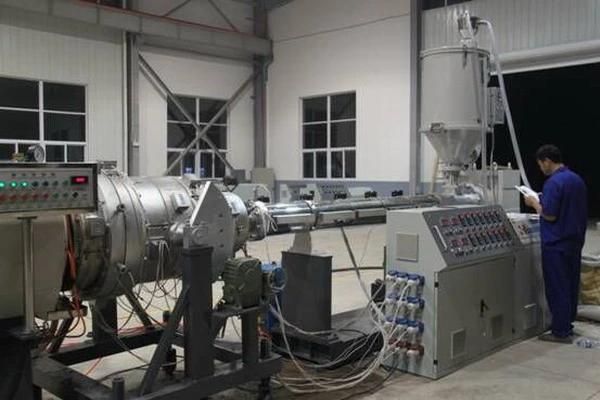

HDPE pipe extruding line is mainly composed of single screw extruder, die-head, vacuum forming tank, spray cooling tank, haul-off device, cutting device, and pneumatic discharging frame.

1. Single Screw Extruder
Single screw extruder is composed of AC motor, hard toothed surface reduction gear, extruding system, heating and cooling system, and electrical controlling part.

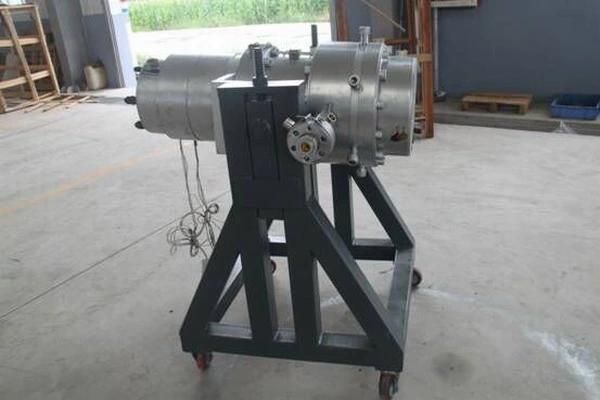

2. Die-Head
Die-head is mainly composed of mandril, neck mold, spiral body, cover, die-head body, bolts, and heating rings. The inside surface touching with plastic materials is polished and chrome plated to ensure plastic materials flow smoothly and to ensure no rusting.



3. Vacuum Forming Tank
Vacuum forming tank is mainly composed of frame, stainless steel tank, vacuum system, spray cooling system, back and forth mobile device.


4. Water Cooling Tank
Water cooling tank is mainly composed of frame, stainless steel tank, and spray cooling system. Spray cooling system is used to cool down the pipe further and to realize cooling completely and forming.

5. Caterpillar Haul-off Machine
Haul-off machine is mainly composed of driving device, haul-off chain caterpillar, clamping structure, adjusting system, side plate, and foundation bed.

6. Discharging Frame
The table surface is made of stainless steel. It adopts pneumatic overturn and discharging automatically.

Qingdao Huashida Machinery Co., Ltd is a professional plastic extrusion production line manufacture since 2003.  The factory covers the area 34000 square meter Our products such as HDPE pressure pipe for gas or water transmission, structural wall pipe extrusion line, corrugated pipe extrusion line . The products have been exported to Middle East, Russia, Africa. Turkey, Korea.

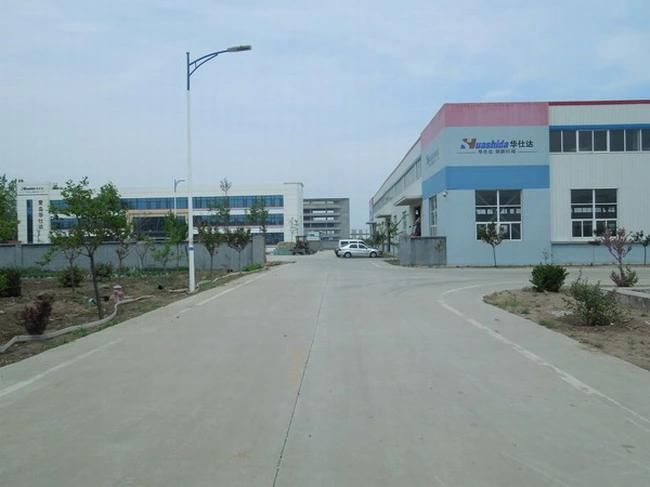

Our factory locates in Cheng yang Industrial area, Qingdao ,Shandong Province.  we have been approved and got certificate ISO90001:2008 by SGS. All the customers are welcome to visit the factory.
