• Model NO.：FB-K-600
• Automation：Non-Automatic
• Computerized：Non-Computerized
• Machine Weight：4300kgs
• Certification：CE, ISO9001:2008
• Suitable Material：PE
• Output：40kg,H
• Die Size：80mm, 120mm
• Transport Package：Wooden Package
• Specification：7500*2000*3200mm
• Trademark：HOIN
• Origin：Ruian, Zhejiang, China
• HS Code：8477309000
• Production Capacity：30 Sets,One Month

MODLEFB-K-600FB-K-800FB-K-1000Suitable materialLDPE LLDPE   HDPELayfat width of film(mm)6008001000Thickness of film(mm)0.01-0.10Max.extrusion output40kg/h50kg/h60kg/hScrew dia(mm)Φ50Φ55Φ60Screw L/D28:1Main motor(kw)111518.5Dia of   orifice(mm)Φ80/Φ120Φ80/Φ160Φ120/Φ220Printing   length(mm)250-1000250-1000250-1000Precision   of color printing(mm)0.20.20.2Tota power(kw)103640Weight (T)4.356.2Dimension LxWxH(M)7.5x2x3.28x2.4x48.5x2.6x4.63.Spare Part List:

01	filter	1 M	08	electric -testing pen	1 pcs
02	magetic stone	1 pcs	09	hexageonic wrench	1 pcs
03	air pipe	1 pcs	10	glove	2 pairs
04	8-10 open and wrench	1 pcs	11	Steady Bar	1 pcs
05	12-14 open and wrench	1 pcs	12	Mould Pipe	1 pcs
06	14-17 open and wrench	1 pcs	13	electric-thermal couple (E)	2 pcs
07	17-19open and wrench	1 pcs	14	screw heater(stainless steel)	1 pcs

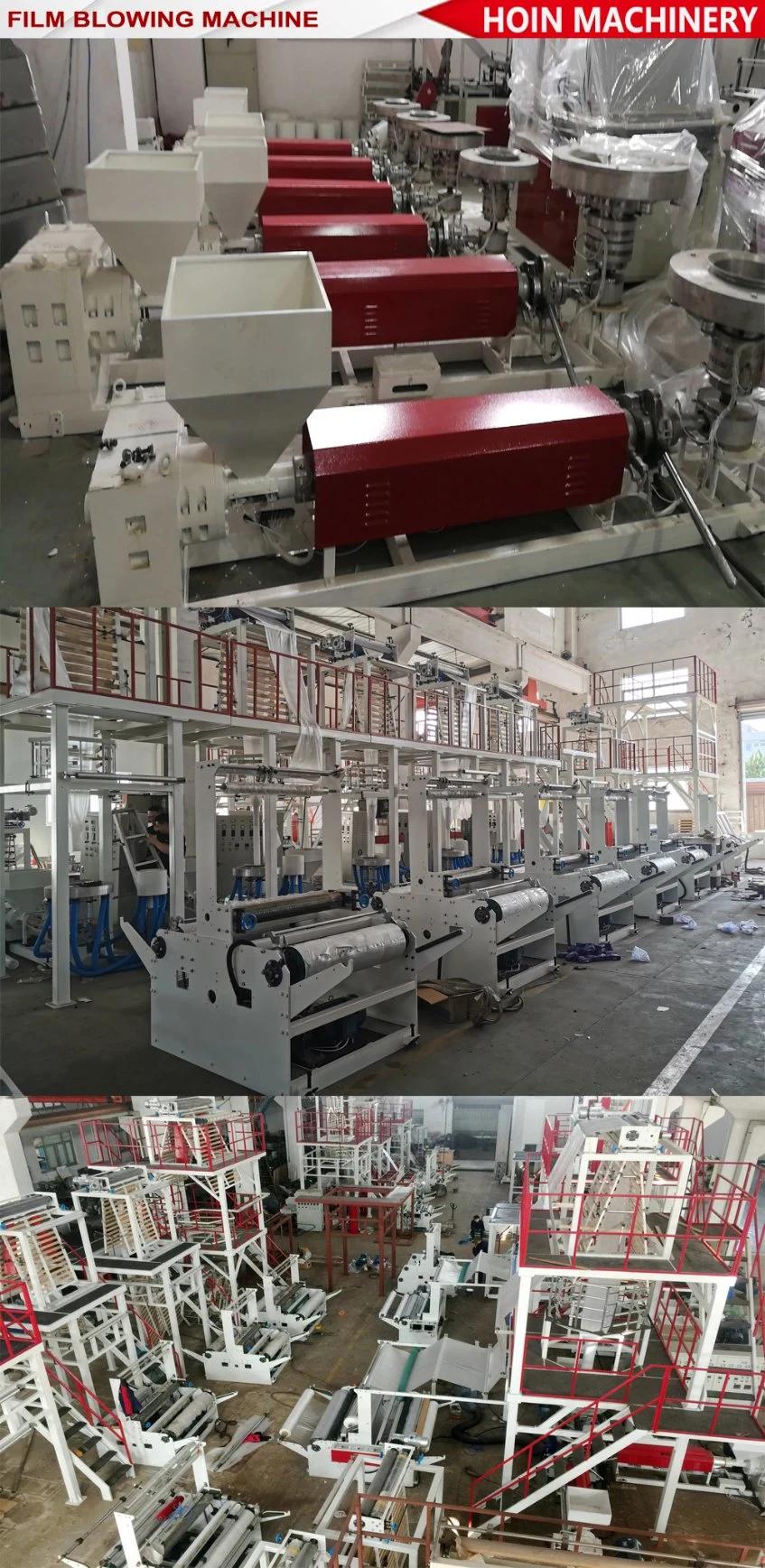

4. Machine Pictures for Reference:
5. Workshop of HOIN

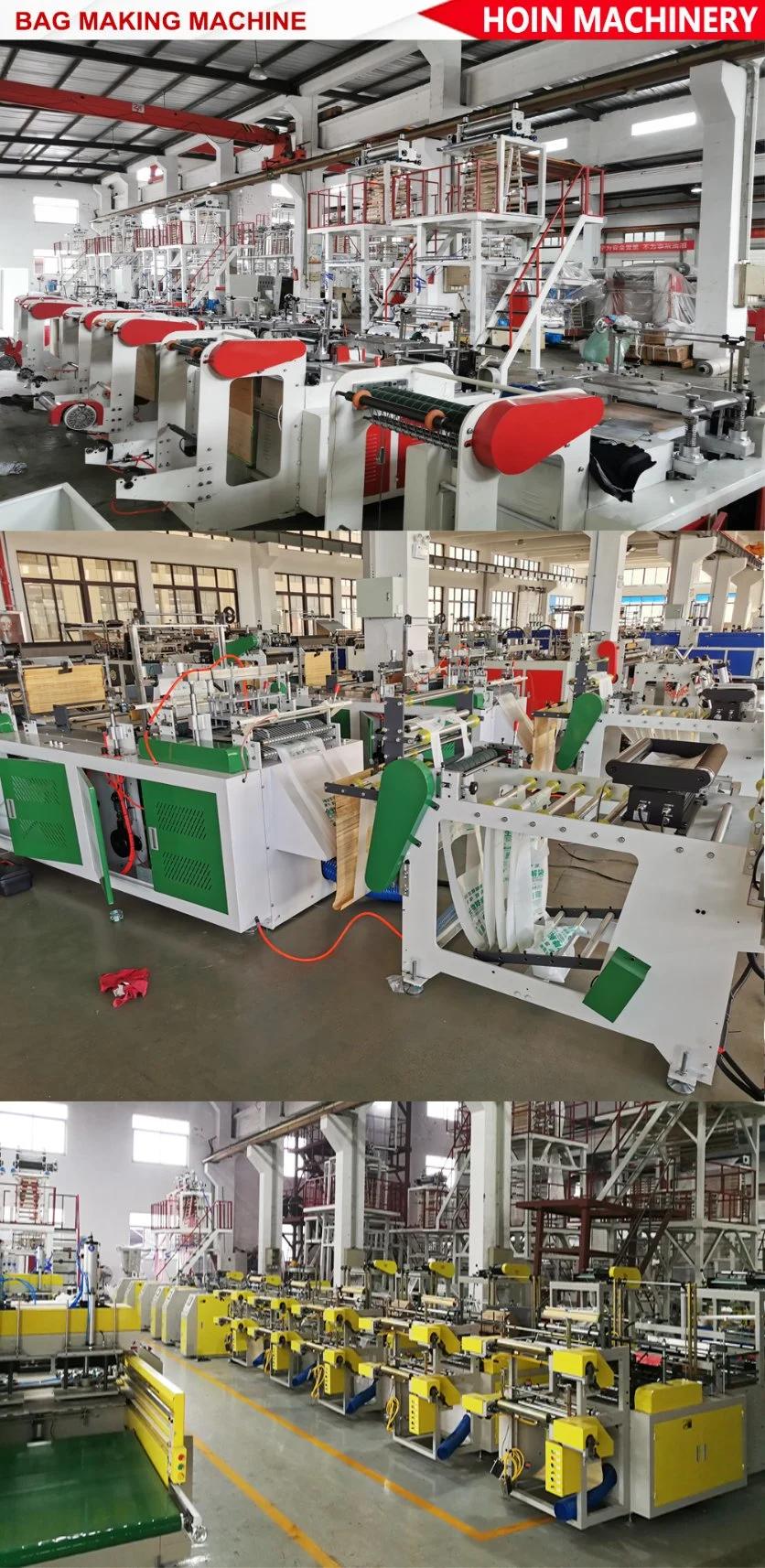

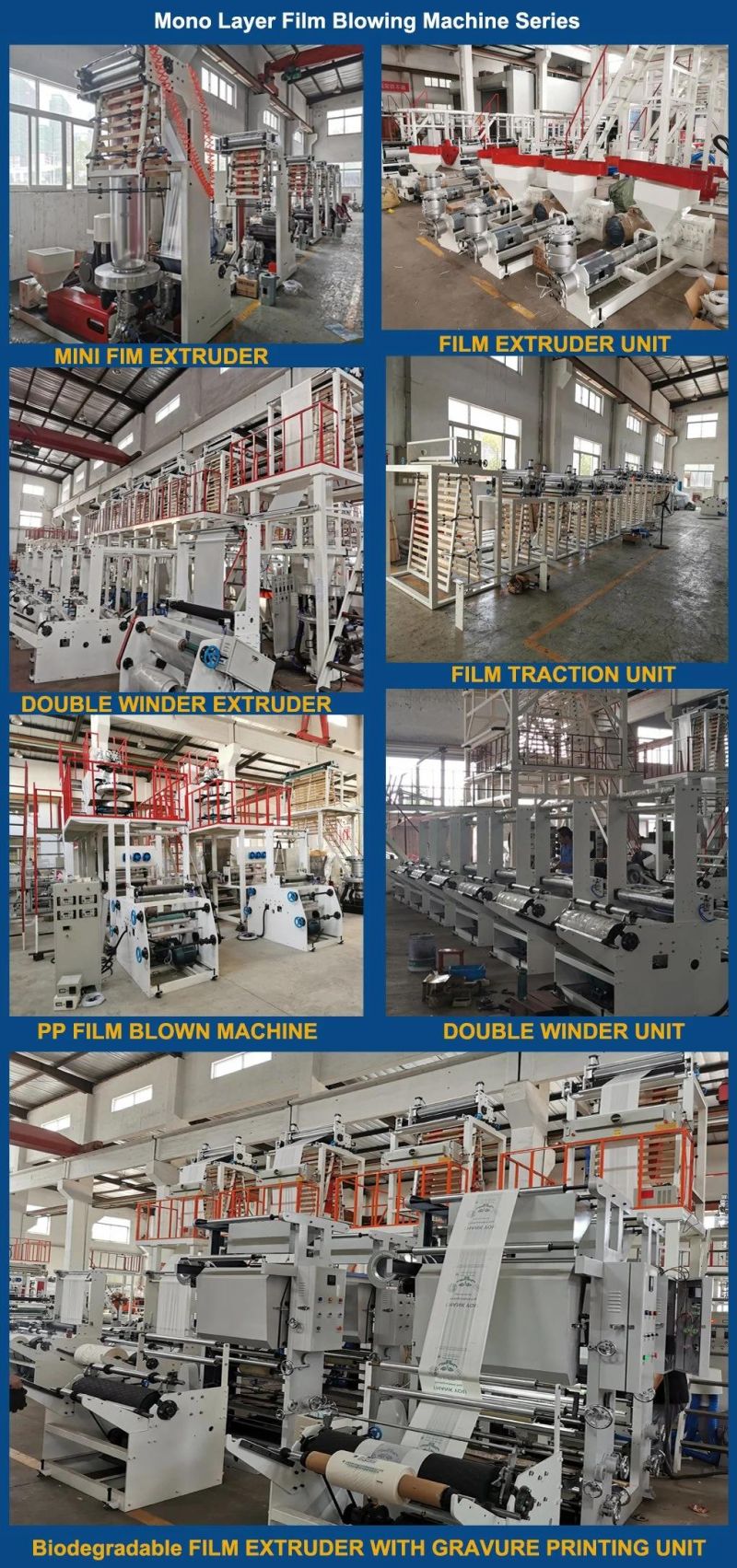

6. More Products Optional:
7.After Service of HOIN:
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.

Any query please feel freely to contact with us!
