• Model NO.：CNMC-E2
• Heating Power：3 000 W Each Side
• Voltage：230V 1-pH , 400V 3-pH
• Driven Mode：Pneumatic
• Heating Hose Power：1000 W ,15 Meters
• a and B Chemical Output Ratio：1:1 (Fixed)
• Max, Output Pressure：20 MPa
• Max. Chemical Output：14 Kg,Min
• Air Source：0.5 -0.8 MPa >=0.9m3
• Max Hose Support：90 Meters
• Maximum Fluid Temperature：88 ° C (190 ° F)
• Transport Package：Wooden Case
• Specification：770mm*560mm*1350mm
• Trademark：CNMC
• Origin：Shandong, China
• HS Code：8477409000
• Production Capacity：100 Set,Sets Per Month

Basic Info.

Model NO. CNMC-E2 Heating Power 3 000 W Each Side Voltage 230V 1-pH / 400V 3-pH Driven Mode Pneumatic Heating Hose Power 1000 W /15 Meters a and B Chemical Output Ratio 1:1 (Fixed) Max, Output Pressure 20 MPa Max. Chemical Output 14 Kg/Min Air Source 0.5 -0.8 MPa >=0.9m3 Max Hose Support 90 Meters Maximum Fluid Temperature 88 ° C (190 ° F) Transport Package Wooden Case Specification 770mm*560mm*1350mm Trademark CNMC Origin Shandong, China HS Code 8477409000 Production Capacity 100 Set/Sets Per Month

Product Description

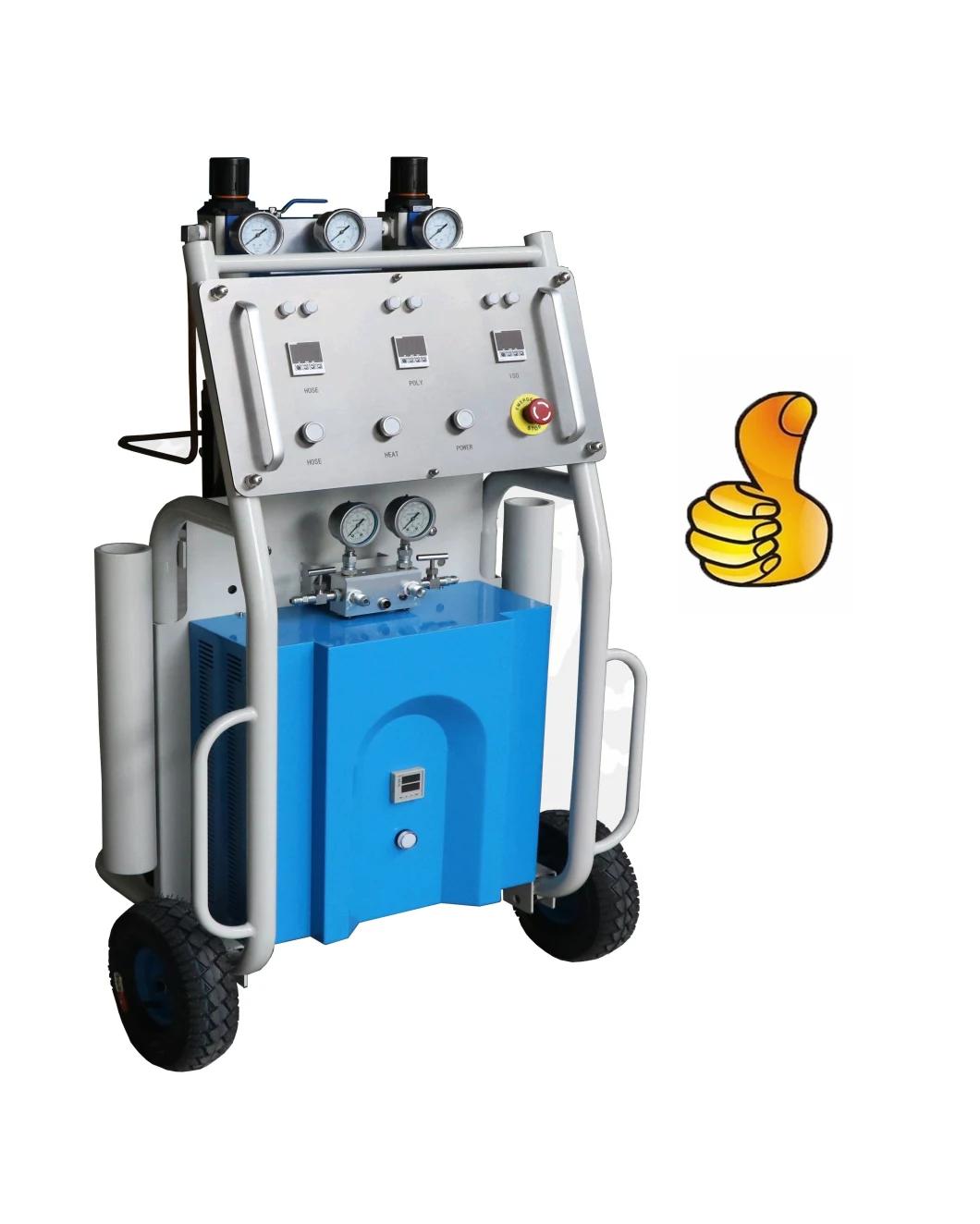

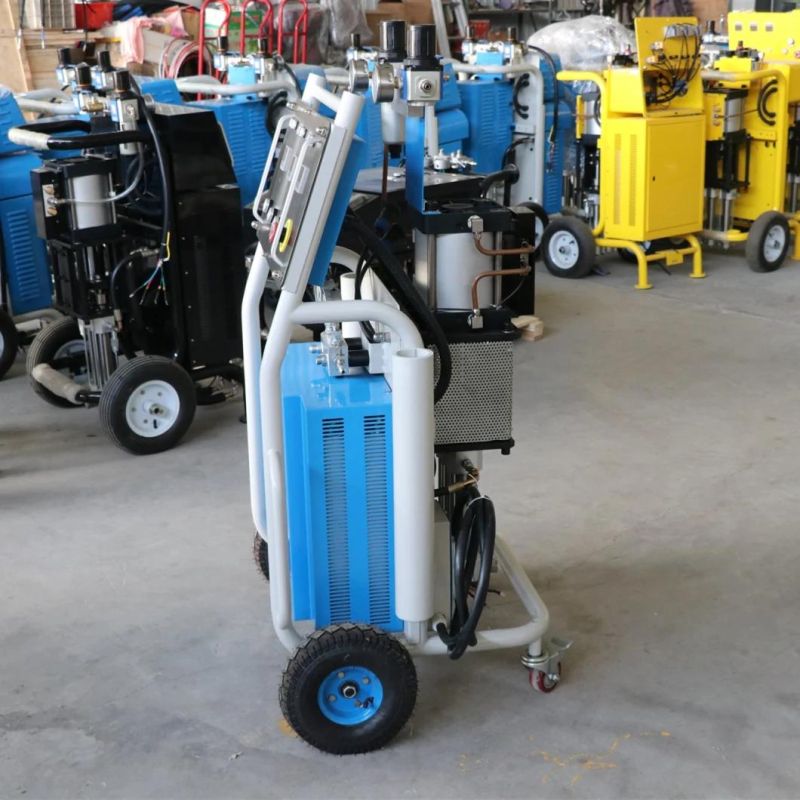

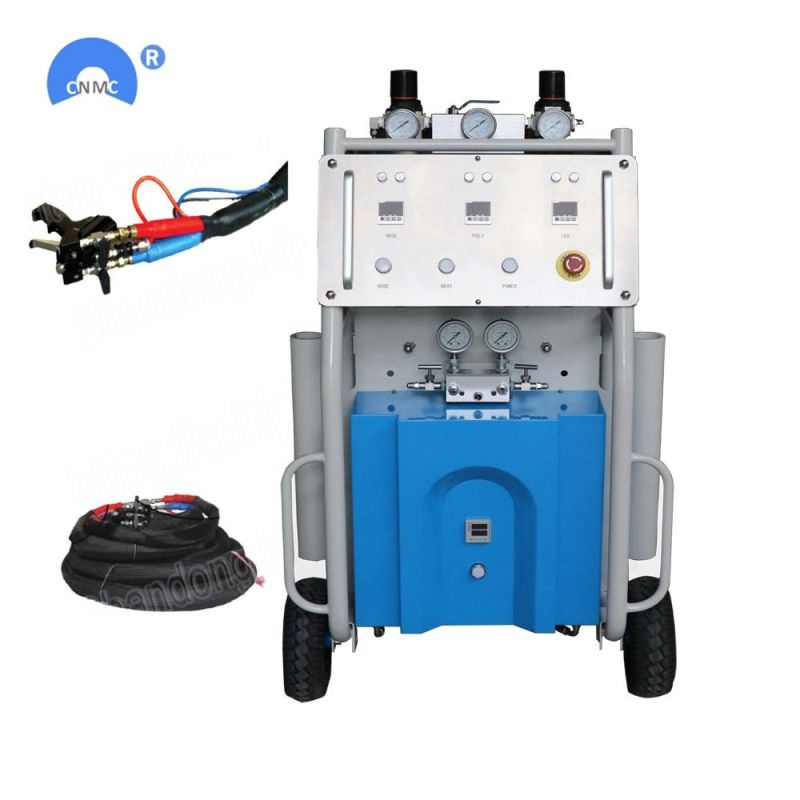

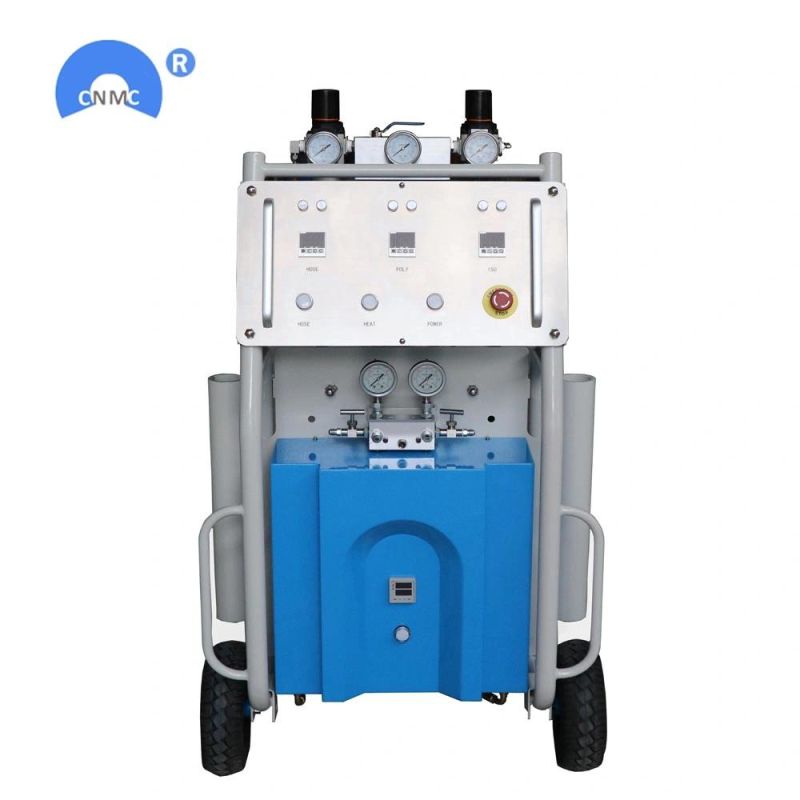

Pneumatic Polyurethane Spray Foam Machine

Product description

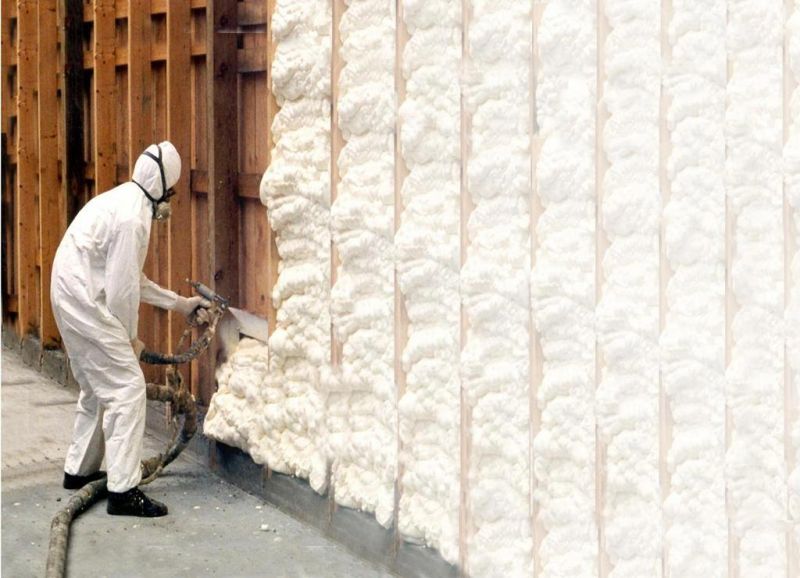

The new CNMC-E2 air driven proportioning unit is of an advanced and compact design.It is specially amed at the applications of polyurethane foamin place.Its particular configuration facilities easy access to all its components,simiplifies the control functions ad signficantly reduces the maintenance work.

Feature

•Primary Heating Systerm

The primary heating system consists of two separate independent block heaters with no seals.

•Proportioning Pumps

The system is including two positive displacement piston pumps,driven by a pneumatic motor.

•Recirculation System

Recirculation of the two components allows a faster achievement of the preset temperatures at the heaters before starting to spray and during temporary shutdowns.

•Hose Heating System

The hose heating system is designed with 1000 w each 15 meter that allows the heating of up to 90 m.

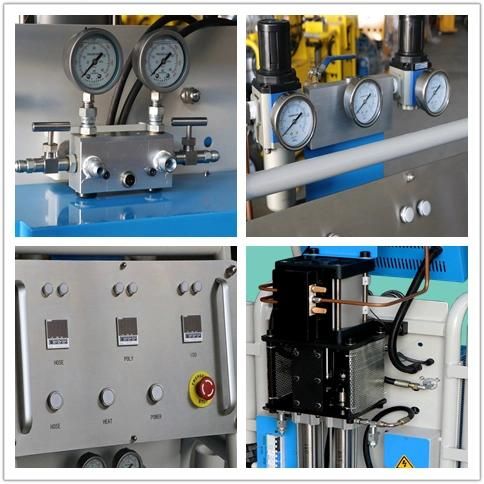

Details Image





Parameter

Project	CNMC-E2  project polyurethane spraying machine
Fixed host configuration	1 set
Self-cleaning spray gun	1 set
Gross weight	250KG
Feed pump	2 sets
Heated hose	49.2 ft (15 m)
Data ratio of raw materials	1: 1 (fixed)
Raw material viscosity range	200-1000CPS (at working temperature)
Working pressure	17 MPa (170 bar)
Maximum Fluid Temperature	88 ° C (190 ° F)
Maximum output	10 kg / min (22 lb / min)
Each heater power	3000W
Heating hose power	1000W / 15m
Total power	7500W
Voltage	230V 1-ph / 400V 3-ph
Machine size	770mm*560mm*1350mm
