2000L Plastic Pallet Blow Molding Machine

Qingdao Weier Plastic Machinery Co., Ltd.
  • Type：Extrusion Blow Molding Machine
  • Raw Material：PE
  • Making Method of Parison：Extrusion-Blow Molding
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008

Base Info

  • Model NO.：SLZK-2000
  • Machine Name：2000L Plastic Pallet Blow Molding Machine
  • Screw Diameter：130mm
  • Screw L/D Ratio：28:1
  • Capacity of Accumulator：350L
  • Main Oil Pump Motor：55kwx2
  • Servo Motor：15kw
  • Application：Water Tank, Plastic Pallet, Toy, Road Block, Drum
  • Dimension：13X11.5X10.5m
  • Weight：210t
  • Warranty：12months
  • Transport Package：Export Packing
  • Specification：2000L
  • Trademark：WELL
  • Origin：Rushan, Weihai City
  • HS Code：84772090
  • Production Capacity：10 Set,Month

Description

               7*4*59.6*5*6Total power installed210239281Average power consumption120143168Weight202433

Output for plastic water storage tank blow molding machine as follows:

 Capacity Output Unit Weight Wall Thickness
200 L Tank18-20  PC/H3-4.5 KG 2-2.5 MM
300 L Tank18-20  PC/H4-5 KG  2-2.5 MM
500 L Tank16-18 PC/H6-10 KG  2.5 MM
750 L Tank14-16  PC/H 10-15 KG 2.5-3 MM
1,000 L Tank10-12 PC/H 16-20 3-3.5 MM
1,500 L Tank 9-11 PC/H 20-30 3-3.5 MM
2,000 L Tank 8-9 PC/H 30-40 3-4 MM
3,000 L Tank 5-6 PC/H 50-60 4-5 MM
5,000 L Tank 3-4PC/H 70-85 5-6 MM
10,000 L Tank 2PC/H 150 7-10 MM
20,000 L Tank1.5PC/H200-23012-15 MM

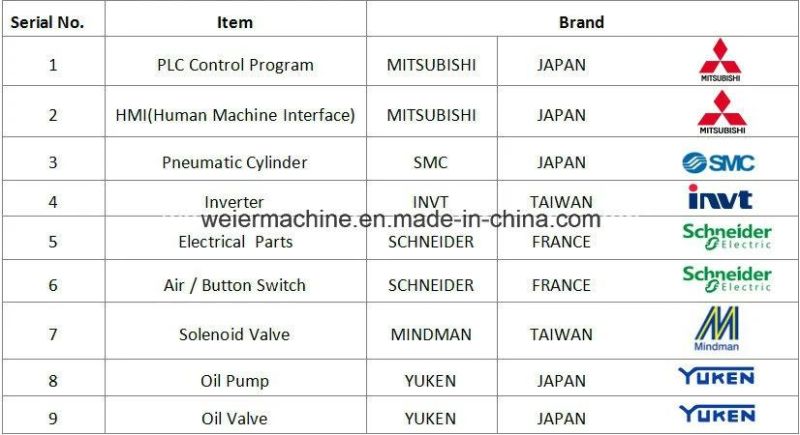

Parts and Brand for your reference
2000L Plastic Pallet Blow Molding Machine
After -sales  service

Installation

The Seller will dispatch two engineers against the requests of the Buyer to install and adjust the machine for 10-15 days in the Buyer's factory.

The Buyer need to inform the Seller 15 days in advance.

The Buyer should pay for the two engineers visa application cost, round- tickets, food & accommodation before their departure.

Training

The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;

Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory in the periods of installing & adjusting;

The training is free of charge.

Guarantee

The guarantee time is one year after the machines normally works in the Buyer's factory, if only the problem is cause due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you how to solve the problems.

Any problem caused due to irregular operation or incorrect maintenance by the Buyer won't be listed in guarantee coverage.
