PE WPC Co-Extrusion Outdoor Decking Making Machine Production Line Manufacturer
Qingdao Tongsan Plastic Machinery Co., Ltd.- After-sales Service：Engineer Oversea Service
- Warranty：12 Month
- Product Type：PE WPC Profiles
- Screw：Double-Screw
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：SJMS65,132
- Certification：CE
- Customized：Customized
- Raw Material：Waste PP,PE +Wood Powder
- Products：PP PE WPC Profiles
- Capacity：160-240kg,H
- Application：Outdoor Lanscapes
- Main Motor：Siemens
- Inventer：ABB
- Contactor：Schneider
- Temperature Controller：Omron
- Transport Package：Sea Worth Package
- Specification：SJMS65,132
- Trademark：HEGU
- Origin：China
- HS Code：84772090
- Production Capacity：160-240kg,H
Description

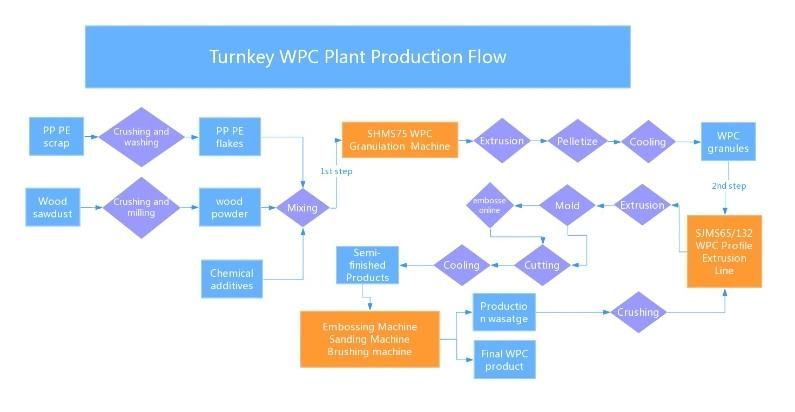

raw material--mixing--granulation--extrusion and molding--surface treatment
Machine Images

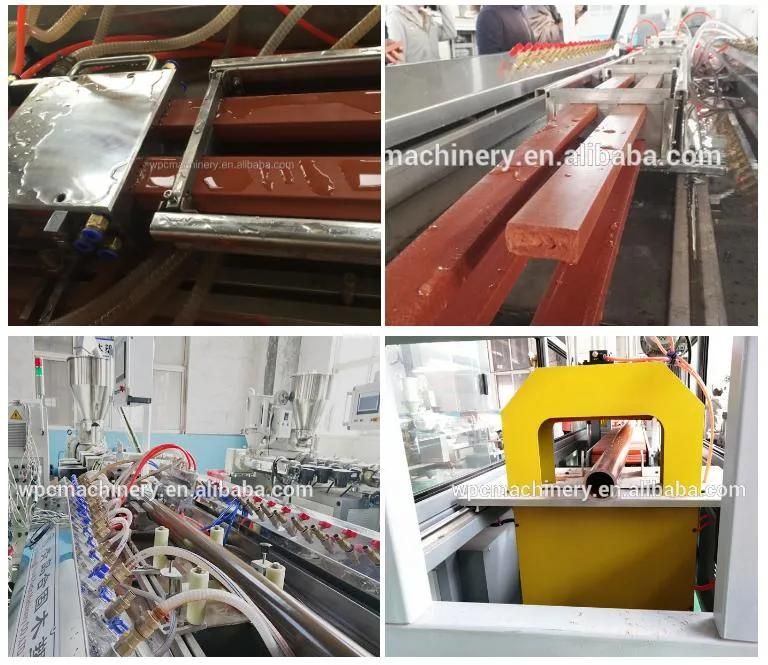

HGMSE series PP/PE WPC profile production line can continuously produce PP/PE WPC profile. The WPC profile adopts two -step production process. The granulating machine make WPC pellets using PP/PE recycled materials, wood powder and auxiliary agent. Then use this production line produce WPC profile.Customers can choose embossing machine for the production line to achieve 3D pattern performance.Customers can also make PE WPC single color or double color co-extrusion profile by adding extruders.The profile produced by this production line can be sanded and brushed by sanding machine and brushing machine.
SHMS series granulating machine is used for making WPC pellets. The WPC pellets produced by WPC granulating machine can used for making WPC product using WPC machine.The granulating machine consists of parallel double-screw extruder,water cooling system, a granulator and air conveyor cooling system.The feeder and hopper are equipped with mixer to prevent the material blocked up.If customer do not have strict requirements about the appearance of pellets, the granulator can be removed.The pellets extrude by extruder directly, then go for crusher. Can improve the production capacity.
Product: WPC decking, WPC wall cladding, WPC fence, WPC pergola..

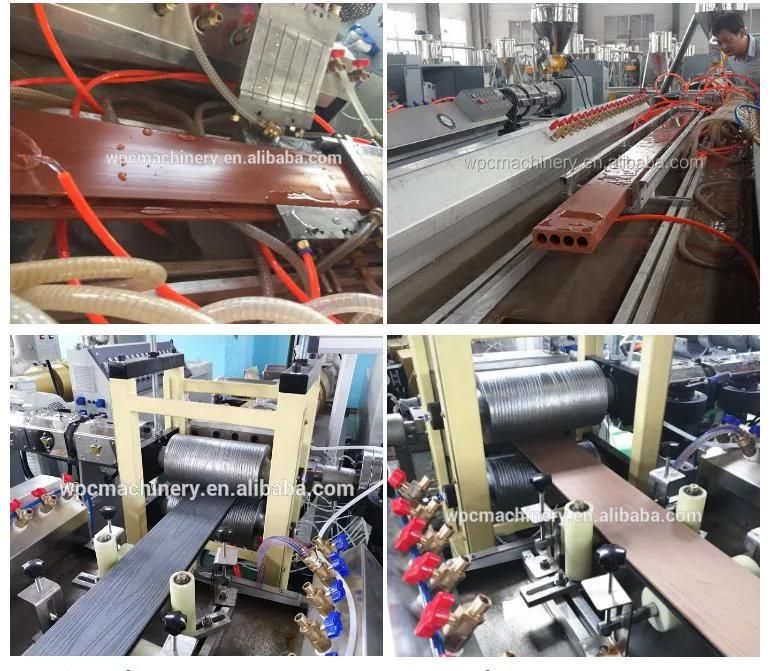

The WPC profile extrusion line can make WPC granules into WPC products by equipping required mold, we can equip co-extrusion system and online 3D embossing device for making WPC products in high quality with wooden grain, the line also equipped with online cutting device.

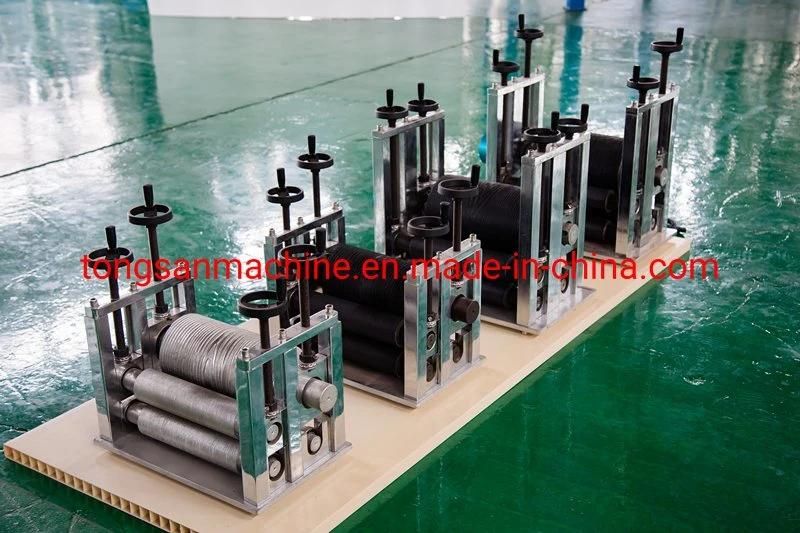

We have high quality Online embossing device.it can do amazing 3D embossing design
WPC product wood surface making machineEmbossing machine, sanding machine, brushing machine, online embossing machine. these machines is for making WPC products with better wooden feeling design.
WPC sanding machine
This machine is used for fixing the size of single extrusion WPC product and doing surface treatment
WPC brushing machine
This machine is used for brushing the WPC product. To do the different surface on WPC product by changing the brushing roller and sanding roller
WPC brushing and sanding machine
This machine is used for doing surface treatment of different WPC product. This machine has the function of sanding machine and brushing machine.
PE WPC Products Application

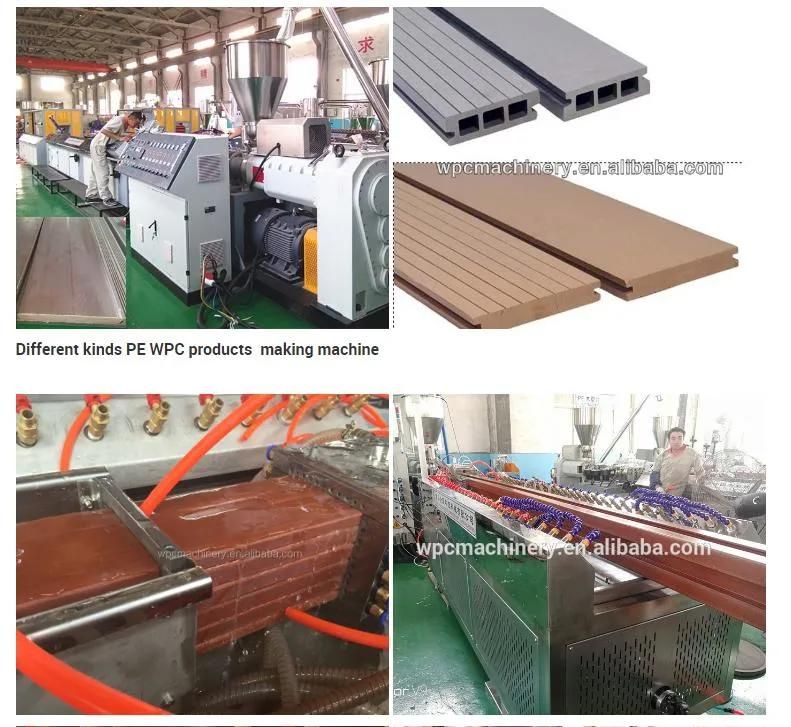

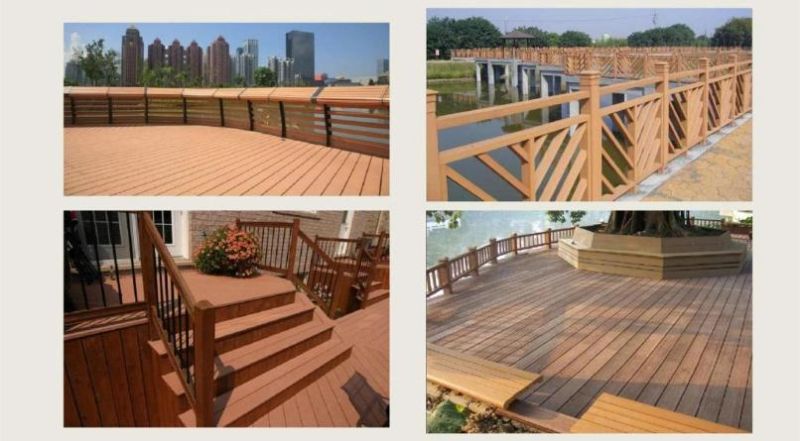

The PE WPC profile extrusion line is suitable for producing the hollow/solid PE WPC profiles. This profile has the advantage of fireproof, waterproof, moisture proof, moth proof, mildew proof and environment friendly. It is mainly used for extruding outdoor decorative WPC profiles, such as gardening landscapes, outdoor landscapes, pallets etc.
This extrusion line is for producing co-extrusion PP/PE WPC decking. The decking surface can be made into wood grain by co-extruder. Further more, the machine can be equipped with on-line embossing device the surface can be made into 3D wood grain. The WPC decking has a series of advantage including water-proof, insect prevention, ageing resistant, easy installation, environment friendly and good weathering resistance.
About our company
Machine Images
HGMSE series PP/PE WPC profile production line can continuously produce PP/PE WPC profile. The WPC profile adopts two -step production process. The granulating machine make WPC pellets using PP/PE recycled materials, wood powder and auxiliary agent. Then use this production line produce WPC profile.Customers can choose embossing machine for the production line to achieve 3D pattern performance.Customers can also make PE WPC single color or double color co-extrusion profile by adding extruders.The profile produced by this production line can be sanded and brushed by sanding machine and brushing machine.

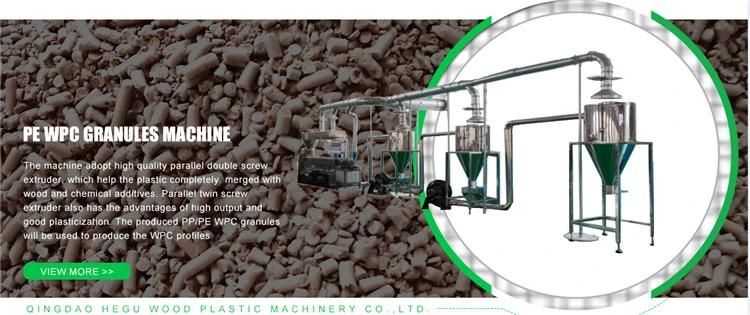

1, WPC granulation machine
After get ready wood powder and recycled PP/PE plastic, the first step is mixing them with chemicals, then use WPC granulation machine to make WPC granulesSHMS series granulating machine is used for making WPC pellets. The WPC pellets produced by WPC granulating machine can used for making WPC product using WPC machine.The granulating machine consists of parallel double-screw extruder,water cooling system, a granulator and air conveyor cooling system.The feeder and hopper are equipped with mixer to prevent the material blocked up.If customer do not have strict requirements about the appearance of pellets, the granulator can be removed.The pellets extrude by extruder directly, then go for crusher. Can improve the production capacity.
| Model | L/D ratio | Max.capacity | Motor power | Suitable material | Max.rotating speed | Wood powder percentage |
| SHMS-65 | 40:1 | 200-220kg/h | 75kw | Pe+wood powder | 500r/min | ≤75% |
| SHMS-75 | 40:1 | 300-350kg/h | 90kw | Pe+wood powder | 500r/min | ≤75% |
| SHMS-90 | 40:1 | 500-600kg/h | 132kw | Pe+wood powder | 500r/min | ≤75% |

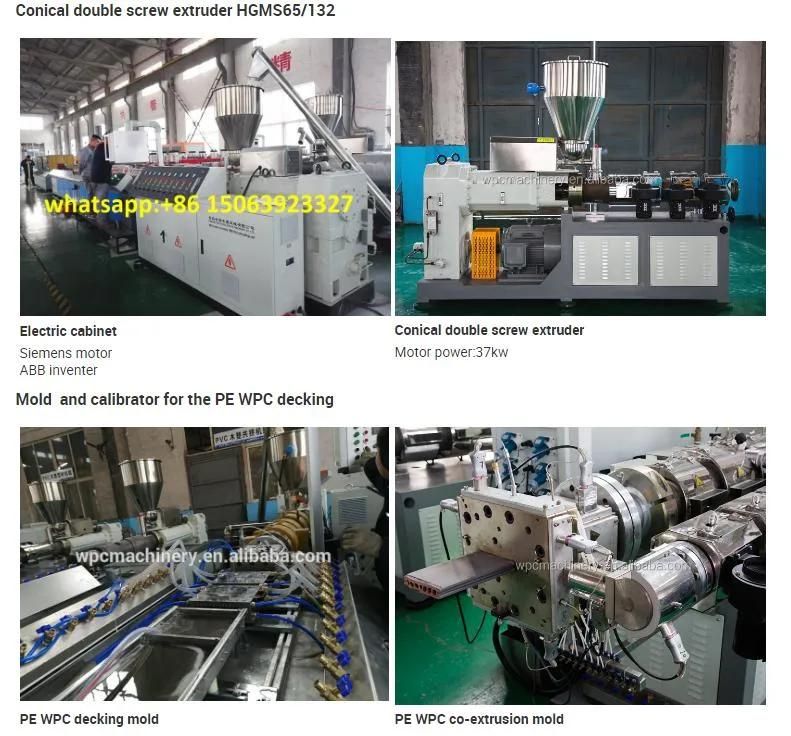

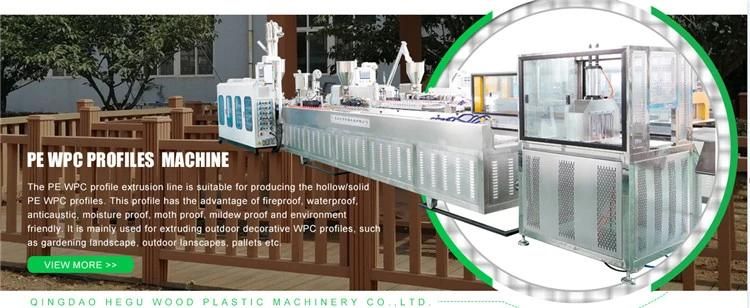

2, WPC profile extrusion line
Material: recycled 30% PP/PE+70% wood powder+chemical additives.Product: WPC decking, WPC wall cladding, WPC fence, WPC pergola..
The WPC profile extrusion line can make WPC granules into WPC products by equipping required mold, we can equip co-extrusion system and online 3D embossing device for making WPC products in high quality with wooden grain, the line also equipped with online cutting device.
| Model | HGMSE-65 | HGMSE-80 |
| Extruder model | SJMS65/132 | SJMS 80/156 |
| Motor power | 37kw | 75kw |
| Mac.Extrusion capacity | 140-160kg/h | 220-250kg/h |
| Co-extruder(Optional) | SJ35/28 | SJ45/28 |
We have high quality Online embossing device.it can do amazing 3D embossing design
WPC product wood surface making machineEmbossing machine, sanding machine, brushing machine, online embossing machine. these machines is for making WPC products with better wooden feeling design.
WPC sanding machine
This machine is used for fixing the size of single extrusion WPC product and doing surface treatment
WPC brushing machine
This machine is used for brushing the WPC product. To do the different surface on WPC product by changing the brushing roller and sanding roller
WPC brushing and sanding machine
This machine is used for doing surface treatment of different WPC product. This machine has the function of sanding machine and brushing machine.
PE WPC Products ApplicationThe PE WPC profile extrusion line is suitable for producing the hollow/solid PE WPC profiles. This profile has the advantage of fireproof, waterproof, moisture proof, moth proof, mildew proof and environment friendly. It is mainly used for extruding outdoor decorative WPC profiles, such as gardening landscapes, outdoor landscapes, pallets etc.
This extrusion line is for producing co-extrusion PP/PE WPC decking. The decking surface can be made into wood grain by co-extruder. Further more, the machine can be equipped with on-line embossing device the surface can be made into 3D wood grain. The WPC decking has a series of advantage including water-proof, insect prevention, ageing resistant, easy installation, environment friendly and good weathering resistance.
