• Model NO.：HY-51,62
• Working Area：100mm
• Computerized：Computerized
• Automation：Automatic
• Shaping Mode：Die Molding
• Raw Material：Pet BOPS HIPS PVC
• Processing Type：Plastic Forming Machine
• Product Type：Blister Packaging
• Transport Package：Wooden Packaging
• Specification：CE
• Trademark：HongYin
• Origin：Zhejiang Ruian
• HS Code：8477409000
• Production Capacity：20 Sets,Year

Basic Info.

Model NO. HY-51/62 Working Area 100mm Computerized Computerized Automation Automatic Shaping Mode Die Molding Raw Material Pet BOPS HIPS PVC Processing Type Plastic Forming Machine Product Type Blister Packaging Transport Package Wooden Packaging Specification CE Trademark HongYin Origin Zhejiang Ruian HS Code 8477409000 Production Capacity 20 Sets/Year

Product Description

HY-510580 Automatic plastic heating forming machine


I. Introduction with the machine

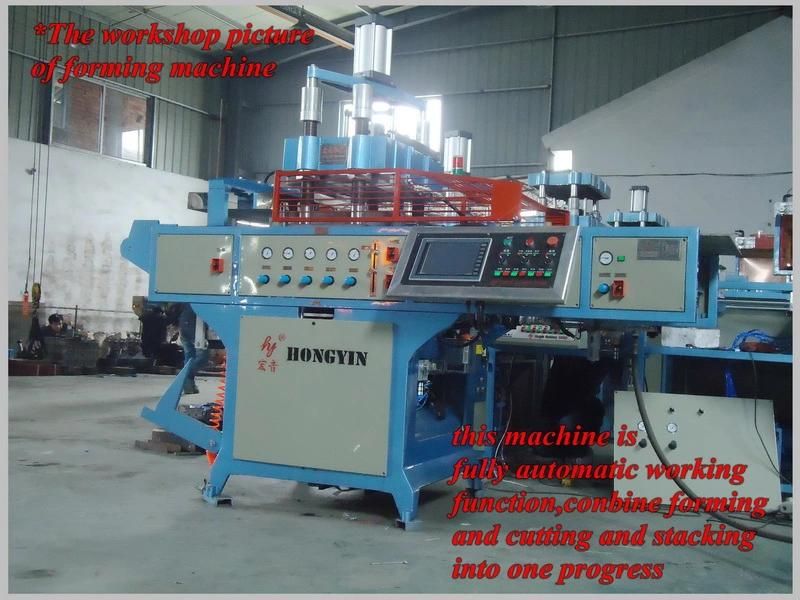

HY-51/62 plastic forming machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by a micro PLC, which can be operated in man-interface.
It combines the material sending, heating, forming and cutting info one process. It has three operation models. " manual", " semi-automatic" and "automatic, so it is a new generation ideal package equipment telecommuting and memory reserve functions.

II. Application area:
It is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.

III. The plastic forming machine main introduction:

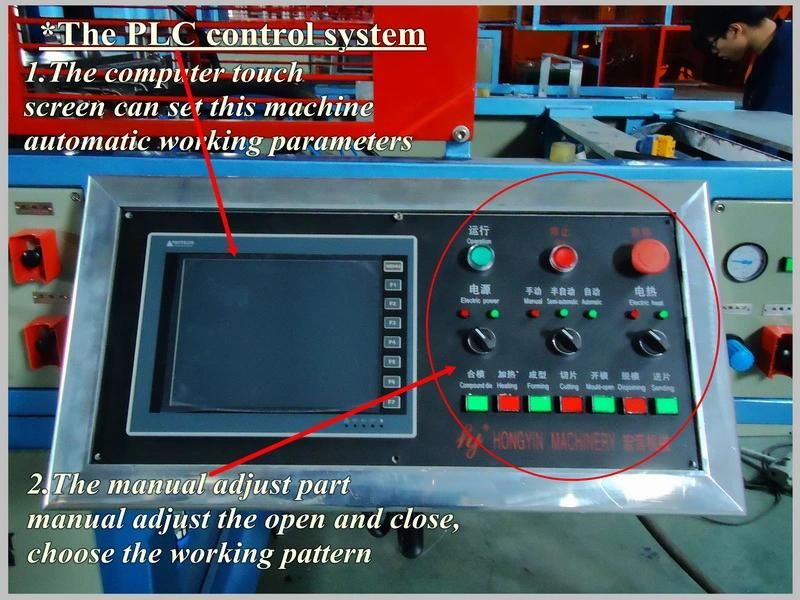

1. Control system:
Whole machine adopts PLC to control the production technical process, tail remember of modern computer.

2. Automatic feeding sheet:
Large alone diameter cylinder type automatic material feeding frame. It can put one rolls material into the feeding frame in advance, about feeding there has two traction roll to translate the sheet that assurance of high speed operation and stability and correctness Greatly saves manpower and Ensure the smooth feed material at a high speed.

3. Heating part:
Heater adopts high quality heating plate to heating. The heat plate heating evenly and close to the sheet, it can keep the plastic sheet to heating enough and can be better for forming.

4. Mold forming and cuuting:
The forming machine is adopt positive pressure forming, it can combine the forming and cutting into one process.

5. The product cooling:
The machine is equipped with wind cool, water cool chasis and high speed cold water spraying device to speed up molding in order to assure the quality of moldings. Cooling delay, cooling time, Water spray delay, spray time, adjust the length of the time according to different products.

6. Stacking robot: .
Manipulator is belong to the related selected device according the client purchase demand.
The stacker can help make products to neatly stacked and save a lot of the manual work.

IV. About Ruian Hongyin Machinery Co., Ltd Service.
1. Purchase Service
Ruian hongyin company have a specialize and efficiency working team. If you are new on the printing and packing area, Some samples of your products could be shew to us will be appreicate, we will give you specialized suggestion of whole work.

2. Installation Service:
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training, cost for return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.

3. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.

If you are interested in our machine, please feel free and contact me.
Contacter: Michael Rao
tEL: 00 86 15158704325

Website: http://cnhongyin.en.made-in-china.com
cnhongyin.en.made-in-china.com




1Forming area:510×620mm	2Forming depth:100mm
3Sheet thickness range:0.15-1.2mm	4Sheet roller diameter:710mm
5Cutting length:6350mm	6Ari pressure:0.7Mpa
7Water consumption: 10 Liters/min(15-20ºC)	8Air consumption:2200 Liters/min
9Speed:600-1200 Liters/hr	10Power:3-N AC380V±15V  50/60HZ
11Preheater power:2kw	12Mould plate heating power:4.8kw
13Heating plate power:15kw	14Sheet width:650mm
15Weight:2500kg	16Dimension(L×W×H)2750×1410×2350×(mm)
