Wind Cooling Hot-Cutting Plastic Recyling Compounding Machine (SJ-A)
Ruian Queensense Machine Co., Ltd.- Material Processed：Film
- Plastic Type：PE
- Screw：Single-Screw
- Automation：Automation
- Computerized：Computerized
- Certification：CE
Base Info
- Model NO.：SJ-A90-120
- Output：60-130kgs
- Screw Material：38 Crome
- Transport Package：Wooden Box
- Specification：CE
- Trademark：QUEENSENSE
- Origin：China
- HS Code：8477201000
- Production Capacity：60-135kg,H
Description
Basic Info.
Model NO. SJ-A90-120 Output 60-130kgs Screw Material 38 Crome Transport Package Wooden Box Specification CE Trademark QUEENSENSE Origin China HS Code 8477201000 Production Capacity 60-135kg/HProduct Description

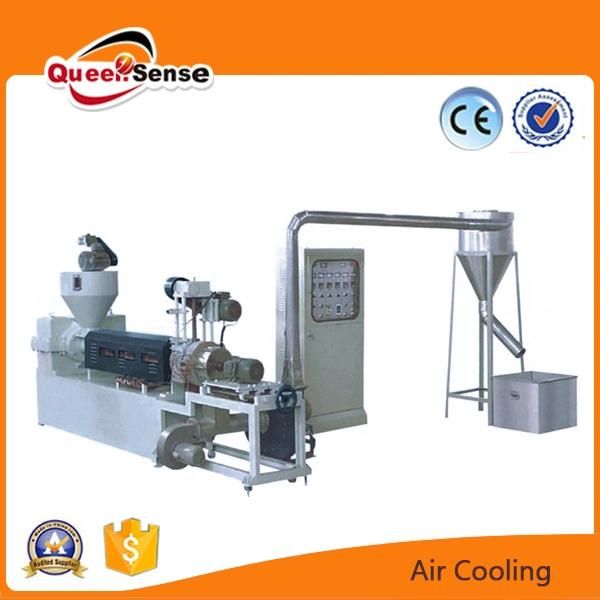

This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE, and PP, etc.
It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.
The granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same
Discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance,
And favorable economic benefit.
| Model | SJ-A90 | SJ-A100 | SJ-A110 | SJ-A120 |
| Type Diameter of Screw Stem | φ90 | φ100 | φ110 | φ120 |
| Major Diameter Ratio of Screw Stem | L/D 20:1 -22:1 | L/D 20:1 -22:1 | L/D 20:1 -22:1 | L/D 20:1 -22:1 |
| Rational Speed of Screw Stem | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Main Motor Power | 22kw | 30kw | 37kw | 45kw |
| Output | 68kg/h | 95kg/h | 120kg/h | 135kg/h |
| Weight of overall(kg) | 2600kg | 2800kg | 3000kg | 3200kg |
| Cover dimensions (l×w×h) (mm) | 4000×1500×1800 | 4000×1500×1800 | 4000×1500×1800 | 4000×1500×1800 |
