PP PE Film Making/ Plastic Yarn Extrusion Machine/Extruder Tape Drawing Line

Wenzhou Kewang Machinery Co., Ltd
  • Type：Sheet Extruder
  • Plastic Processed：PP
  • Product Type：PP Tape Yarn Drawing Machine
  • Feeding Mode：One Feed
  • Assembly Structure：Separate Type Extruder
  • Screw：Single-Screw

Base Info

  • Model NO.：FS
  • Engagement System：Non-Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Condition：Newest
  • Machine Type：Tape Drawing Machine
  • Output Capacity：1-8tons Per Day
  • Speed：Normal Speed
  • Line for：Making PP Woven Bag
  • Assistive Devices：Circular Loom, Bag Cutting Machine, Sewing Machine
  • Yarn Tape：Monofilament and Flat Yarn
  • Yarn Winding：with Winding Machine,Winder
  • Spindle Size：38*230mm
  • Transport Package：as Your Reqeust
  • Specification：SGS
  • Trademark：KWJX
  • Origin：Wenzhou, Zhejiang
  • HS Code：8479400000
  • Production Capacity：300 Set Per Year

Description

ModelFS135/1600FS140/1800FS145/2000FS150/2200FS150/2400FS160/2600FS160/2800FS160/3000FS170/3200FS170/3500Diameter of screw(mm)135140145150150160160160170170Ratio of screw L/D26:126:126:126:126:128:128:128:128:128:1Revolution of screw(r/min)22-6522-6520-6020-6020-6020-6020-6020-6020-6020-60Motor of extruder(kw)373745555575759090110Heating power of extruder(kw)778086869296106106112118Width of die1600mm180020002200240026002800300032003500Power of driving motor(kw)7.57.57.511111111151515Power of heating board(kw)20202222222225252525Stretching ratio4-124-124-124-124-124-124-124-124-124-12Extrusion capacity(kg/h)90-180100-200110-240120-260140-280140-300160-320160-340180-350200-360Winding linear speed(m/min)50-15050-15050-15050-15050-15050-15050-15050-15050-15050-150Thickness of tape(mm)0.03-0.80.03-0.80.03-0.80.03-0.80.03-0.80.03-0.80.03-0.80.03-0.80.03-0.80.03-0.8Weight (About)kg16000170002000021500230002450025000265002750029000Overall dimension (L×W×H)mm20000*2600*220020000*2950*220021000*3400*220022000*3700*220022000*4000*220023000*4400*250023000*4600*250024000*4800*250025000*5000*250025000*5200*2500

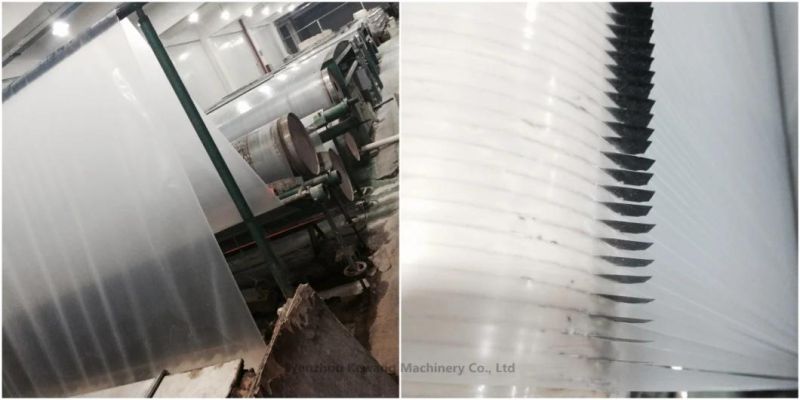

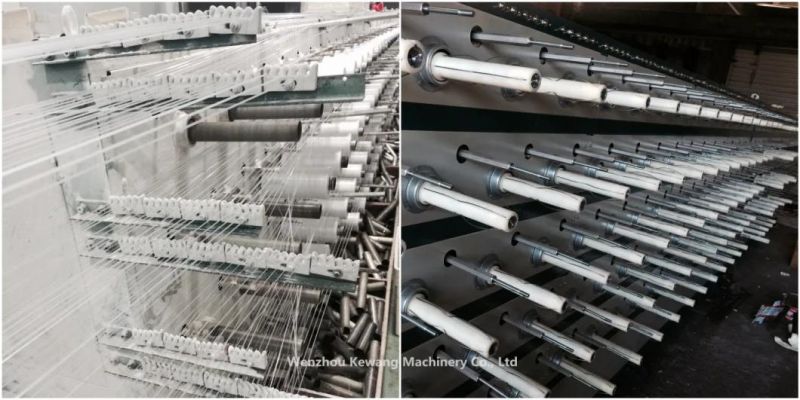

Machine photos and patents:

PP PE Film Making/ Plastic Yarn Extrusion Machine/Extruder Tape Drawing Line
PP PE Film Making/ Plastic Yarn Extrusion Machine/Extruder Tape Drawing Line
PP PE Film Making/ Plastic Yarn Extrusion Machine/Extruder Tape Drawing Line

Our Service


Warranty

* 1 year warranty
* Any part of electronic ,if it's not cause by man-made reasons,we will ship you a free new one.
* If beyond warranty,we offer free repair service,Clients need undertake ship cost

After-Sales Service

* Training how to instal the machine, training how to use the machine.
   Engineers available to offer service overseas.but client please undertake travelling expenses for them.


FAQ

Q: Are you trading company or manufacturer ?


A: We are factory which have export right. We have exported our machine to so many countries like Pakistan,Malaysia Indonesia,Philippines,Egypt,Turkey,Russia,Ukraine,Serbia,Moldova&Colombia.

Q: How long is your delivery time?


A: Generally it is 50 days after getting deposit.


Q: What is your terms of payment ?


A: Usually 30% T/T in advance ,balance before delivery.
