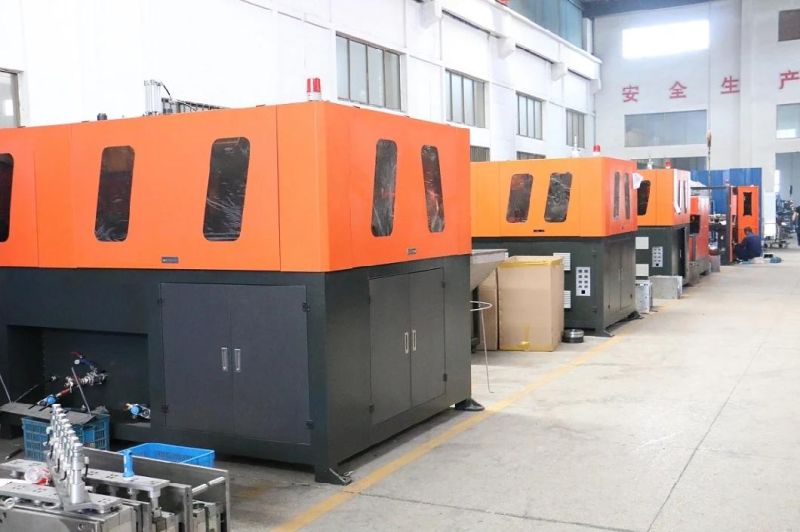

6000bph Blow Molding Machine Making 200ml-2L Pet Bottle

Zhangjiagang Eceng Machinery Co., Ltd.
  • Type：Stretch Blow Molding Machine
  • Raw Material：PET
  • Making Method of Parison：Stretch Blow
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE

Base Info

  • Model NO.：YCQ-2L-6E
  • Cavity：6
  • Heating Method：Infrared Tube Heat
  • PLC Controller：Mitsubishi
  • Full Computer Screen：Winwiew506L
  • Pneumatic Components：Parker and Festo
  • Color：Orange
  • Bottle Material：Pet

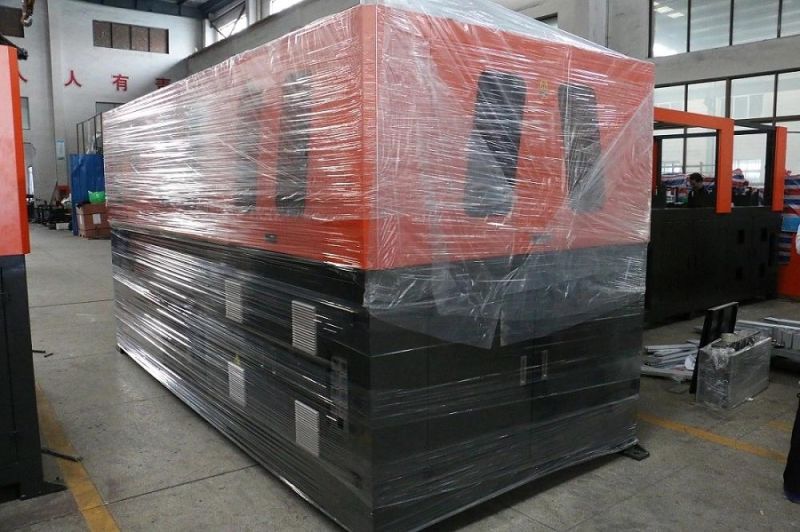

  • Transport Package：Wooen Pallet
  • Specification：CE
  • Trademark：ECENG
  • Origin：Zhangjiagang, China
  • HS Code：8477300000
  • Production Capacity：5000-5200 Bottle Per Hour

Description


Bottle type specification



 cavity6output(PCS/HR)6000Max. volume (L)2LBottle mouth maximum overall diameter (mm)28-38mmBottle biggest diameter100mmBottle maximum height330mm
Power specifications

 Light tube quantity32pcsLight tube power1.25kwMaximum heating power40kwAll electric machine installation43kwActual consumption21.5kw
Air pressure specification

 Work pressure7-9kg/cm2Low-pressure gas consumption1600Ltr/minBlow bottle pressure25-35kg/cm2Higher -pressure gas consumption4000 Ltr/min
Frozen water specification

 Work pressure5-6 kg/cm2Temperature range10Consumption8000kcal/hrFrozen water flow88Ltr/minMachine specification
 Size of the machine5.2x1.6x1.9 (m)Weight of the machine4ton
