2018 High Quality Four Shaft Shredder with Good Price
Zhangjiagang Sevenstars Machinery Co., Ltd.- Material Processed:Big Drum,Tire,Other Big Waste Material
- Plastic Type:Plastic Scrap
- Screw:Four Shaft
- Automation:Automation
- Computerized:Computerized
- Certification:ISO9001:2008, CE
Base Info
- Model NO.:GLF
- Size of Feed Mouth:Adjustable According to Customer
- Color of The Machine:Can Be Changed
- Screw and Barrel Material:38crmoala
- Blades Material:DC53
- Hardness of Blade:HRC60 for Double Shredder
- Rotary Blade Design:Square Design for Double Shredder
- Capacity:500-1000kg,H
- Over Load Protector:Yes It Is Including
- Electric Brand:World Famous Brand
- Service:Engineers Available to Service Machine Overseas
- Transport Package:Over Sea Worthy Packing
- Specification:1-5ton
- Trademark:Sevenatars mechinery
- Origin:China
- HS Code:8479820090
- Production Capacity:10 Sets One Month
Description
MODEL
GLF1000
Main motor
18.5kw+18.5KW
Drive System
Double motors
Feeding opening size(mm)
1220*1400mm
Rotating speed of shaft
15-32rpm---according to different material
main blade revolving diameter
340mm
Auxiliary blade revolving diameter
340
Thickness of rotary blade
40mm
Quantity of main blade
25pcs
Quantity of auxiliary blades
25pcs
Material of blade
special imported tool steel (SKD11)
Screen size
20mm and 30mm
(it can design according to customer requirement)
Electric control system
PLC Siemens Control, low-voltage apparatus :LG
Contactor and relay : Siemens brand
Outside dimensions
2700*1520*2482mm
weight
5800 kg
Capacity
800-1200kg/h(depend on different material)

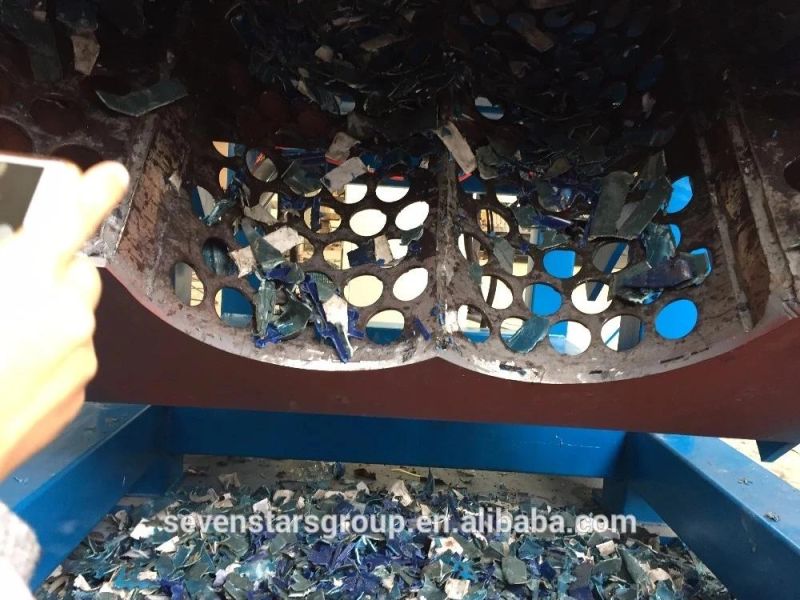

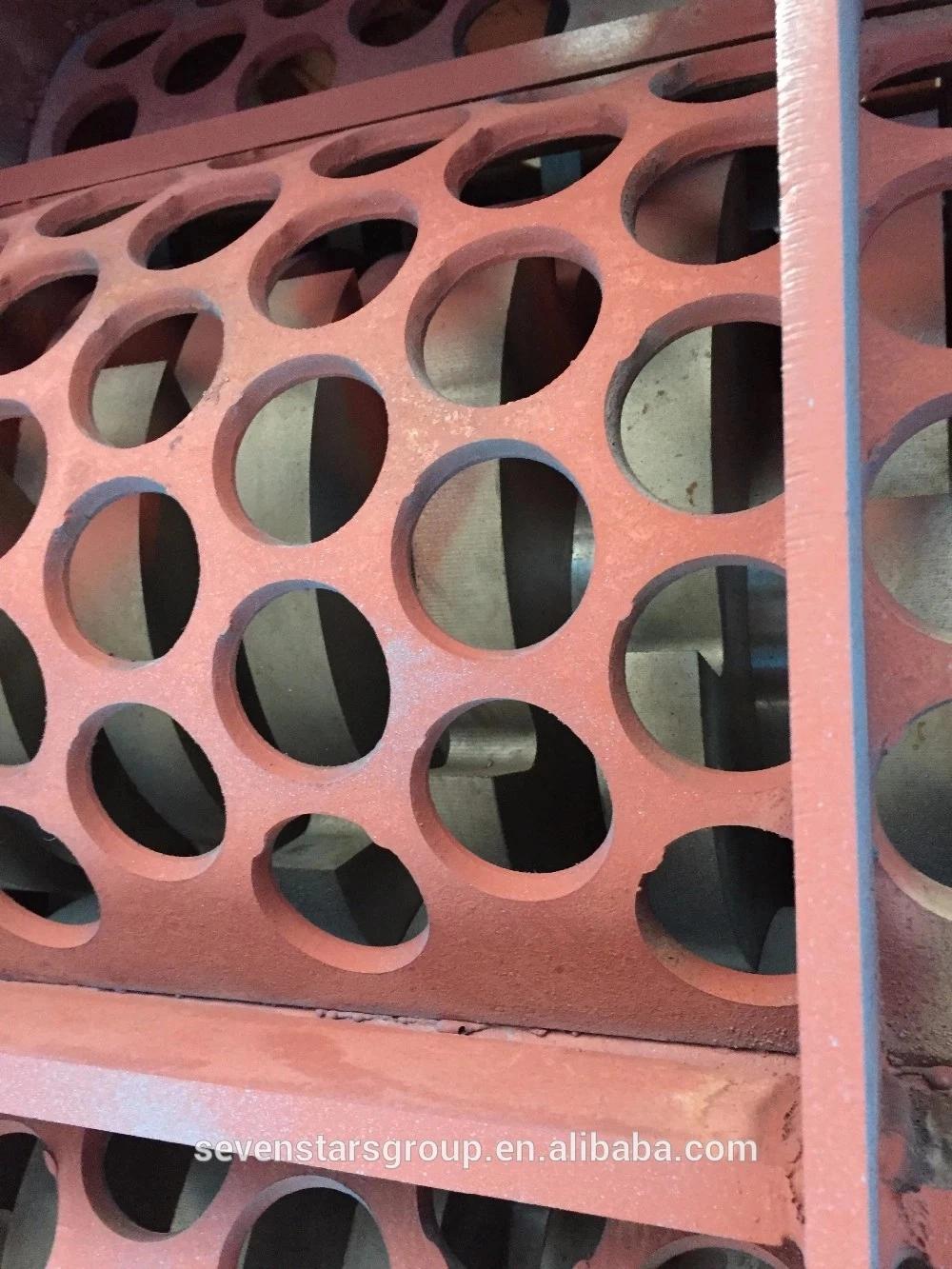

Detail Show

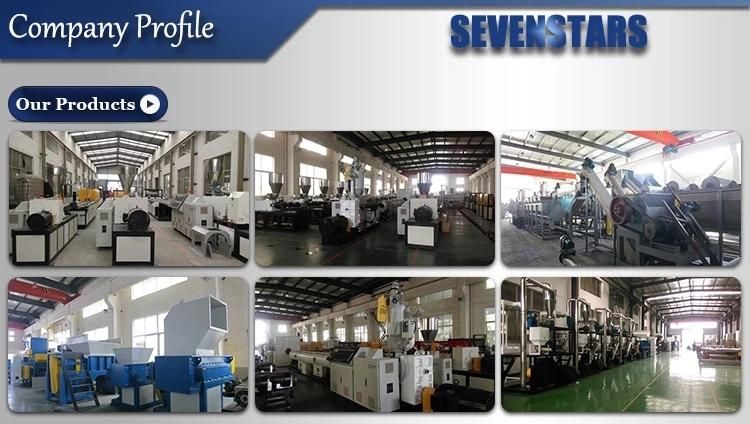

Company information
Zhangjiagang Sevenstars Machinery Co.,Ltd. was founded in 2006. it is an enterprise specialized in producing plastic machinery.it lies to the south of the middle and lower reches of Yangtze River.It is located in the National civilization and hygienic city-zhangjiagang , Surrounded by the economic belt of Suzhou,Wuxi,Changzhou,Nanjing and Shanghai.Both land and river transports are rather convenient.We sell our products to Europe middle,Africa and Asia,etc.
Our service
1.Upon request Supplier will dispatch engineers to install the machines and do commissioning together with customer's workers.
2.Meanwhile, engineers will teach how to operation, maintain for buyer's engineers, worker on site.
3.We also offer long term technical guidance.
FAQ
1.How about the quality about this machine?
Answer: yes,my friend,please rest assured,we have nearly 10 years experience for this machine.quality is no problem.
2.How about the output about this machine?is the data real?
Answer: my friend,we have tested that machine many times,then get this data,it is real and can meet your need.
3.Wether you deliver in time?
Answer: sure,once we receive your payment, then delivery immediately.
4.What about your after service?
Answer: we can send our engineers to you factory and offer long term technical guidance.
How to contact us ?
Contact: Sunny Mobil:0086-15862613365
