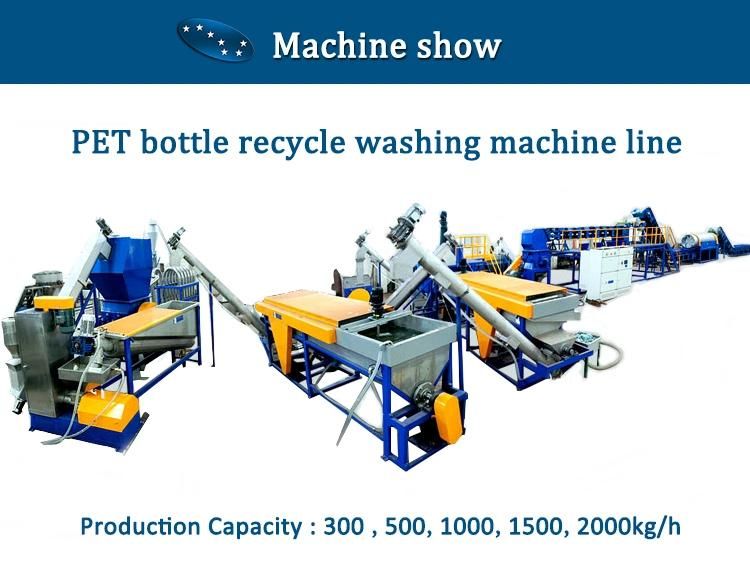

Pet Bottle Recycle Washing Machine Line
Zhangjiagang Sevenstars Machinery Co., Ltd.- Material Processed:Plastic Bottle
- Plastic Type:PET
- Screw:Single-Screw
- Automation:Automation
- Computerized:Non-Computerized
- Certification:UL, ISO9001:2008, CE
Base Info
- Model NO.:PET bottle recycle washing machine line
- Condition:New
- Application:Pet Bottle Crushing Washing Line
- Automatic Grade:Semi-Automatic
- Model Number:Bdxhb
- After-Sales Service:Engineers Available to Abroad
- Main Motor:Depends on The Customer
- Transport Package:Wooden Package in The Container
- Specification:CE ISO9001: 2008 SGS
- Trademark:BDX
- Origin:Jiangsu Zhangjiagang
- HS Code:84778000
- Production Capacity:300-3000kg,Hr
Description
Basic Info.
Model NO. PET bottle recycle washing machine line Condition New Application Pet Bottle Crushing Washing Line Automatic Grade Semi-Automatic Model Number Bdxhb After-Sales Service Engineers Available to Abroad Main Motor Depends on The Customer Transport Package Wooden Package in The Container Specification CE ISO9001: 2008 SGS Trademark BDX Origin Jiangsu Zhangjiagang HS Code 84778000 Production Capacity 300-3000kg/HrProduct Description

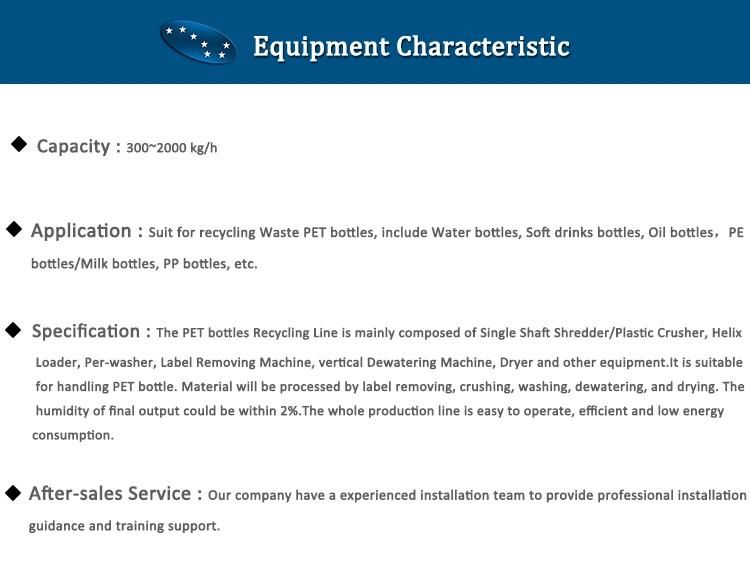

1.It is mainly for PET bottle crushing,washing and drying. PP PE and some other rigid plastics are also can be washed by this line.
2.The whole line is fully automatic and it has characteristics of high efficiency, low noise and easy operation. It adopts hot water washing to get good quality.
3.Various output capacities can be chosen: 200KG/H, 300kg/h, 500kg/h, 1000kg/h...
4.The recycling line can easily crush, wash and pelletize wasted plastic products
5.From beginning to finished products. Waste and dirty agricultural films and
Waste packing material or rigid plastics can be treated step by step by this machine

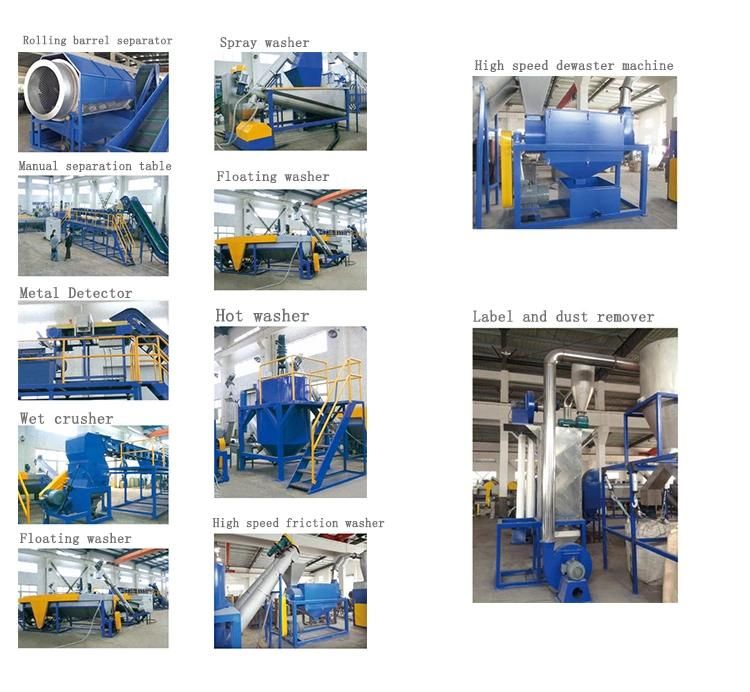

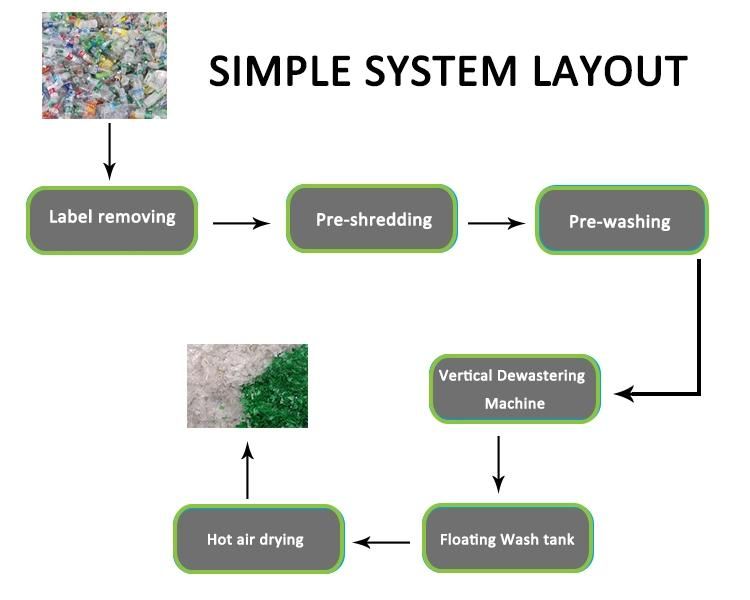

The whole equipment includes parts as follows:
NO | ITEM | DESCRIPTION | SELECTIVITY |
1 | Prewasher | Remove the solid impurity which are water insoluble, such as hand stone, sand, etc. It can also wash bottles' surface. | Optional |
2 | Bale Breaker | It is used in large capacity recycling line, and bottles are compressed in bale. | Optional |
3 | Belt Conveyer | Including the metal detector. | Necessary |
4 | Label Remover | Label removing efficiency, more than 98% | Optional |
5 | Manual Select Platform | Made according to workers' height, supply a suitable plate for selecting the left labels or some other impurity. | Optional |
6 | Belt Conveyer | Conveying the bottles into crusher. | Necessary |
7 | Crusher | With water, the materials of the blade adopt SKD-II or 9CrSi. It has a function of prewashing too. | Necessary |
8 | Screw Feeder | Conveying the flakes into friction washer. | Optional |
9 | Friction Washer | Scrubbing material in high-speed with water. | Optional |
10 | SCrew Floating Washer | Remove few remand paper, sand, label from material based on different density. | Optional |
11 | Screw Feeder | Conveying the flakes into hot washer. | Necessary |
12 | Hot Washer | High temperature stirring washing with caustic soda. Water can be heated by steam or electric. | Necessary |
13 | Screw Feeder | Same as Item 8. | Necessary |
14 | Friction Washer | Same as Item 9. | Necessary |
15 | Screw Floating Washer | Same as Item 10. | Necessary |
16 | Dewatering Machine | High speed centrifuge drying. | Necessary |
17 | Drying System | Electric heating wind drying. | Necessary |
18 | Label Wind Separator | The last left impurity will be separated from flakes by the blower fan. | Optional |
19 | Silo | Store the final material. | Necessary |
20 | Electrical Control Panel | Adopts Siemens and DELIXI as main component. | Necessary |
Quality Control:
1.We have technician, engineer team design the qualified machinery before enter the market
2.QC team ensure the machine manufacturing step and final machine quality
3.We will running every machine after it's finished
4.We provide client running test the machinery by raw material
After sales Service:
1.Pre-sale: we given client the details technician offer, sign the sales contract etc.
2.In-sales: we supply the details layout, installation instruction, technician support for the clients;
3.After sales: we arrange engineer to install the machinery and training the workers for client abroad;
4.We have 24 hours team to solve problems after sales;
5.We have free spare parts with the right machine;
6.We supply whole machine lifetime spare parts for every customer
7.We always up date the new technology to every customer
Delivery information:
1. Delivery: 50 days after ur order
2. Warrenty: 15 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: standard export wooden case
