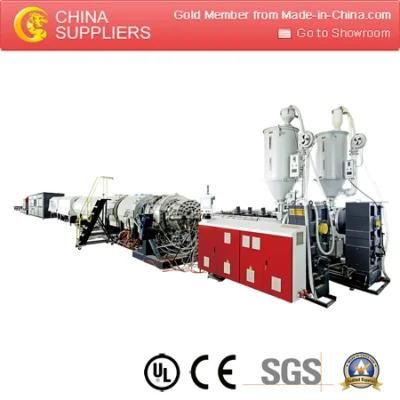

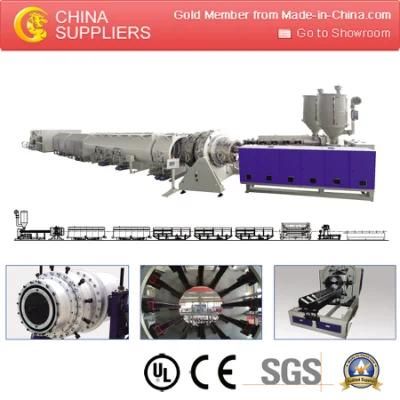

800-1200mm HDPE Pipe Extrusion Line
GPM Machinery (Shanghai) Co., Ltd.- Product Type：PE Pipe
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, UL
- Customized：Customized
Base Info
- Model NO.：GWG
- Condition：New
- Product Name：PE,HDPE,LDPE Pipe Extrusion Production Line
- Other Name：PE,HDPE,LDPE Pipe Extrusion Line
- Raw Material：PE,HDPE,LDPE
- Processing Type：Extruding
- Pipe Range：20-1200mm
- Machine Color：Blue & White
- Product：PE Pipe
- Output：180-1700kg,H
- Motor：Siemens Brand
- Contactor：Schneider Brand
- Transport Package：PE Film Winding Wrapping
- Specification：GWG63,GWG110,GWG250,GWG450,GWG630,GWG800,GWG1000
- Trademark：GPM
- Origin：Shanghai
- HS Code：8477209000
- Production Capacity：500 Sets,Year
Description
SPECIFICATIONS FOR 800-1200mm HDPE Pipe Extrusion LineModel Pipe spec(mm) Conical twin screw extruder Max.output
(kg/h) Total power(kw) GWG63-PE Φ20-Φ63 GW65/38 250-300 75/90 GWG110-PE Φ63-Φ110 GW65/38 250-300 90 GWG250-PE Φ75-Φ250 GW75/38 500-550 185 GWG450-PVC Φ160-Φ450 GW90/38 700-750 250 GWG630-PVC Φ315-Φ630 GW120/33 900-1100 280 GWG800-PVC Φ400-Φ800 GW150/33 1000-1200 315 GWG1000-PVC Φ630-Φ1000 GW150/33 1000-1200 315 GWG1200-PE Φ800-Φ1200 GW120/33 &GW90/38 1500-1700 280/220
Main Features of 800-1200mm HDPE Pipe Extrusion Line
1) High output, can be improved 30-50% at the same main motor power condition.
2) High production line speed, for Φ20mm pipe can be 35m/min.
3) Haul-off machine and cutter can be servo control.
4) Optional equipment automatic weighing measurement and thickness control system.
For choosing the proper machine and saving your time, please read these bellow guides carefully
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (kg/h )
3). What is the max and min size of the finish products .For example, the width and thickness of sheet(mm)?
4) What is the electric device you need ? Siemens, Omron or domestic ?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.
if you are interested in this machine ,please contact me:
mob : +86 13915723896 ( or +86 13817556740 )
Jeremy He
