• Model NO.：HY-61,62B
• Application：Containers, Boxes, Trays& Lids
• Warranty：1 Year
• Weight：2000kg
• Thickness of Sheet：0.1-1.0mm
• Max. Forming Area：610*620mm
• Max. Forming Depth：100mm
• Power：AC 380V, 50,60Hz
• Dimension(L*W*H)：4410*1290*2130mm
• Transport Package：Wooden Case
• Specification：610*620
• Trademark：Hongyin
• Origin：Ruian, Zhejiang
• HS Code：847780000
• Production Capacity：20sets,Year

Basic Info.

Model NO. HY-61/62B Application Containers, Boxes, Trays& Lids Warranty 1 Year Weight 2000kg Thickness of Sheet 0.1-1.0mm Max. Forming Area 610*620mm Max. Forming Depth 100mm Power AC 380V, 50/60Hz Dimension(L*W*H) 4410*1290*2130mm Transport Package Wooden Case Specification 610*620 Trademark Hongyin Origin Ruian, Zhejiang HS Code 847780000 Production Capacity 20sets/Year

Product Description

I. Introduction With The Machine    HY-61/62B plastic thermoforming machine is a combination of mechanical, electrical and pneumatic components,
and the whole system is controlled by a micro PLC, which can be operated in man-interface. It combines the material
sending, heating, forming into one process. It has three operation models. " manual", " semi-automatic" and "automatic,
so it is a new generation ideal package equipment with telecommuting and memory reserve functions.

Specifications


Forming Area	610×620mm
Forming Depth	100mm
Sheet Thickness Range	0.10-1.0 mm
Sheet Roller Diameter	710mm
Air Pressure	0.7 Mpa
Water Consumption	10 Liters/min(15-20ºC)
Air Consumption	1800 Liters/min
Production Speed	600-1200 recycles/hr.
Voltage	3P,  AC380V±15V, 50HZ
Mould Plate Heating Power	6 kw
Heating Plate Power	15 kw
Weight	2000kg
Dimensions(L×W×H)mm	4410×1290×2130 mm

II. Application Area
It is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can produce various of boxes, dishes,
trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.

III. Machine Picture

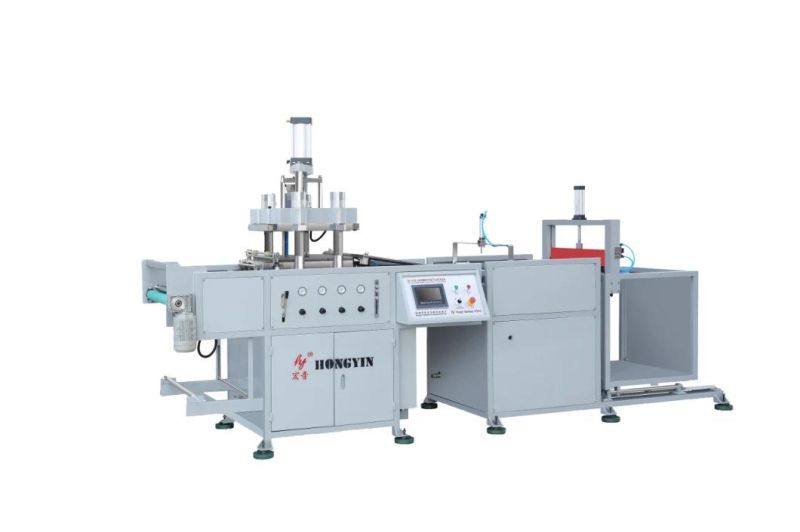

1. HY-61/62B Plastic Thermoformer Details

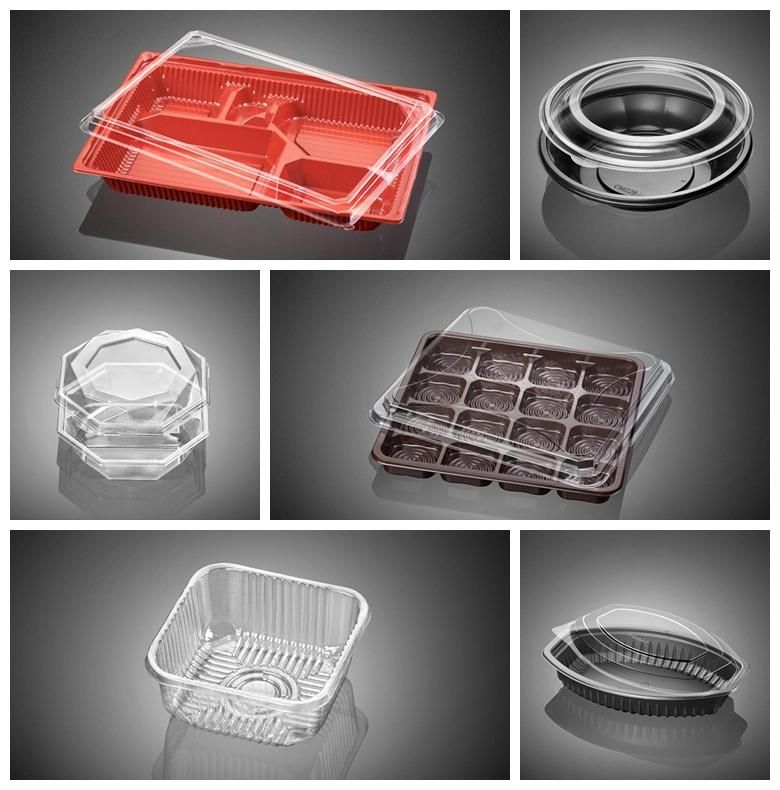

2. The Products Samples


IV. About Zhejiang Hongyin Machinery Co., Ltd Service.
1. Purchase Service
Hongyin Company has a specialized and efficient working team. If you are new on the printing and packing area,
some samples of your products shown to us will be appreicated, and we will give you professional suggestions of whole work.

2. Installation Service
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training.
Cost for return flight and suitable accommodation will be charged, and the allowance is USD 100 per day.

3. Warranty Service
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.  If you are interested in our machine, please feel free and contact me.
