Plastic Sheet Extruder Extrusion Extruding Machine for PP/ PS/ Pet/ HIPS/ PE

QINGDAO TRUSTY PLASTIC MACHINERY CO., LTD.
  • Product Type：PP,PE,ABS Sheet&Board
  • Board Layers：Multilayer
  • Screw No.：Single-screw
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008

Base Info

  • Model NO.：SJ-90; SJ-120; SJ-150
  • Customized：Customized
  • Condition：New
  • Length(M)：26
  • Width(M)：3.5
  • Height(M)：4.5
  • Inverter：ABB
  • Transport Package：Wooden Packing
  • Specification：Max 2500mm Width
  • Trademark：Trusty
  • Origin：Qingdao
  • HS Code：84772090
  • Production Capacity：10 Sets,Month

Description

auto loader To feed material into extruder; extruder• World famous brand electrical component such as Siemens, ABB etc;
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;

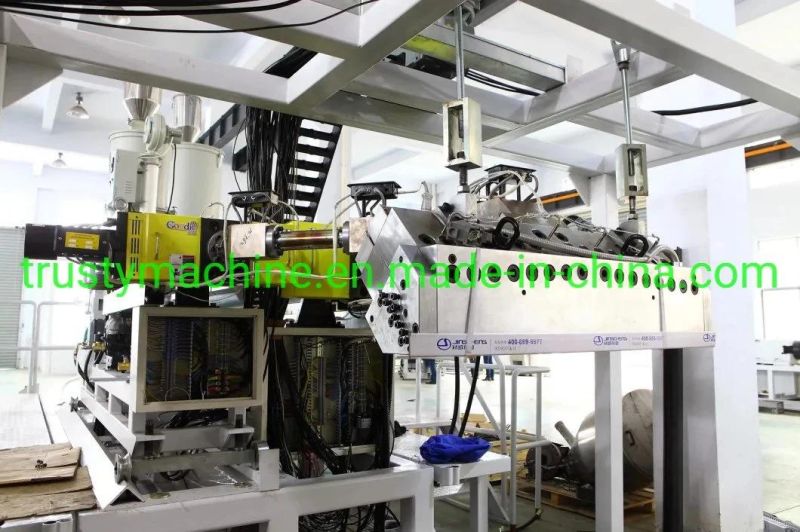

• Intelligent PLC controlling system with human-friendly interface. Plastic Sheet Extruder Extrusion Extruding Machine for PP/ PS/ Pet/ HIPS/ PET die head• Coat hanger type
• 5CrNiMo steel material

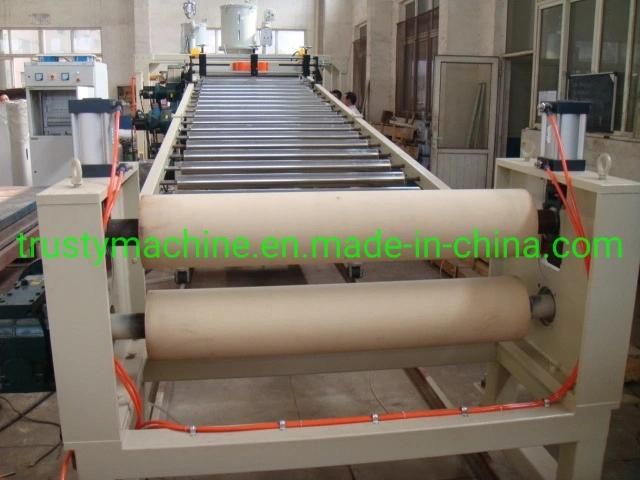

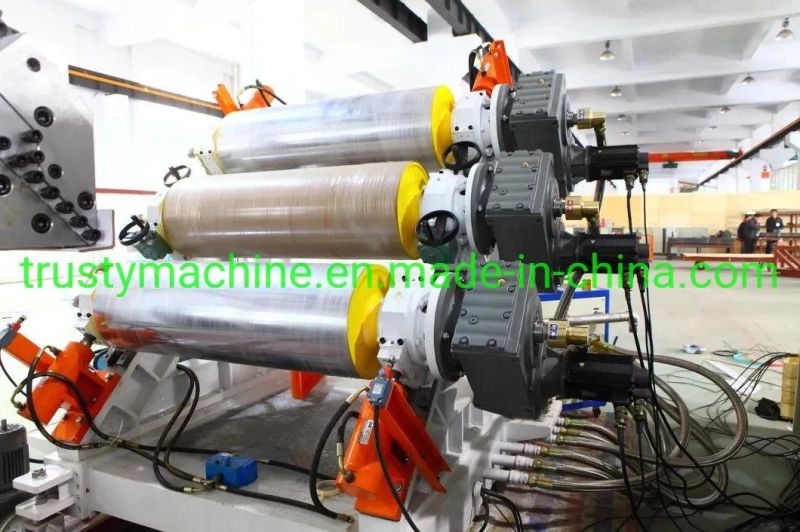

• Apply to sheet, boardPlastic Sheet Extruder Extrusion Extruding Machine for PP/ PS/ Pet/ HIPS/ PEThree roller Calender• Compacting driving by hydraulic
• Rollers are driven separately and speed control by frequency inverter or servo motor
• Temperature controller is include
• Independent operation panel for easy operation
• Equipped with lamination devicePlastic Sheet Extruder Extrusion Extruding Machine for PP/ PS/ Pet/ HIPS/ PECooling bracket and haul off•Multi-group cooling rollers;
•Speed control by frequency inverter
• Compacting driving by pneumatic

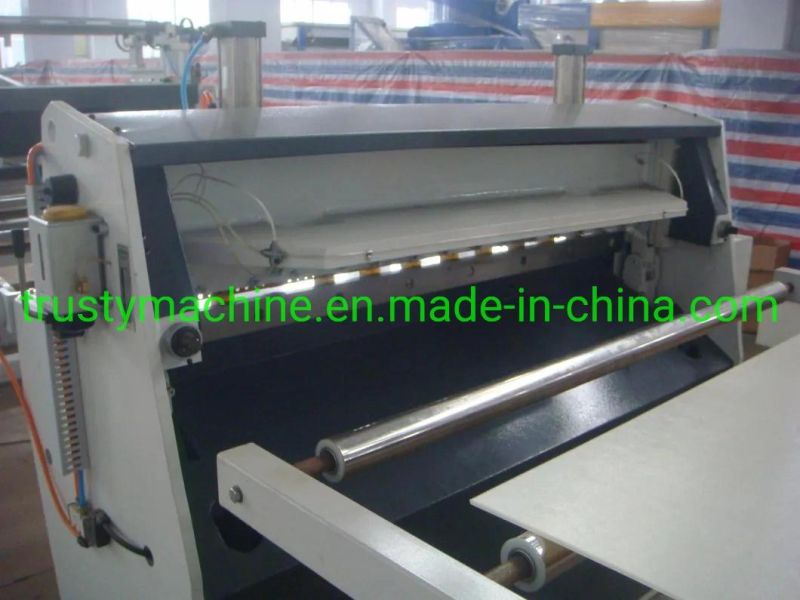

• With adopts wear-resisting rubber rollerPlastic Sheet Extruder Extrusion Extruding Machine for PP/ PS/ Pet/ HIPS/ PECutting system• Plate shearer ensuing flat and chip free cuttingPlastic Sheet Extruder Extrusion Extruding Machine for PP/ PS/ Pet/ HIPS/ PEstacker
• Stainless steel 304 as touching material




4.Technical Parameter

 Type TPM-1200TPM-1500TPM-2000
 Raw Material PP,PE,ABS PP,PE,ABS PP,PE,ABS
 Width 1220mm 1500mm2000mm
 Thickness 3-30mm 3-30mm 3-30mm
 Extruder Type SJ-120x35 SJ-150x35 SJ-170x35
 Outout  350kg/h 500Kg/h  800kg



5.After sales service

(1)After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine, we will test the machines and send the sample to buyer.
(2)After shipment, the seller will send one or two technicians to the buyer' s factory to help the buyer install the machine and train workers for buyer.
(3)We will supply all electricity drawing, machine installation drawing.
(4)When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays, and other items which is easier broken.
