Best Price Hydraulic Polyurethane and Polyurea Spray Foam PU Machine
Shandong Hightop Group- Type：Polyurea Foam Machine
- Raw Material：PP
- Principle：High-Pressure Air Type
- Automation：Non-Automatic
- Computerized：Non-Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：CNMC-20
- Power：18kw,20kw
- Max. Raw Output：2-12kg,Min
- Material Ratio：1:1
- Heating Temper：0-90
- Air Source：0.35-0.8 MPa ≥ 0.9 M3,Min
- Heating Hose：15 Meters
- Air Delivery Pipes：5 Meter
- Transport Package：Wooden Case or as Customer′s Requeaet
- Specification：1400mm*990mm*60mm
- Trademark：CNMC
- Origin：Shandong, China
- HS Code：8477800000
- Production Capacity：300 Sets,Month
Description
Basic Info.
Model NO. CNMC-20 Power 18kw/20kw Max. Raw Output 2-12kg/Min Material Ratio 1:1 Heating Temper 0-90 Air Source 0.35-0.8 MPa ≥ 0.9 M3/Min Heating Hose 15 Meters Air Delivery Pipes 5 Meter Transport Package Wooden Case or as Customer′s Requeaet Specification 1400mm*990mm*60mm Trademark CNMC Origin Shandong, China HS Code 8477800000 Production Capacity 300 Sets/MonthProduct Description
Hydraulic Spray Polyurea Machine/Spray Polyurea Coating Machine
Introduction of Polyurea coating equipment/coating machine manufacturers
It is can be used for various construction environment with spraying two-component materials spray(optional) like polyurethane foaming materials, widely used in embankment waterproof, pipeline corrosion, auxiliary cofferdam,tanks, pipe coating, cement layer protection, wastewater disposal,roofing, basement waterproofing, industrial maintenance, wear-resistant linings, cold storage insulation, wall insulation and so on.
Pls contact me that you can get free parts of spray gun.

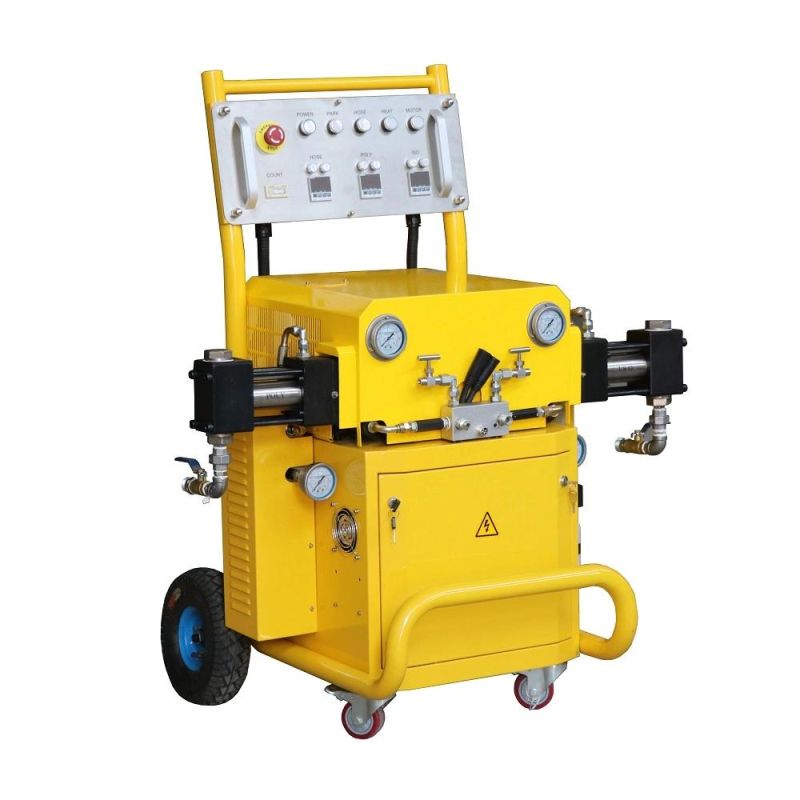

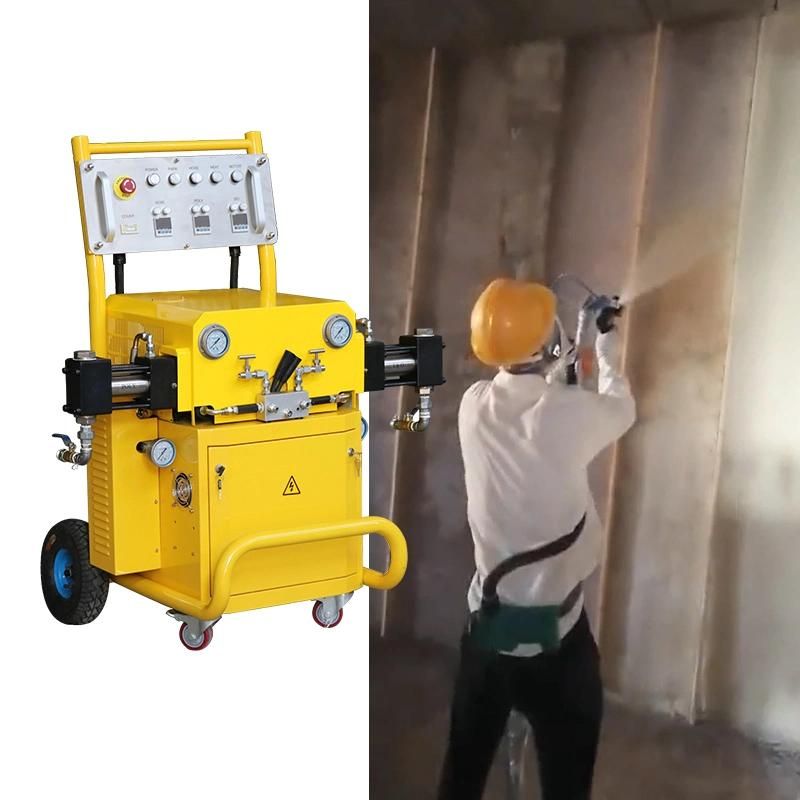

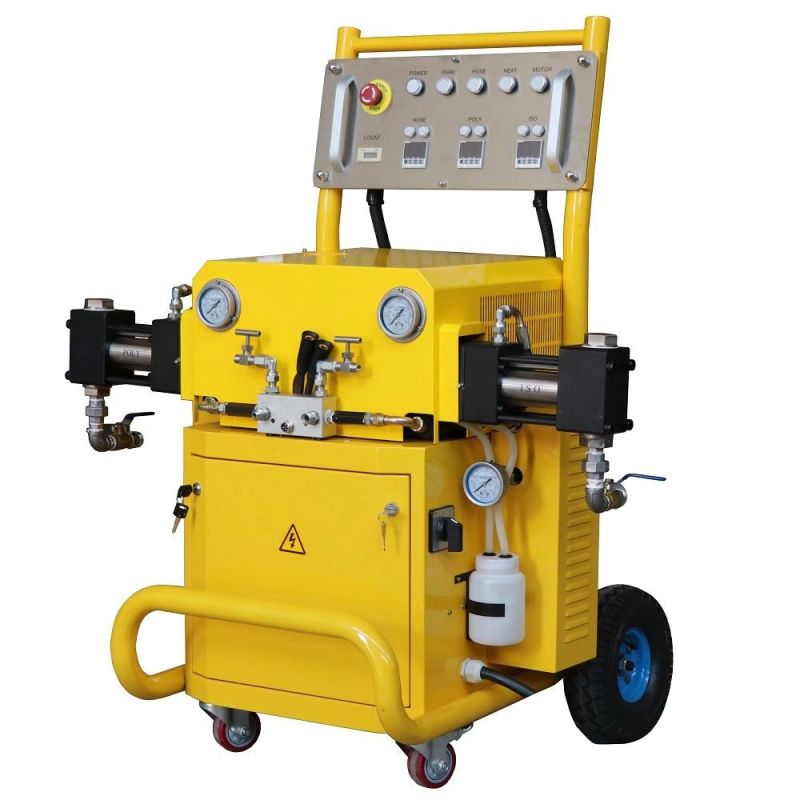

Images of hydraulic polyurea foam spray machine
| Project | CNMC-20 project polyurethane spraying machine |
| Proportion Fixed Mainframe | 1 set |
| Self-cleaning spray gun | 1 set |
| Gross weight | 100KG |
| Feed pump | 2 sets |

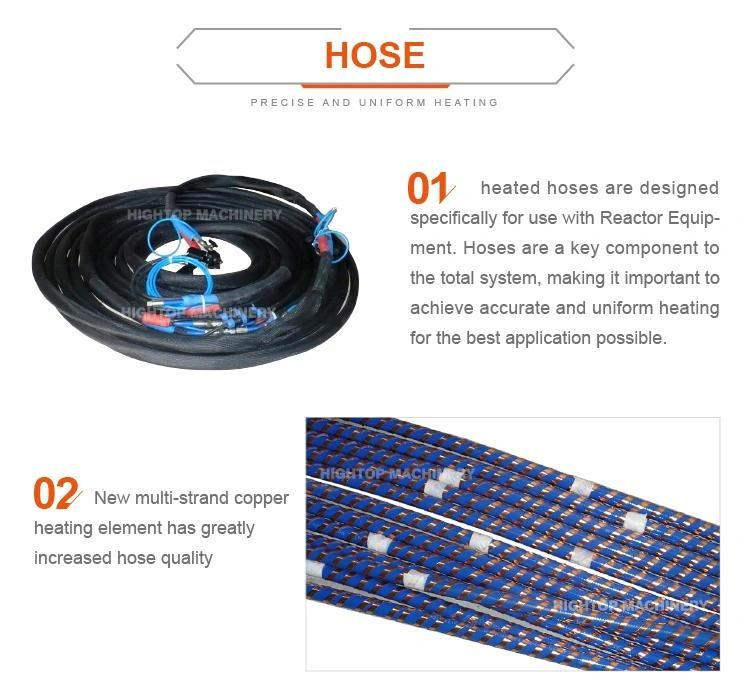

| Heated hose | 49.2 ft (15 m) |
| Data ratio of raw materials | 1: 1 (fixed) |
| Raw material viscosity range | 200-1000CPS (at working temperature) |
| Working pressure | 20 MPa (200 bar) |
| Maximum Fluid Temperature | 88 ° C (190 ° F) |
| Maximum output | 14 kg / min (22 lb / min) |
| Each heater power | 3000W |
| Heating hose power | 1000W / 15m |
| Total power | 10000W |
| Voltage | 230V 1-ph / 400V 3-ph/230V 3-ph |
| Machine size | 870mm * 700mm * 1150mm |
Welcome to our company, here the high qulality products and professional services will be your best choice !
