Zipper Bag Blowing Machine (SJ-Z)

Zhejiang Zhuxin Machinery Co., Ltd.
  • Type：Extrusion Blow Molding Machine
  • Raw Material：PE
  • Making Method of Parison：Extrusion-Blow Molding
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008

Base Info

  • Model NO.：SJ-Z
  • Film Width：100-580mm
  • Thickness of Film：0.04-0.15mm
  • Heater：15kw
  • Power：30kw
  • Transport Package：Wrapping Film
  • Specification：CE, ISO9001: 2000
  • Trademark：Changyin
  • Origin：China
  • HS Code：84773000
  • Production Capacity：2000sets,Year

Description

Basic Info.

Model NO. SJ-Z Film Width 100-580mm Thickness of Film 0.04-0.15mm Heater 15kw Power 30kw Transport Package Wrapping Film Specification CE, ISO9001: 2000 Trademark Changyin Origin China HS Code 84773000 Production Capacity 2000sets/Year

Product Description

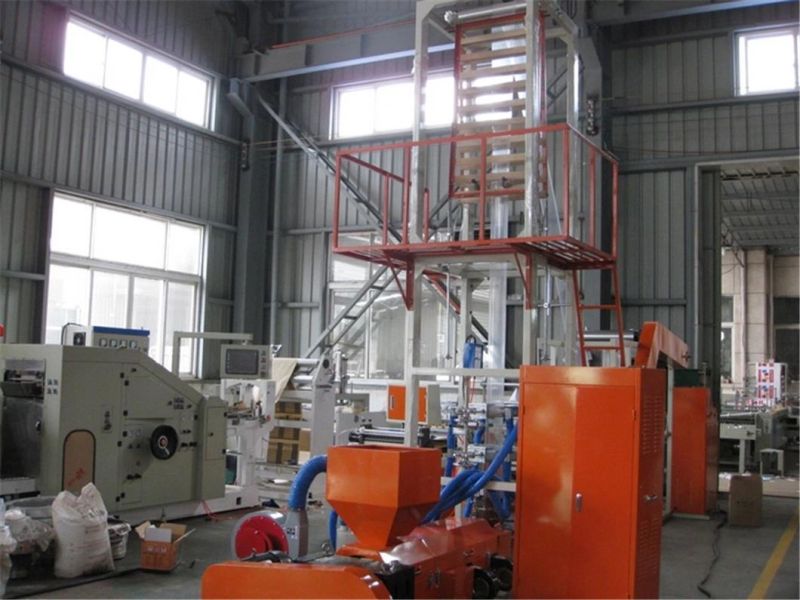

Zipper Bag Blowing Machine (SJ-Z)
Zipper Bag Blowing Machine (SJ-Z)
Zipper bag blowing machine
Model  SJ-Z55 SJ-Z65
Raw material                      LDPE(Density0.921)  LDPE(Density0.921)
Width of bag  50-450mm 200-550mm
Thickness of bag  0.03-0.10mm 0.03-0.15mm
Diameter of screw 55mm 65mm
L/D  28:1 28:1
Power of Auxiliary  0.75kw 1.1kw
Heater  12kw 15kw
Cooling  1.5kw 2.2kw
Power 25kw 28kw
Voltage  380v,50hz,3p 380v,50hz,3p
Output  5-30kg/hr 6-35kg/hr
Mould Head  70,80,100,130,160,180,200,230,270,300,350,450mm 70,80,100,130,160,180,200,230,270,300,350,450mm
Diemension (LX WXH) 6000*1600*4500mm 6000*1600*4500
Total Weight   1.5T 1.5T
Power of main motor  5.5KW 7.5KW
