• Model NO.：SJ-
• Computerized：Computerized
• Machine Weight：1.2 T
• Certification：CE, ISO9001:2008
• The Material Suitable for：LDPE, LLDPE, HDPE, Mlldpe, EVA.Eaa, etc.
• Film Thickness：0.02-0.15mm
• Automatic Grade：Automatic
• Structure：Section
• Transport Package：Simple Packing
• Specification：CE, ISO
• Trademark：YUNBANG
• Origin：China
• HS Code：84773090
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SJ- Computerized Computerized Machine Weight 1.2 T Certification CE, ISO9001:2008 The Material Suitable for LDPE, LLDPE, HDPE, Mlldpe, EVA.Eaa, etc. Film Thickness 0.02-0.15mm Automatic Grade Automatic Structure Section Transport Package Simple Packing Specification CE, ISO Trademark YUNBANG Origin China HS Code 84773090 Production Capacity 20 Sets/Month

Product Description

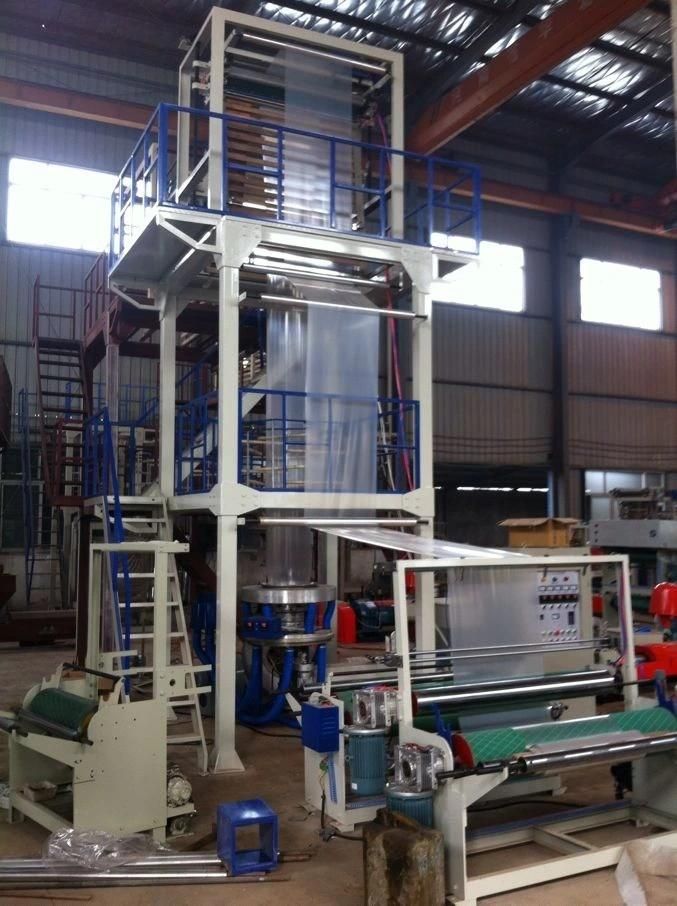

Film blowing machine, PE film blowing machine, pf film machine. Plastic film blowing machine, film


Machinery, plastic machinery, China film blowing machine

Use:
It applies to blow various LDPE, HDPE and LLDPE plasticfilms, widely applying to food, fruit, clothing, textile, vesttype bag and etc. Packingof civil industrial products.

Feature:

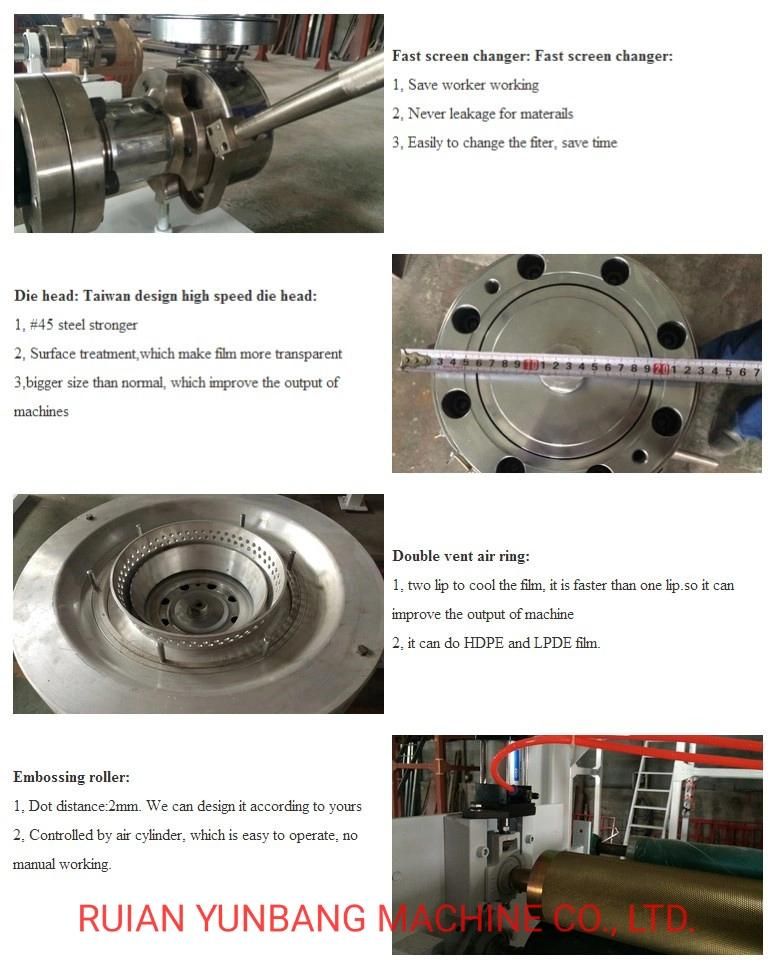

Mode SJ-65 squeezing machine is adopted rotatory die head, machine tube is adopted 38CrMoAl, having the best hardness and corrosion-resisting performance after nitrogen treatment and precision processing.

FM-600 auxiliary machine can adjust and operate freely within the range of 1000mm in accordance with the technological demand of different materials, and having package board mechanism which can make vest type bag.

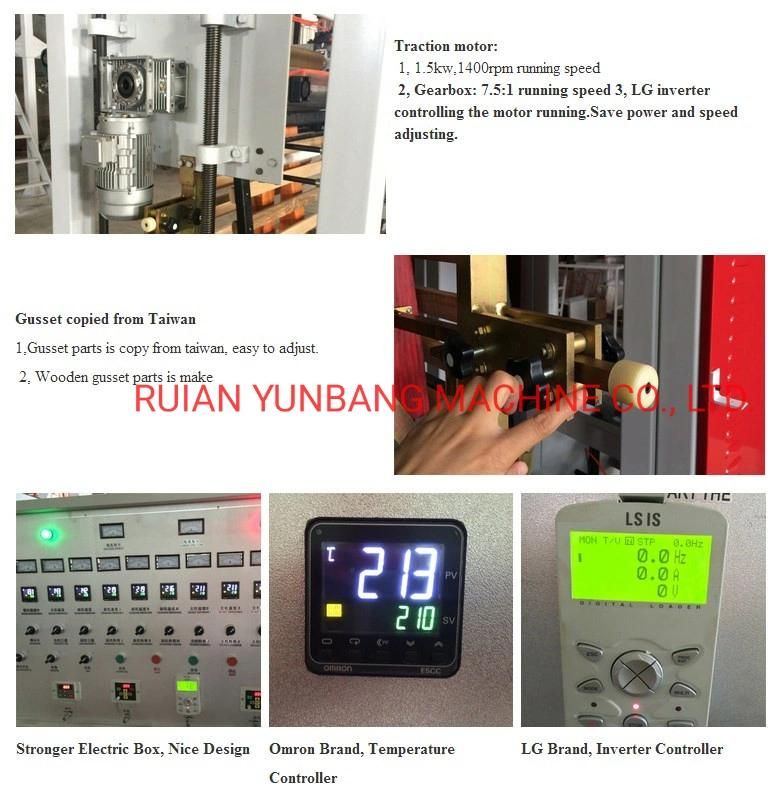

Rolling up device with double-drawing in and do-uble cutting ope, its power is adopted moment motor, with friction plate, it can keepsuitable tension, drawing in and rolling up in good order, easy to change roll.

Technology parameters:

Model		SJ-65-1000
The biggest film folding diameter	mm	1200
Film thickness	mm	0.008-0.10
Output		50-100
The material suitable for		LDPE,LLDPE,HDPE
Screw diameter	mm	Φ60
Screw the ratio length	L/D	28:1
The main motor power	KW	30
Screw speed	r/min	10-100
Weight	KG	3500
Total power	KW	42
Shape dimension	mm	5000×3000×4800
