• Model NO.：S-1000
• Knife Roll：Solid Knife Roller
• Automation：Automatic
• Computerized：Computerized
• Certification：CE
• Name：Plastic Single Shaft Shredder
• Used for：Plastic Recycle Industrial
• Transport Package：Wrap Film
• Specification：2975*2630*2460
• Trademark：Qiangye
• Origin：China
• HS Code：8479820090
• Production Capacity：20sets,Month

Basic Info.

Model NO. S-1000 Knife Roll Solid Knife Roller Automation Automatic Computerized Computerized Certification CE Name Plastic Single Shaft Shredder Used for Plastic Recycle Industrial Transport Package Wrap Film Specification 2975*2630*2460 Trademark Qiangye Origin China HS Code 8479820090 Production Capacity 20sets/Month

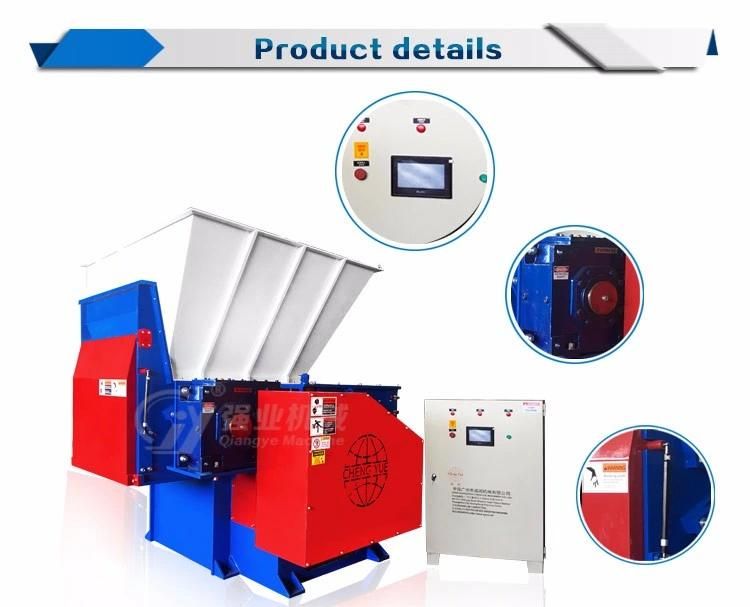

Product Description

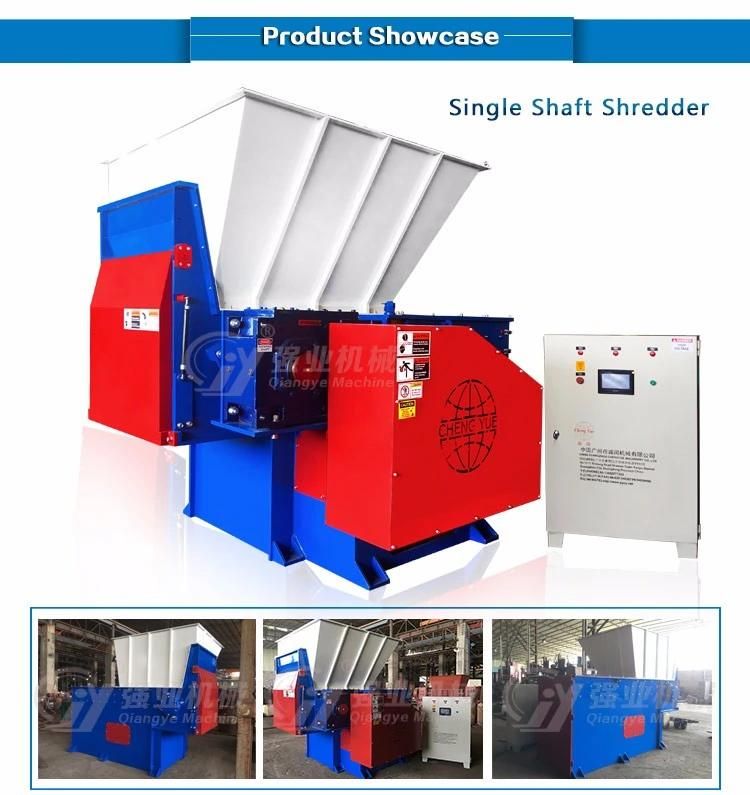

single shaft shredder /industrial shredders for waste materials,lumps,wove bags

 Main description:

 It is mainly used to crush various big solid material, unmanageable material, plastic container and barrel, plastic film, plastic pipe, fiber and paper, which the normal crusher can not handle.

Properties:
1. rotor blades on the knife holder and removable for easy cleaning, maintenance, maintenance;
2. knife with small "V" shaped installation, so turn the knife in the whole work cut material evenly, reduce energy consumption, reduce noise;
3. Each rotary blade has 4 cutting edges, the wear and tear can be rotated 90 ° to continue to use;
4. Each fixed blade has 2 cutting edges for working at the same time, the wear and tear can be rotated 180 ° to use;
5. main shaft is driven by a gear box, smooth operation, low noise, large torque;
6. hydraulic pusher, an independent power systems, solid structure, smooth operation;

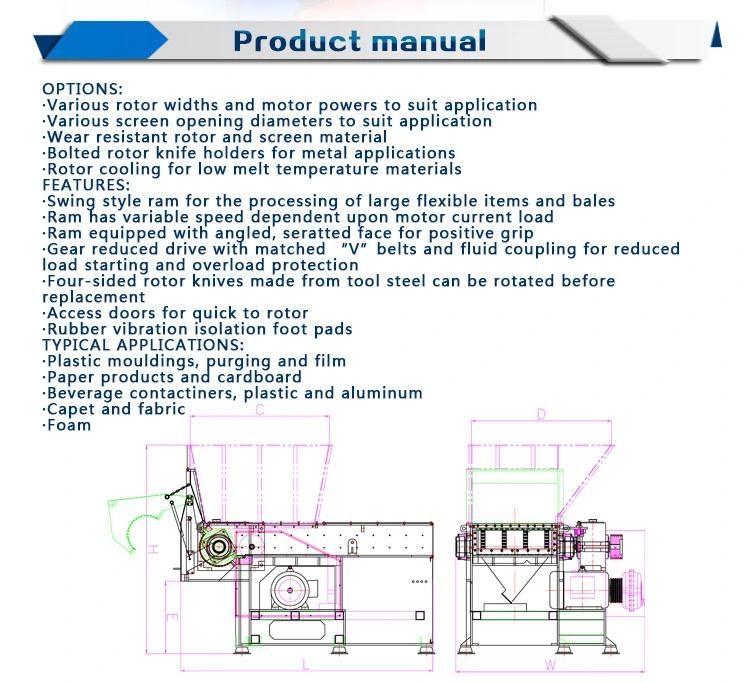

	S-600I	S-800I	S-1000I	S-1200I	S-1500I	S-1800I
L (mm)	1926mm	2975mm	2975mm	2975mm	3300mm	3300mm
W (mm)	1590mm	2250mm	2450mm	2630mm	2900mm	4770mm
H  (mm)	1904mm	2460mm	2460mm	2460mm	2750mm	2900mm
C  (mm)	1200mm	1630mm	1630mm	1630mm	1900mm	2200mm
D  (mm)	908mm	1450mm	1650mm	1830mm	2150mm	2450mm
E (mm)	642mm	855mm	855mm	855mm	920mm	920mm
Rotor diameter (mm)	Φ272mm	Φ430mm	Φ430mm	Φ430mm	Φ480mm	Φ480mm
Rotor width (mm)	600mm	800mm	992mm	1192mm	1492mm	1792mm
Motor power (KW)	22kw	37kw	45kw	55kw	75kw	90kw
Rotor speed (r/min)	82r/min	82r/min	82r/min	82r/min	82r/min	82r/min
Cutting chamber  size (mm)	760x610x253	1300x810x376	1300x1000x376	1300x1200x376	1700x1500x465	1700x1800x465
Screen mesh  size (mm)	Φ40mm or  customized	Φ40mm or  customized	Φ40mm or  customized	Φ40mm or  customized	Φ40mm or  customized	Φ40mm or  customized
Rotor knife quantity  (PCS)	28+4 pcs	66+4 pcs	84+4 pcs	102+4 pcs	126+4 pcs	150+4 pcs
Bed knife quantity  (PCS)	2x2 pcs	2x2 pcs	3x2 pcs	3x2 pcs	3x2 pcs	4x4 pcs
Hydraulic ram motor  (KW)	1.5kw	1.5kw	2.2kw	2.2kw	2.2kw	3kw
Total weight(KG)	2400kg	3900kg	4600kg	5500kg	7800kg	10500kg
