• Model NO.：HSD
• Condition：New
• Applications：Plastic Pipes
• Pipe Range：48mm-325mm
• Transport Package：Standard Package
• Specification：EN253, EN448, EN728, ISO1133, ISO8501-1. ISO9001
• Trademark：HSD
• Origin：Qingdao China
• HS Code：84772090
• Production Capacity：1000unit,Year

Basic Info.

Model NO. HSD Condition New Applications Plastic Pipes Pipe Range 48mm-325mm Transport Package Standard Package Specification EN253, EN448, EN728, ISO1133, ISO8501-1. ISO9001 Trademark HSD Origin Qingdao China HS Code 84772090 Production Capacity 1000unit/Year

Product Description

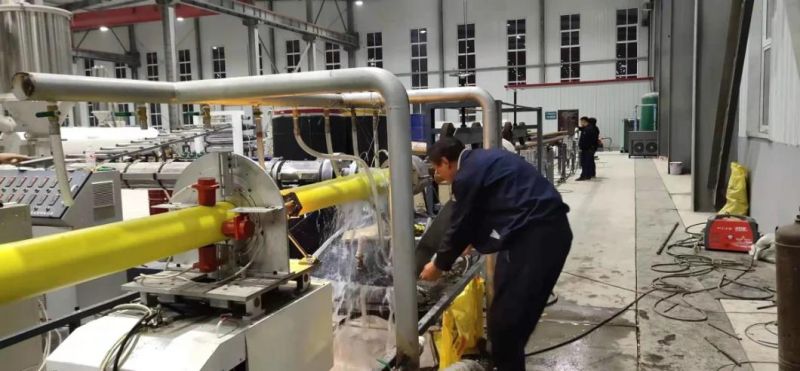

              Continue PU foam insulation plastic pipe extrusion machinery

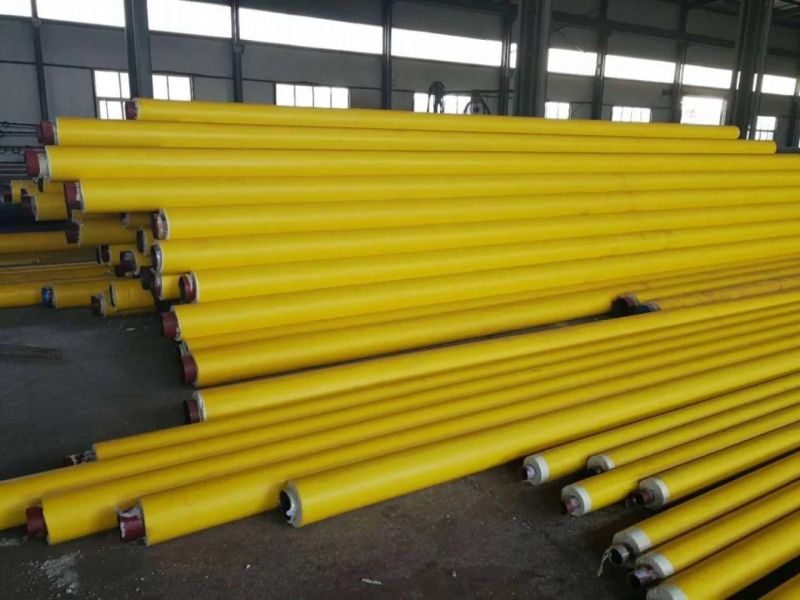

continue PU foam insulation plastic pipe extrusion machinery is used for small pipe dia. PU insualtion pipe making. Common pipe dia. scope is from 48-325mm.

Technology Process:

1.Up load pipe-----2.External derusting------3.Put label on pipe side-----4.Intermediate heating------5.external epoxy coating----6.Water cooling-----7.Coating layer detection-----8. Put adhesive on epoxy layer-----9.PE jacket coating------10. PU foaming-----11.Foaming rectification-------12.Pipe edge cutting----13.Water cooling---14.Pipe edge heat shrink sealing------15.Download pipe



Condition:

1. Place:   In room
2. Power:  No danger
3. Moisture: 85% 85% no condensation
4. Temperature: 0-30ºC

Working condition:

1. Power supply:  3. 380V(-10%,+5%) 50HZ
2. Installed:     850 KW About 850KW
3. Cooling water recycling:≤15ºC,0.15-0.2MPa,0.5m³/min

      Material:      HDPEHDPE pellets,  Hot melt adhesive, Epoxy powder

If you have interesting for this continue PU foam insulation pipe extrusion machine you can directly contact with us.
