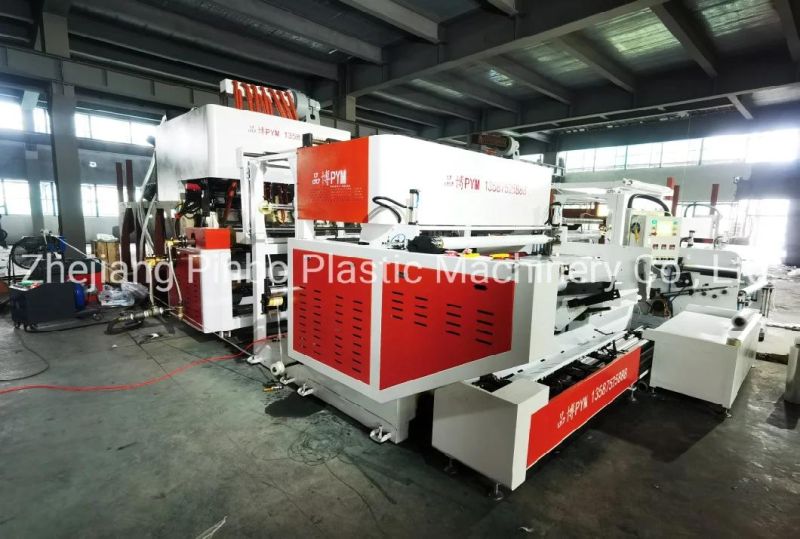

1500mm High Speed Multi Layer Plastic Stretch Film Cast Machine Group Production Line
Zhejiang Pinbo Plastic Machinery Co., Ltd.- After-sales Service：Life Time
- Warranty：1 Year
- Type：Film Extruder
- Plastic Processed：PE
- Product Type：Extrusion Molding Machine
- Feeding Mode：Multiple Feed
Base Info
- Model NO.：PB-L65,90,65X1850
- Assembly Structure：Separate Type Extruder
- Screw：Multi-Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Computerized
- Vlotage：Customized
- Power (Kw)：180kw
- Screw Diameter：90mmx1, 65mmx2
- Screw L/D Ratio：30:1
- Output (Kg/H)：180 - 280kgs
- Weight：15t
- Package：Plastic Film Wrapping
- Inverter：Delta Taiwan
- Transport Package：Standard Packing
- Specification：L12500,W5500,H3800
- Trademark：PYM
- Origin：Zhejiang Province Wenzhou City
- HS Code：84778000
- Production Capacity：200sets,Year
Description
- Easy operating, long life, energy saving
- Stable and reasonable extrusion
- High quality T-die for excellent film evenness and stability
- Enhanced cooling system
(adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller) - Advanced oscillation (swing) system
- Highest winding speed (up to 200m/min) among similar stretch film machines
- High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min
- Optional full automatic thickness gauge
- Excellent stretch film rolls quality for both hand use rolls and stretch use rolls

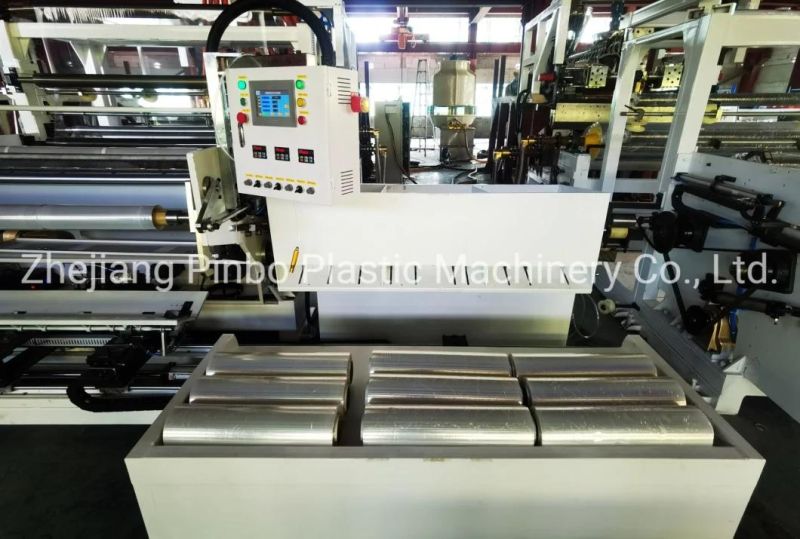

Option: (automatic roll discharge & auto paper core loading)
