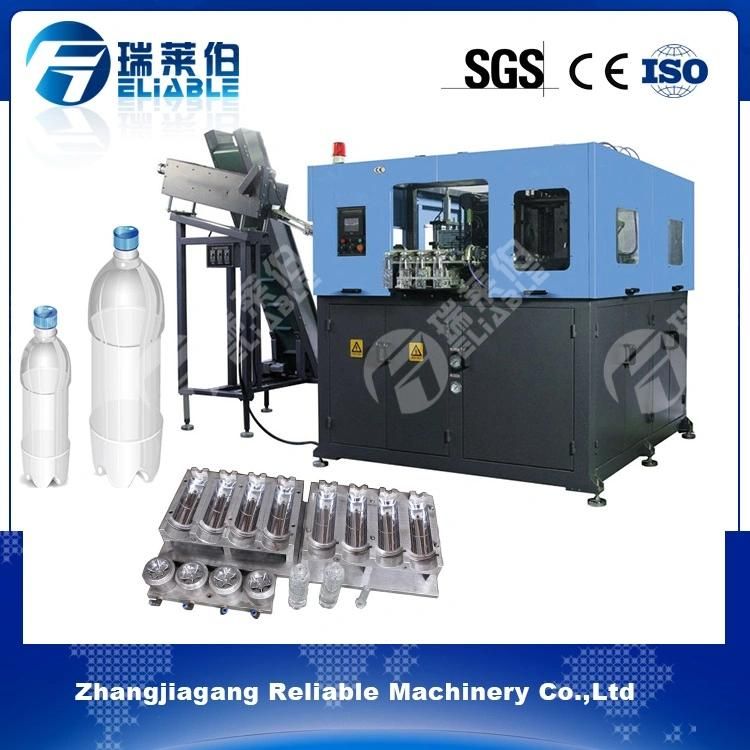

SUS304 Automatic Pet Bottle Blowing / Blow Molding Machine
Zhangjiagang Reliable Machinery Co., Ltd.- Type：Extrusion Blow Molding Machine
- Automatic Grade：Automatic
- Warranty：1 Year for Spare Parts
- Name：SUS304 Automatic Pet Bottle Blowing , Blow Molding
- Material：Stainless Steel 304L
- Color：Silver Gray
Base Info
- Model NO.：RM-4000
- Capacity：4000~4500bph
- Suitable Bottle：Pet Bottles
- Delivery：30 Days
- Control：PLC Screen Control
- Processing：Bottle Blowing
- Touch Screen：Mitsubishi, Siemens
- Raw Material：PET
- Making Method of Parison：Stretch Blow
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Transport Package：Wooden Package
- Specification：CE,SGS,ISO
- Trademark：RELIABLE
- Origin：China Jiangsu
- HS Code：8477209000
- Production Capacity：4000bph
Description
2.Easy to operate, just need feeding preform, other work is automatic.
3.Suitable for hot filling, PP, PET bottle blowing
4.Suitable for different preform neck size, it can change preform jigs very easily.
Mold replacement very easily.
5.Oven design in reasonable, adopt blowing-type, water cooling, air cooling all have. 6.Suitable for hot environment to work, the preform neck can't distortion.
7.The heating lamp adopt infrared quartz lamp, not easy to damager, it is different than 8.semi-auto blowing machine lamp. So it no need frequently to change lamp. The lamp life is long, even it is broken, it can use also.
9.Our hand feeding stretch blow molding machine can add autoloader+manipulator to became fully automatic.
10.Our Blow Moulding Bottle Machine is more safety and stabilization.
11.Our clamping unit adopt clooked arm configuration self-lubricating system. So very stabilization and no noise.
| General Information | RM-4000D |
| Clamping Force | 370KN |
| Clamping Stroke | 120~175mm |
| Max Strecthing Stroke | 370mm |
| Bottom Moving Stroke | 70mm |
| Number of Cavities | 4 |
| Theoretical Output | 4000BPH |
| Max Mould Thickness | 250mm |
| Space Between Tie Bras | 640*380mm |
| Voltage Standard | 380V 3PH 50Hz or special order |
| Number of Heating Zone | 4 Sections |
| Total Power | 45KW |
| Max Volume of Contanier | 1.5L |
| Neck Diameter Range | 16~38mm |
| Max Diameter of Contanier | 110mm |
| Max Height of Contanier | 380mm |
| Low Air Compressor | 10Bar |
| High Air Compressor | 30~40Bar |
| Blow Molding Machine | 2.55*1.5*2.0m |
| Preform Auotloader | 1.1*1.2*2.2m |
| Net Weight | 3.5T |
SUS304 Automatic PET Bottle Blowing / Blow Molding Machine
SUS304 Automatic PET Bottle Blowing / Blow Molding Machine
Well-trained & experienced staff are to answer all your inquiries in English and Chinese
Working time: 8:30am ~6:00pm, Monday to Friday(UTC+8).
OEM & ODM projects are both available
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back to us if you got any questions.
A1:Beverage filling machine for water,juice and carbonated drink;Packing system;PET bottle blowing machine;Injection molding machine.etc.
Q2:How can we get your products?
A2:Find our products through Reliable Machinery Co.,Ltd in Google ,Baidu. Bing ,Yahoo, reliable-machinery.en.made-in-china.com etc
Q3:How to tell you our enquiry?
A3:Contact us by email, phone call, fax, Instant Messenger (Trademanager, MSN, Skype) and let us know your inquiry.
Q4: Where is your factory?

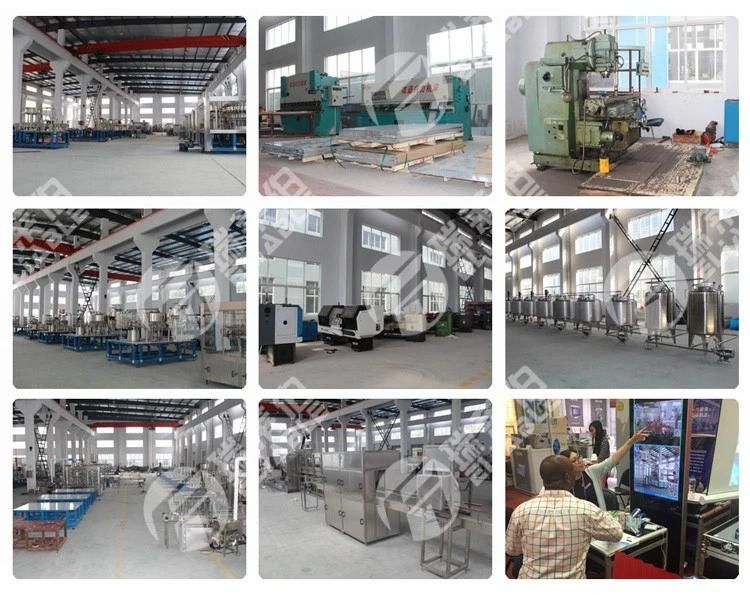

A4: Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi. If you fly to Shanghai or Wuxi, we can pick you up to visit our factory.
Q5: Can you send engineer to our local place for installation?
A5: Yes, If you need, we will arrange engineer for you, and we can provide turn-key project.
