• Model NO.：HY-54,76
• Raw Material：BOPS, PVC, Pet,HIPS,PS
• Application：Containers,Boxes,Lids,Trays
• Processing Type：Plastic Thermoforming Machine
• Plastic Type：Plastic Packing
• Max. Forming Area：540*760 mm
• Max. Forming Depth：120mm
• Thickness of Sheet：0.15-1.0mm
• Production Speed：600-1200 Cycles,Hr
• Machine Dimension：5000*1750*2500 mm
• Weight：4800kg
• Transport Package：Wooden Case
• Specification：540*760
• Trademark：Hongyin
• Origin：Zhejiang, China
• HS Code：847780000
• Production Capacity：20sets,Year

Basic Info.

Model NO. HY-54/76 Raw Material BOPS/ PVC/ Pet/HIPS/PS Application Containers/Boxes/Lids/Trays Processing Type Plastic Thermoforming Machine Plastic Type Plastic Packing Max. Forming Area 540*760 mm Max. Forming Depth 120mm Thickness of Sheet 0.15-1.0mm Production Speed 600-1200 Cycles/Hr Machine Dimension 5000*1750*2500 mm Weight 4800kg Transport Package Wooden Case Specification 540*760 Trademark Hongyin Origin Zhejiang, China HS Code 847780000 Production Capacity 20sets/Year

Product Description

I. Introduction With The Machine

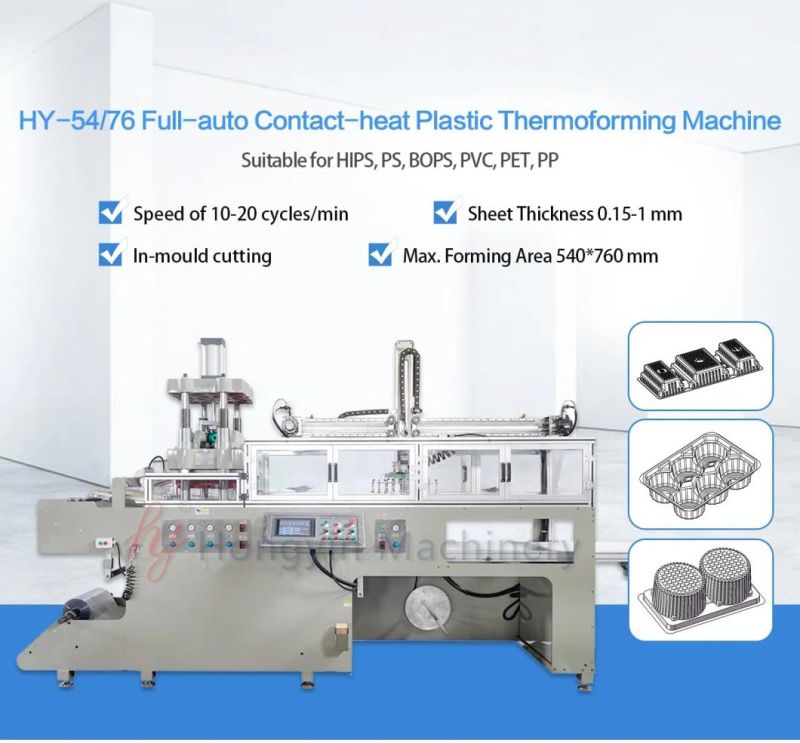

    HY-54/76 plastic thermoforming machine is a combination of mechanical, electrical and pneumatic components, and
the whole system is controlled by a micro PLC, which can be operated in man-interface.

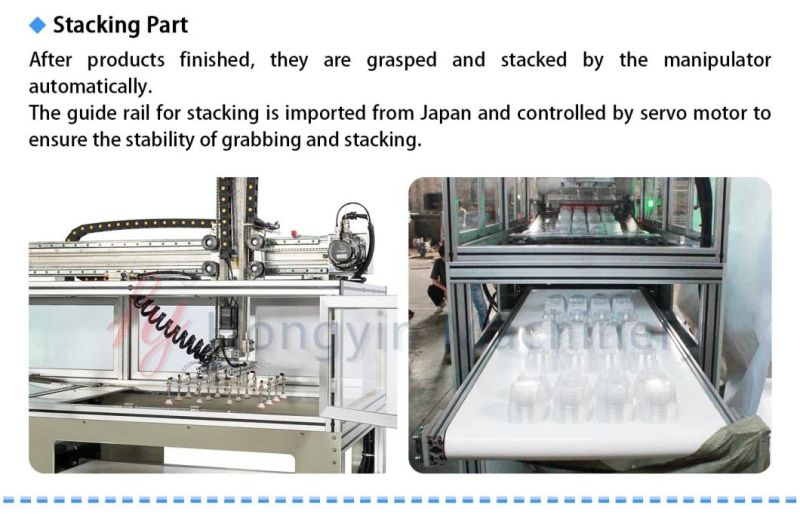

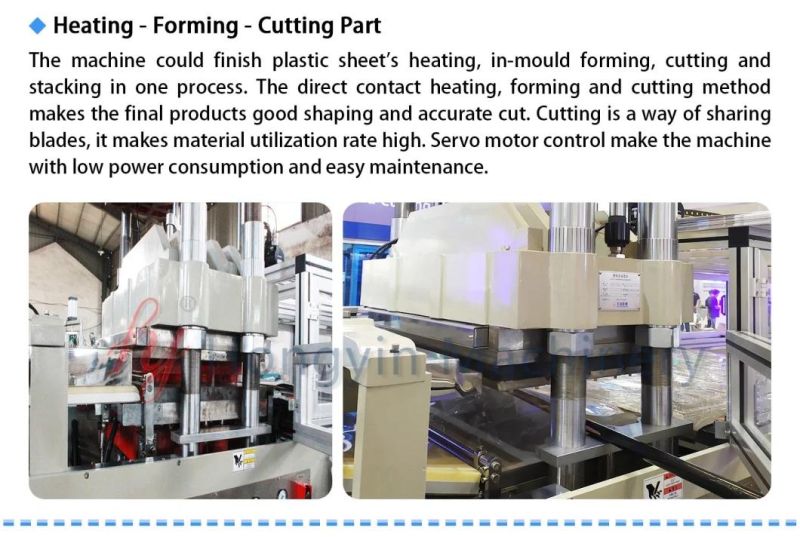

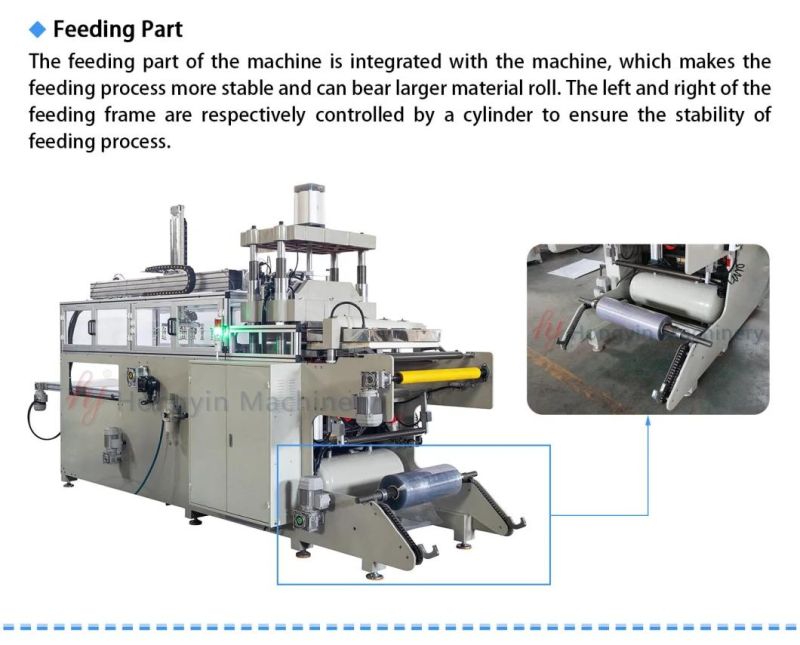

    It combines the material sending, heating, forming , cutting and stacking counting into one process. It has three operation models. " manual", " semi-automatic" and "automatic, so it is a new generation ideal package equipment with telecommuting and memory reserve functions.

II. Application Area

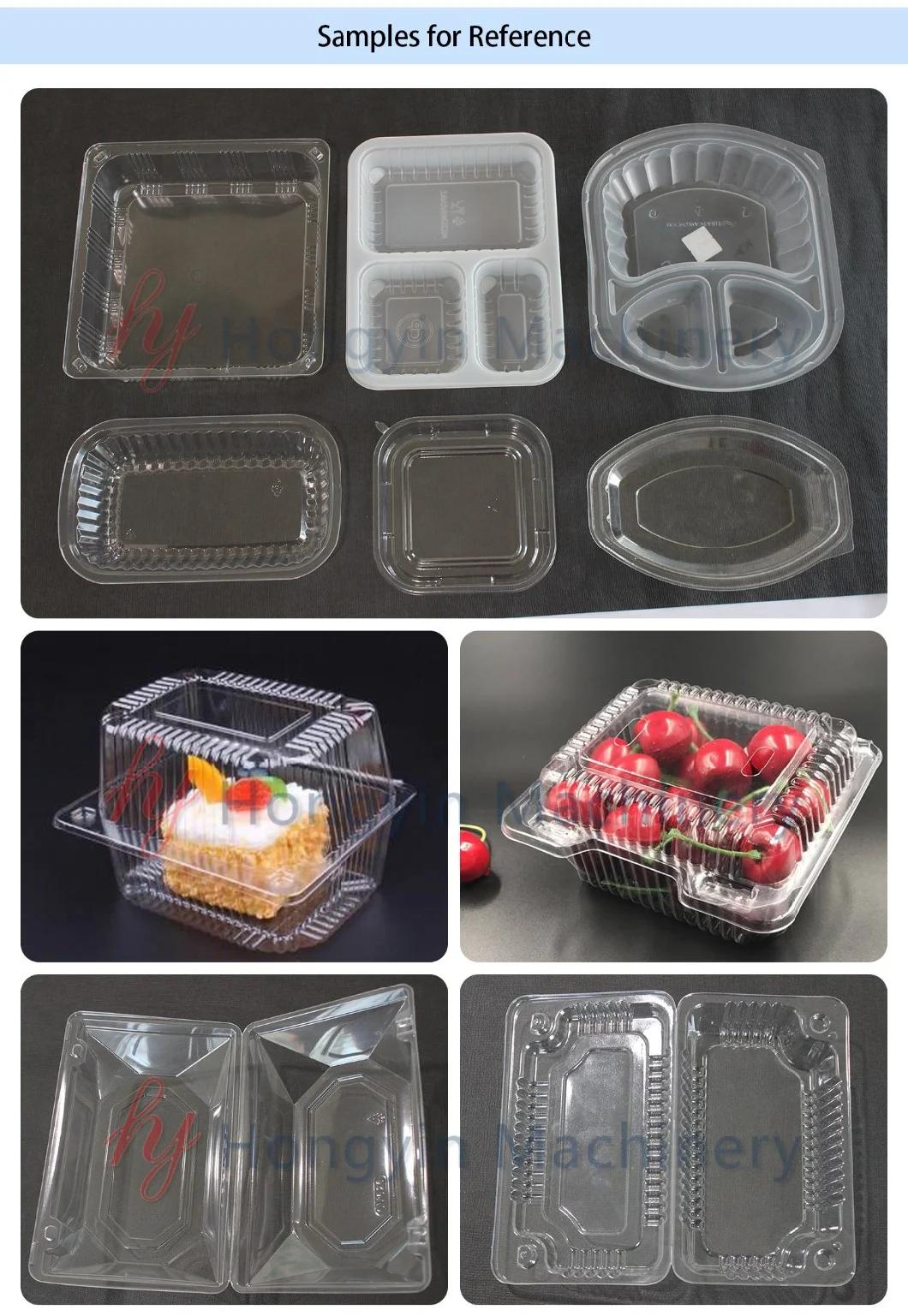

HY-54/76 fully automatic plastic forming machine is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.

Specifications

Forming Area	540× 760mm
Forming Depth	120mm
Sheet Thickness Range	0.15-1.0 mm
Sheet Roller Diameter	710mm
Air Pressure	0.7 Mpa
Water Consumption	15 Liters/min(15-20ºC)
Air Consumption	2400 Liters/min
Production Speed	600-1200 recycles/hr.
Voltage	Tri-phase, AC380V±15V, 50HZ

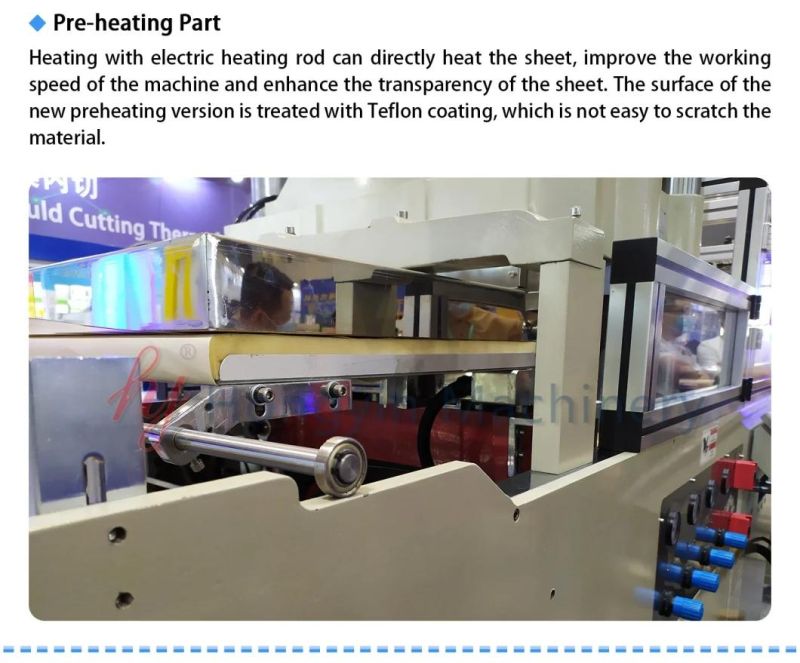

Preheating Power	4 kw
Mould Plate Heating Power	9 kw
Heating Plate Power	18 kw
Weight	4800kg
Dimensions(L×W×H)mm	5000×1750×2500

About Ruian Hongyin Machinery Co., Ltd Service.

1. Pre-sales Service
Hongyin MACHINERY has a specialized and efficiency working team. If you are new on the plastic forming machine area, we are glad to give you specialized suggestion of the whole work.

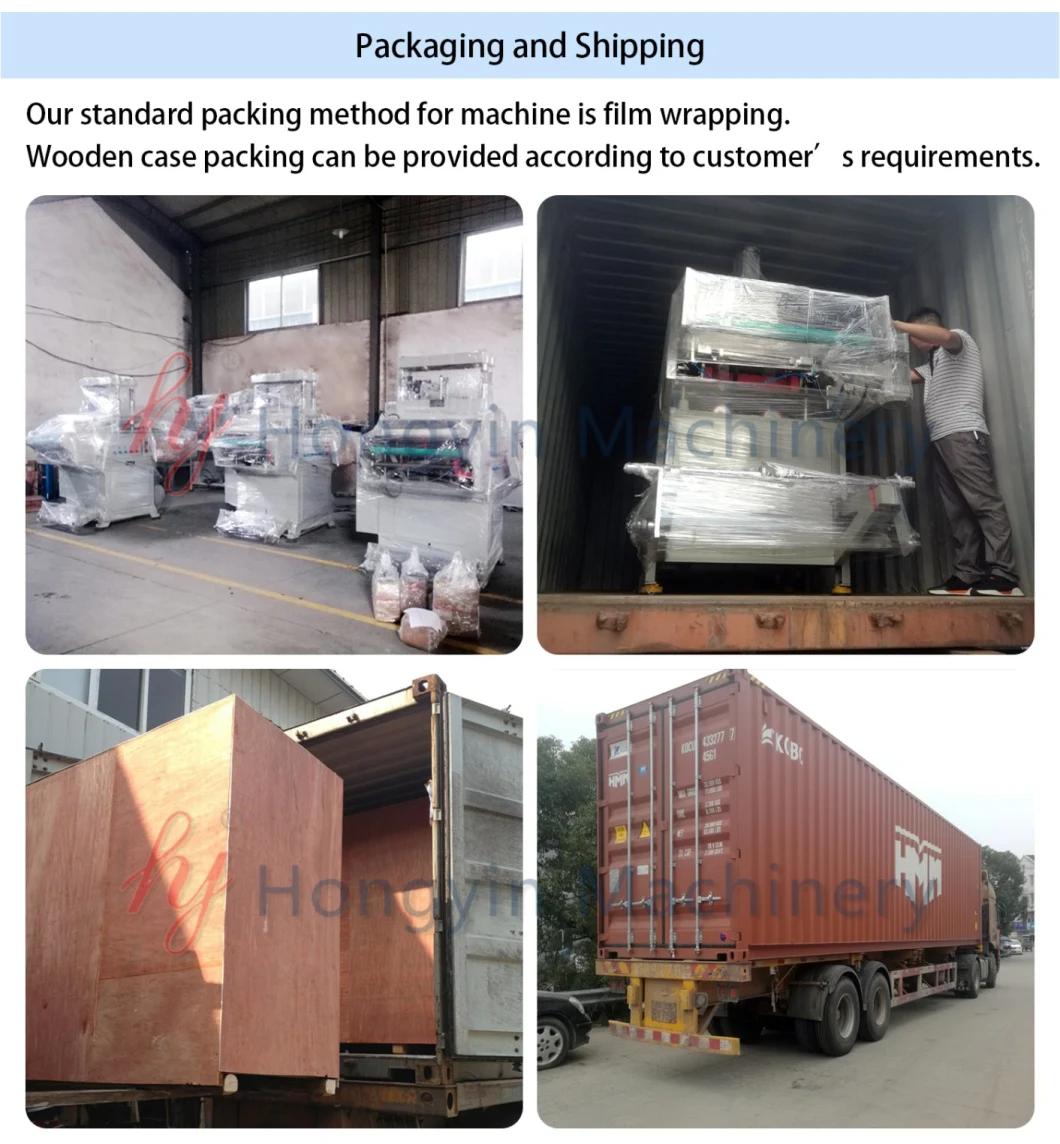

2. Shipping Service
Hongyin MACHINERY has a specialized and independent department to arrange the shipment. We will prepare all the necessary documents so as to arrange the delivery smoothly.
We cooperate with the most famous shipping company in China, they could provide the best and economic shipping ways to the destination.
3. Installation Services
Installation Services are available with all Hongyin Company machines. We could dispatch technician to the Buyer's factory for installation and preparation of the machines.
The buyer needs to supply the round trip tickets, food, hotel cost and daily salary.
4. Clients Training Services
The buyer could also send your own technician come to Hongyin factory to learn how to operate machines. Our technician will teach and train the learners hand by hand till he
can operate machine by himself.
5. After Sales Service
Hongyin Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.


If you are interested in our machine, please feel free and contact me.
