• Model NO.：HY-54,76
• Raw Material：BOPS, PVC,Pet, HIPS,PS,PP
• Processing Type：Plastic Thermoforming Machine
• Plastic Type：Plastic Packing
• Max. Forming Area：540*760 mm
• Max. Forming Depth：120mm
• Production Speed：600-1200 Cycles,Hr
• Thickness of Sheet：0.1-1.0 mm
• Max. Sheet Roller Dia.：710mm
• Machine Dimension：5000*1750*2500 mm

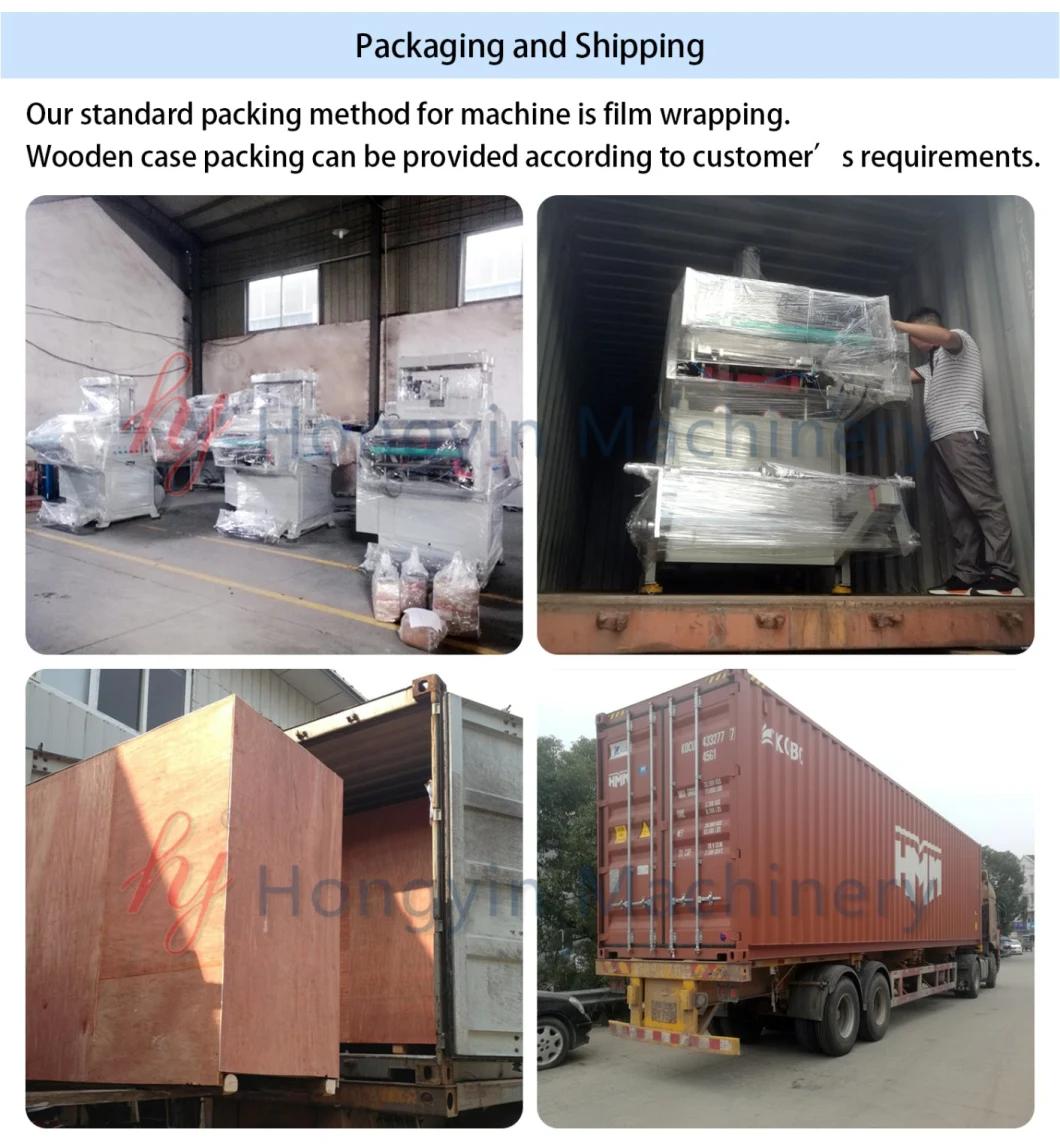

• Transport Package：Wooden Case
• Specification：540*760
• Trademark：Hongyin
• Origin：China
• HS Code：847780000
• Production Capacity：20sets,Year

Basic Info.

Model NO. HY-54/76 Raw Material BOPS/ PVC/Pet/ HIPS/PS/PP Processing Type Plastic Thermoforming Machine Plastic Type Plastic Packing Max. Forming Area 540*760 mm Max. Forming Depth 120mm Production Speed 600-1200 Cycles/Hr Thickness of Sheet 0.1-1.0 mm Max. Sheet Roller Dia. 710mm Machine Dimension 5000*1750*2500 mm Transport Package Wooden Case Specification 540*760 Trademark Hongyin Origin China HS Code 847780000 Production Capacity 20sets/Year

Product Description

Application:

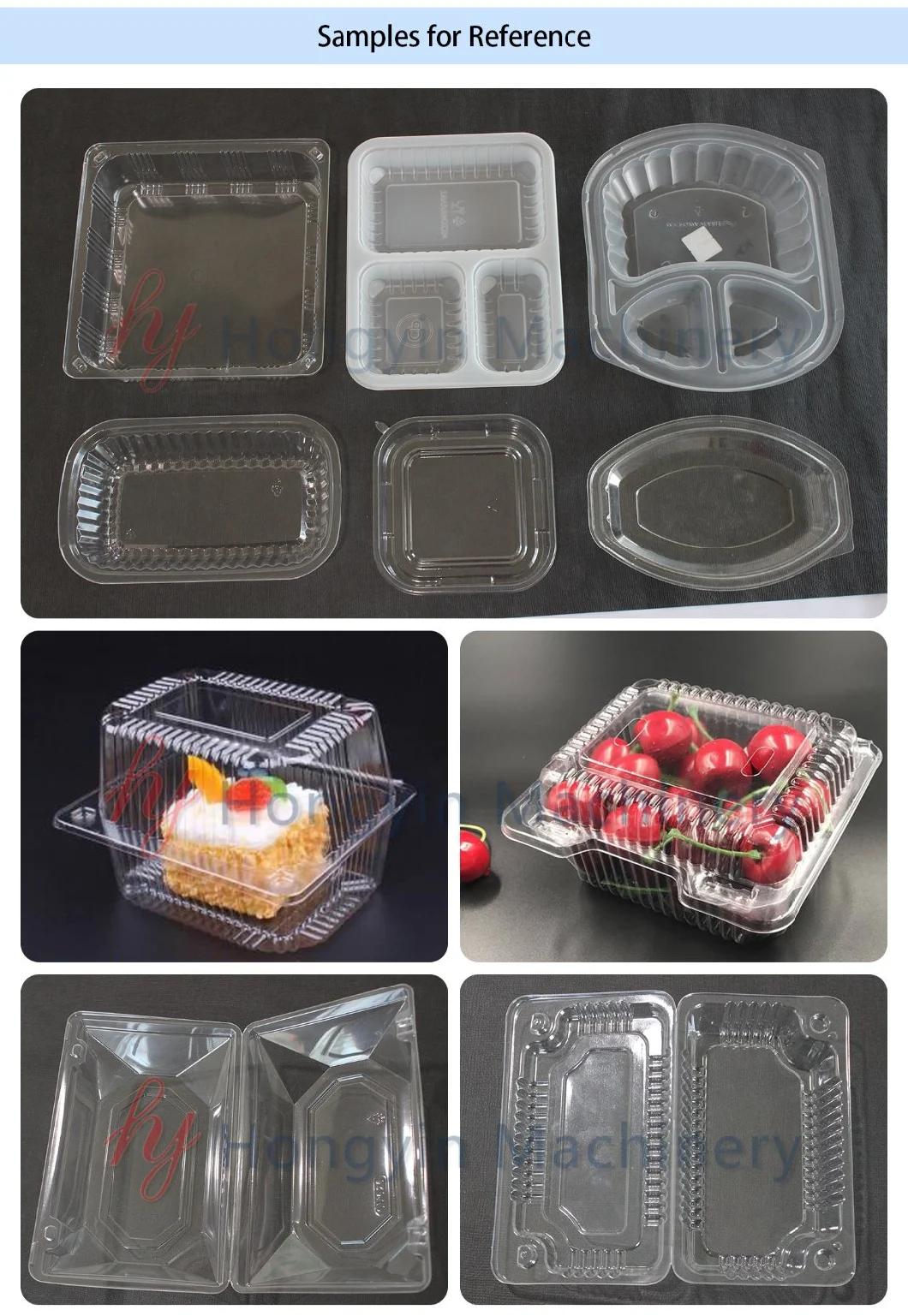

HY-54/76 automatic forming machine is suitable to form PP, BOPS, HIPS, PS, PVC, and PET plastic sheets, etc.,
which can produce various boxes, dishes, trays, bowls, and lids, such as food boxes, cake boxes, fast-food
boxes, supermarket trays, oral liquids trays, etc.
Introduction of The Machine:

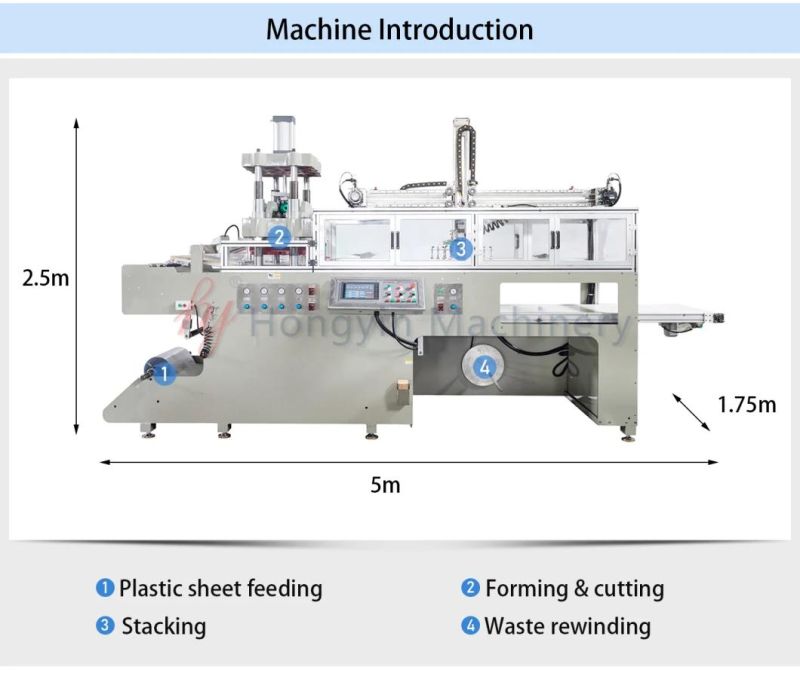

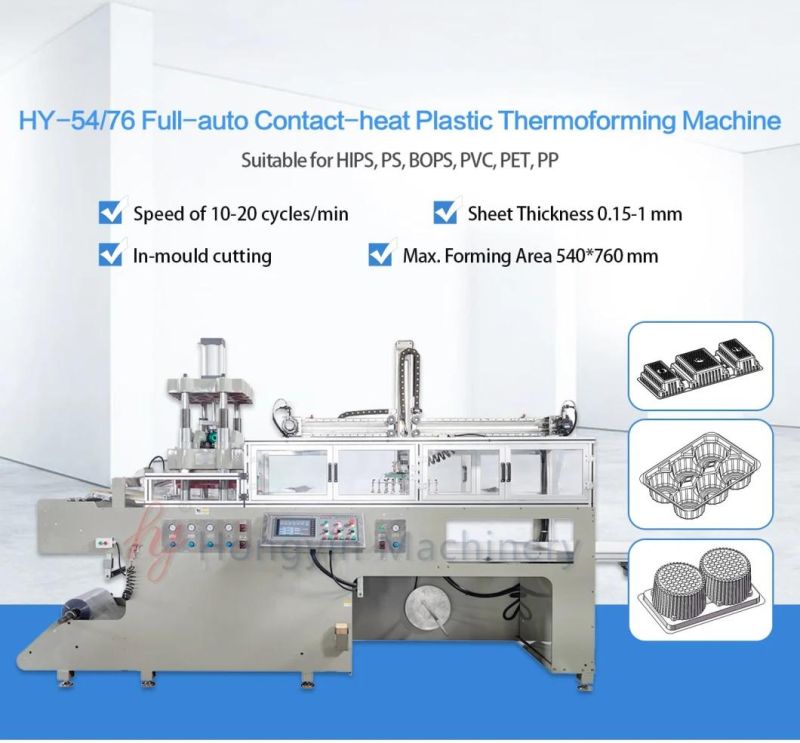

HY-54/76 plastic thermoforming machine is a combination of mechanical, electrical, and pneumatic
components and the whole system was controlled by a micro PLC, which can be operated in a man-interface.

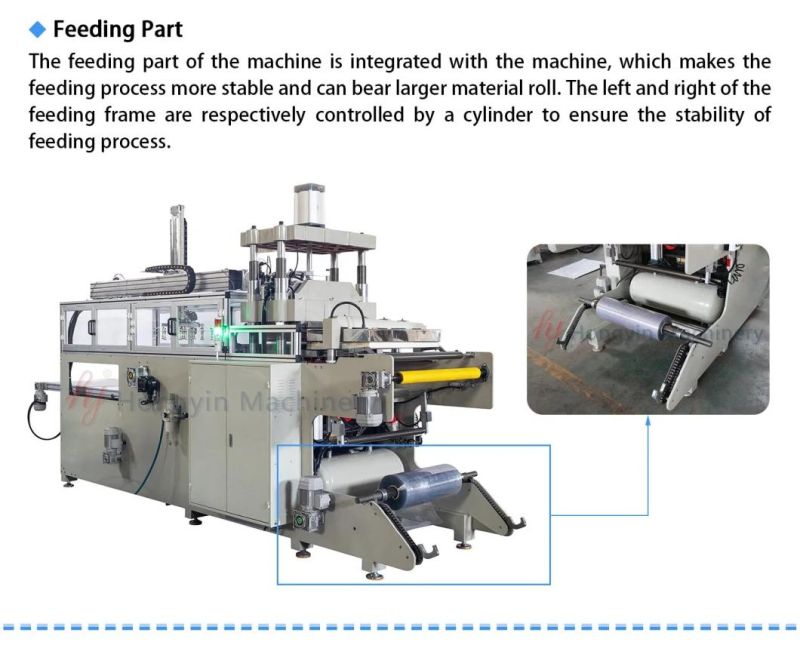

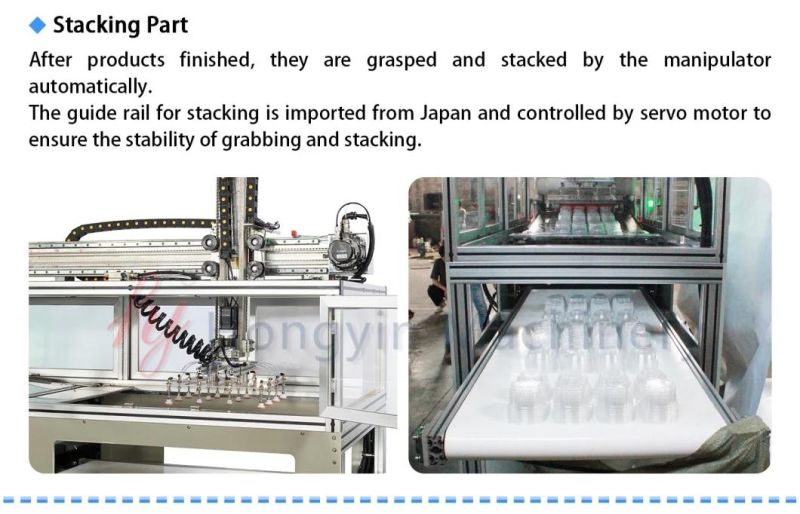

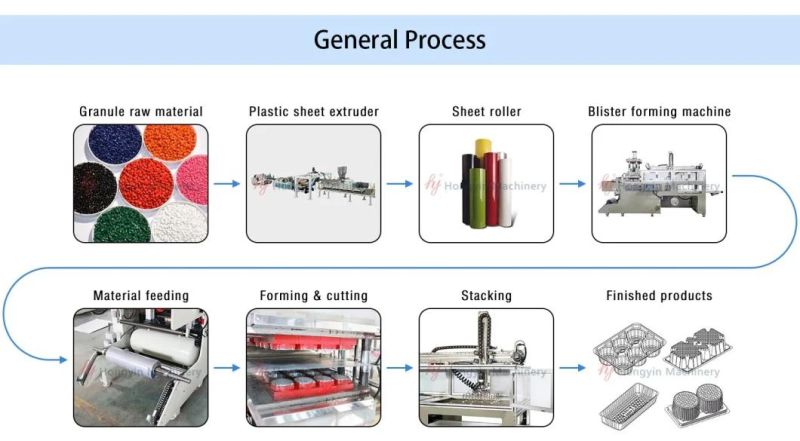

It combines the material sending, heating, forming, cutting, and stacking counting into one process.

It has three operation models. " manual", " semi-automatic" and "automatic, so it is a new generation ideal
package equipment telecommuting and memory reserve functions.
Specification:

Forming Area	540× 760mm
Forming Depth	120mm
Sheet Thickness Range	0.15-1.0 mm
Sheet Roller Diameter	710mm
Air Pressure	0.7 Mpa
Water Consumption	15 Liters/min(15-20ºC)
Air Consumption	2400 Liters/min
Production Speed	600-1200 recycles/hr.
Voltage	Three-phase, AC380V±15V, 50HZ
Preheating Power	4 kw
Mould Plate Heating Power	9 kw
Heating Plate Power	18 kw
Weight	4800kg
Dimensions(L×W×H)mm	5000*1750*2500 mm

About Zhejiang Hongyin Machinery Co., Ltd Service.

1. Purchase Service
Ruian Hongyin Company has a specialized and efficient working team. If you are new on the printing and
packing area, some samples of your products shown to us will be appreciated, and we will give you
professional suggestions of the whole work.

2. Installation Service
Hongyin company will assign 1 technician to coordinate installation, commissioning, and training.
The cost for the return flight and suitable accommodation will be charged, and the allowance is USD100 per day.

3. Warranty Service
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping costs for easy broken parts to be replaced during the warranty period have to be borne by the customer.
 If you are interested in our machine, please feel free and contact me.
Contact: Ms. Lynn
