LDPE Packaging Three Layers Blown Film Machine

Ruian Hoin Machinery Co., Ltd.
  • After-sales Service：Technical Support Online
  • Warranty：One Year
  • Type：Multi-Layer Co-extrusion Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：2200mm
  • Screw Diameter：60mm

Base Info

  • Model NO.：F3B-RD
  • Automation：Automatic
  • Computerized：Computerized
  • Machine Weight：8T
  • Certification：CE, ISO9001:2008
  • Multilayer：LDPE LLDPE HDPE
  • Screw：3 Sets
  • Screw Ratio：30:1
  • Capacity of Extruding：90-200kgs
  • IBC Inner Cooling：Optional
  • Corona Treater：Optional
  • Horizontal Ratote：Optional
  • Transport Package：Stretch Film or Wooden Case
  • Specification：CE, ISO9001 certificate
  • Trademark：HOIN
  • Origin：Ruian, Zhejiang, China
  • HS Code：8477309000
  • Production Capacity：3 Set,Month

Description

MLLDPE  LLDPE LDPE  EVAPower of main motor11kw×311kw15kw×11kw15kw/18.5kw/15kwMax. Extrusion Output90kg /h100kg /h120kg /hMatrix specificationφ 200mmφ 250mmφ 300mmSingle-face Thickness of film0.02 -0.10mm0.02 -0.10mm0.02 -0.10mmMax. Reduced diameter of film800mm1000mm1200mmelectric capacity70kw80kw90kwMachine of weight18000kg20000kg22000kgOverall diameter(L×W×H)8800×4600× 8000mm9000×4800× 8500mm9700×5000× 9000mm

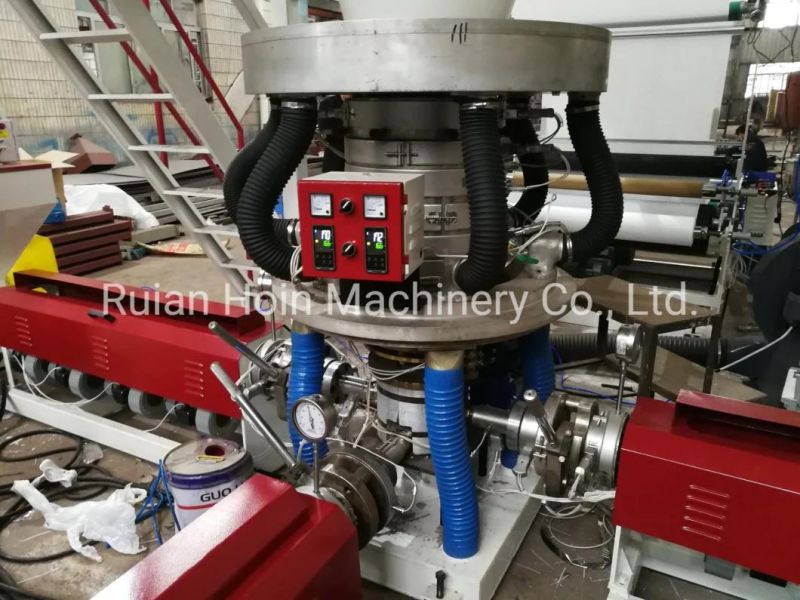

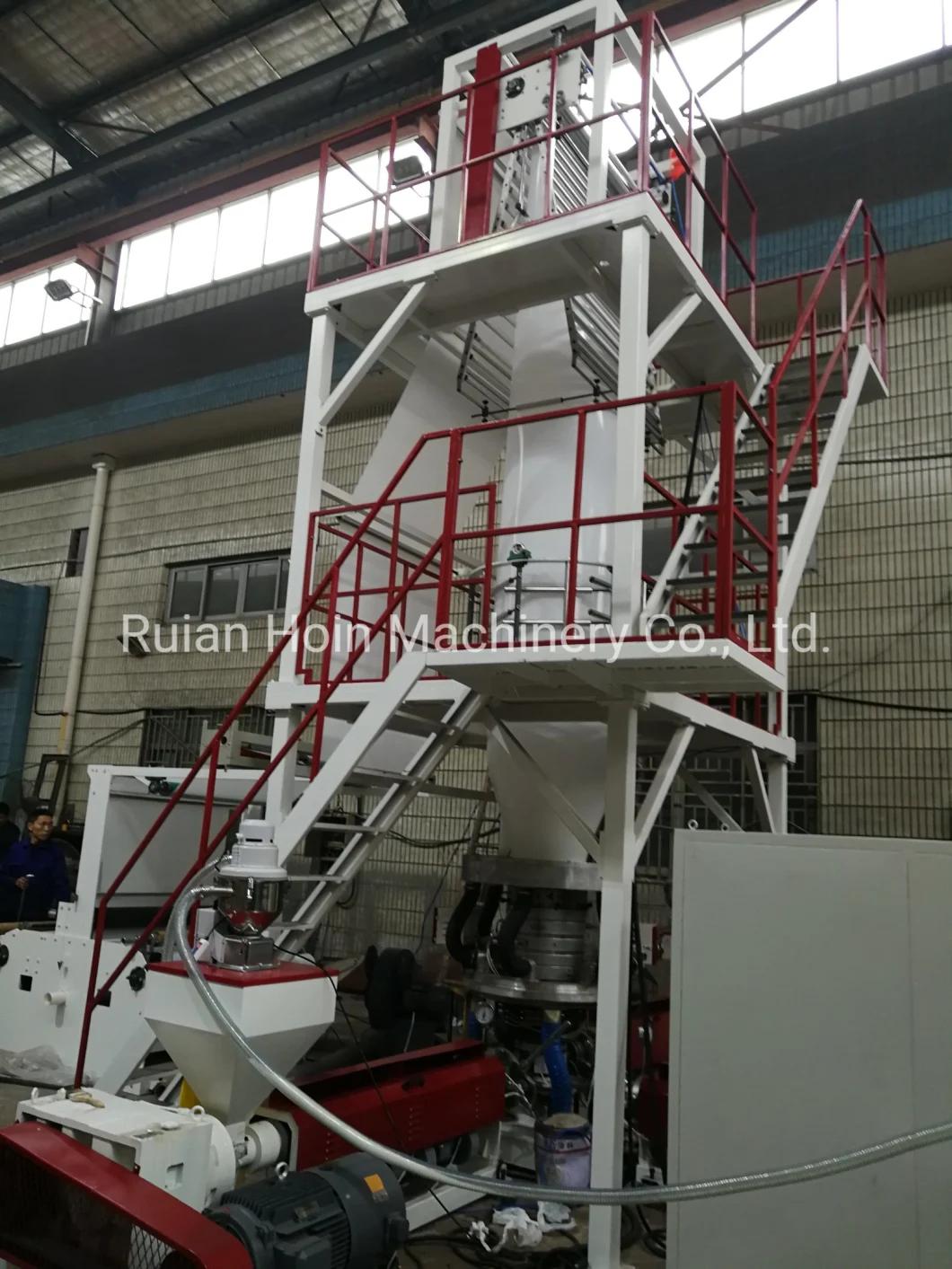

MACHINE PICTURES FOR REFERENCE:

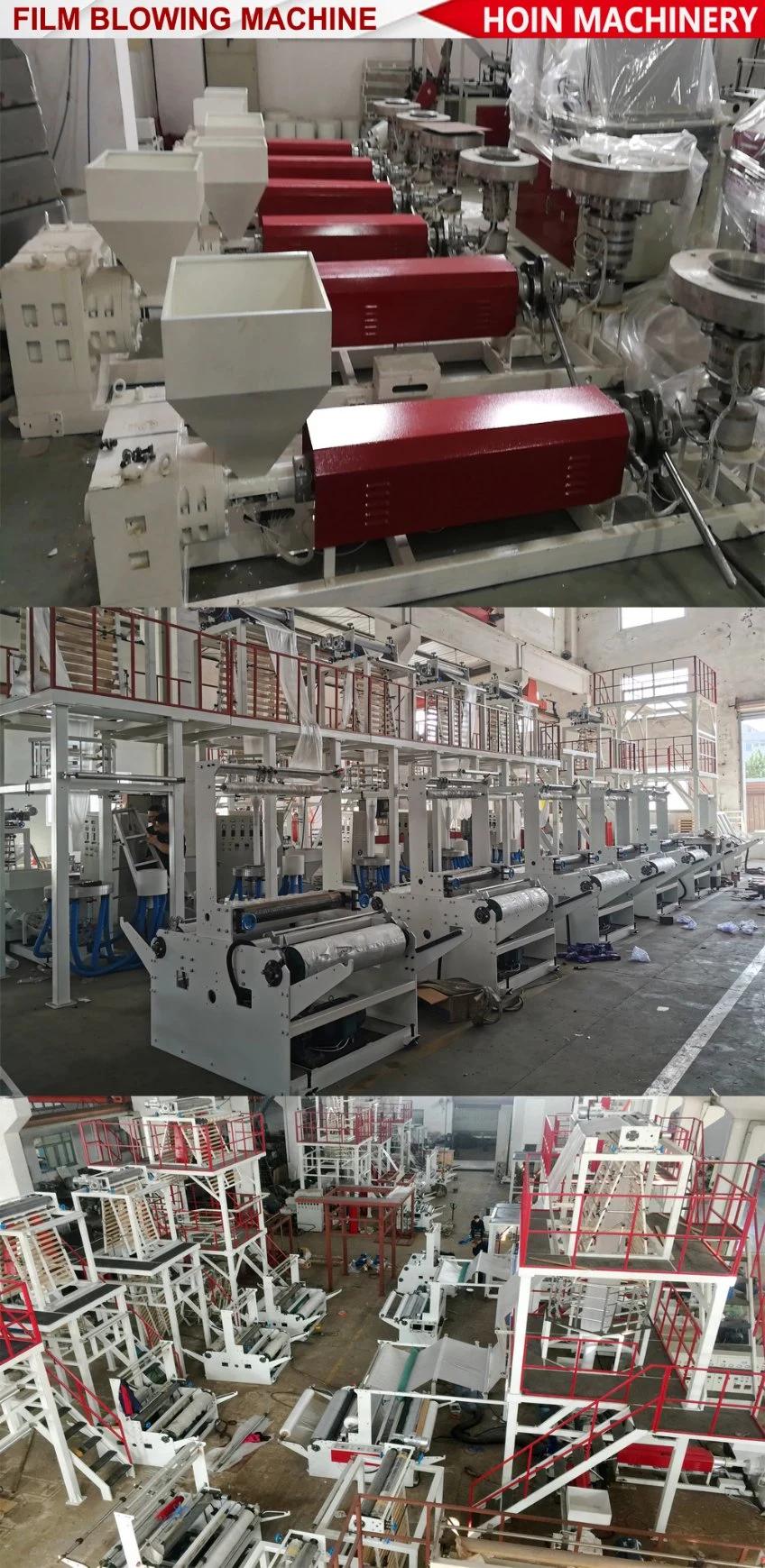

LDPE Packaging Three Layers Blown Film MachineLDPE Packaging Three Layers Blown Film MachineLDPE Packaging Three Layers Blown Film MachineWORKSHOP OF HOIN
LDPE Packaging Three Layers Blown Film MachineLDPE Packaging Three Layers Blown Film MachineLDPE Packaging Three Layers Blown Film MachineLDPE Packaging Three Layers Blown Film Machine
