Three Layers Tower Rotation Coextrusion Blown Film Machine
Ruian Hoin Machinery Co., Ltd.- After-sales Service：Technical Support Online
- Warranty：One Year
- Type：Multi-Layer Co-extrusion Film Blowing Machine
- Raw Material：LDPE,HDPE,LLDPE
- Maximum Folding Width of Film：2200mm
- Screw Diameter：55mm
Base Info
- Model NO.：F3B-TR
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Factory Manufacture：Ruian, China
- Multi Layers：3-7 Layers
- Die Head：Rotary Die Head
- Usage：Packing Fresh Fruit,Meet-Feeding,Salt-Vegetable
- Optional Part：Auto Winding Changer
- Optional Parts：IBC
- Transport Package：Stretch Film or Wooden Case
- Specification：CE, ISO9001 certificate
- Trademark：HOIN
- Origin：Ruian, Zhejiang, China
- HS Code：84773010
- Production Capacity：20set,Month
Description
±360° Horizontal±360°Total power(kw) 120 140 160 200 Weight (T) 12 14 16 20 Dimension LxWxH(M) 9.5x5x9 10x5.5x9.5 10x6x10.5 10.5x7x11
C: Details Information
1. Extruder Unit

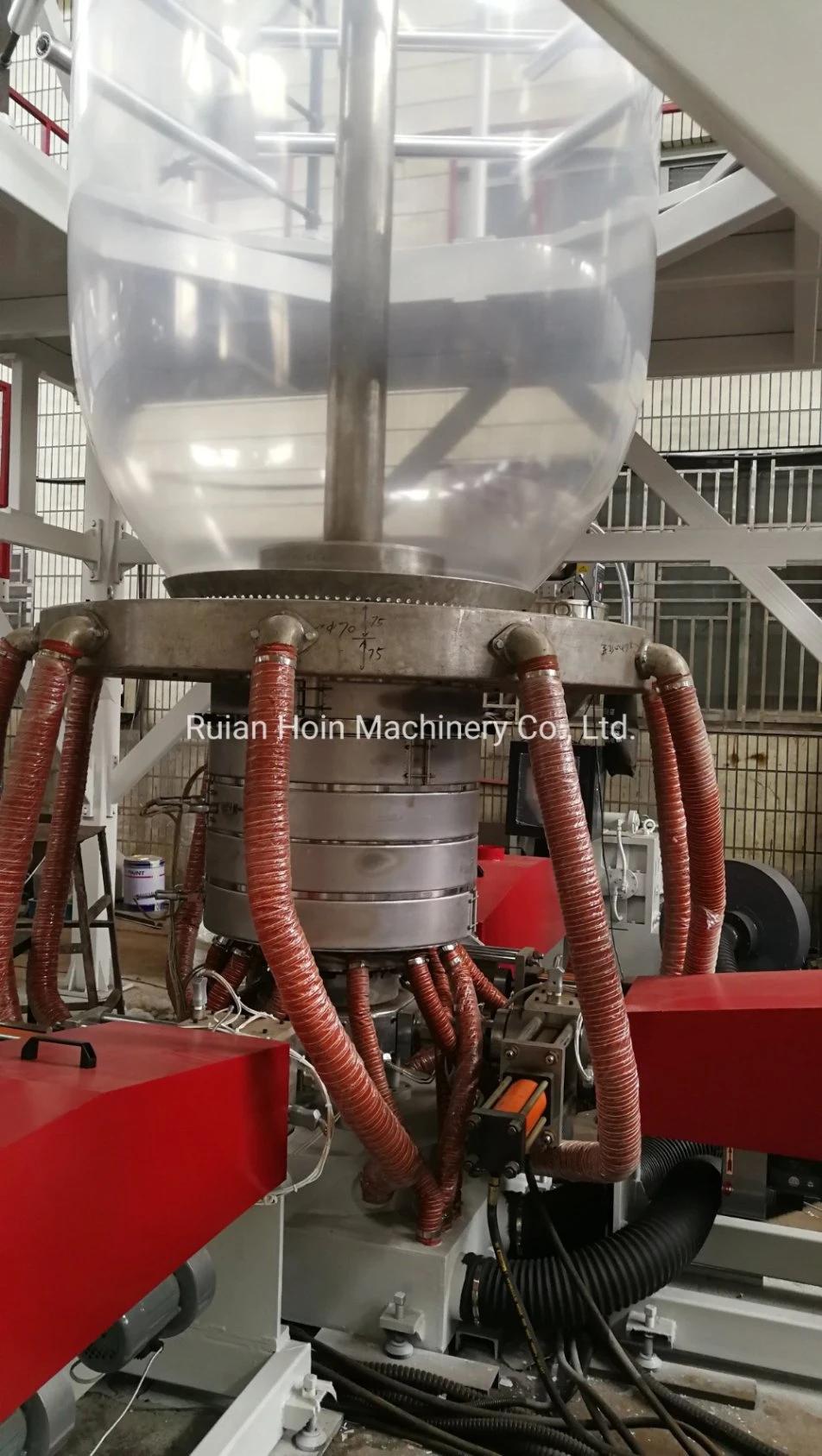

Die Head Material: Cr40 Mould Steel
Die Head: Fixed Straight Type
Screw and Barrel Material: 38CrMoALA
Heating Ring Material: Cast Aluminum
Screen Changer: Hydraulic Screen Change
Gear Box: Hard Tooth Surface Gear Box
Cooling System:IBC
2. Take Up Section

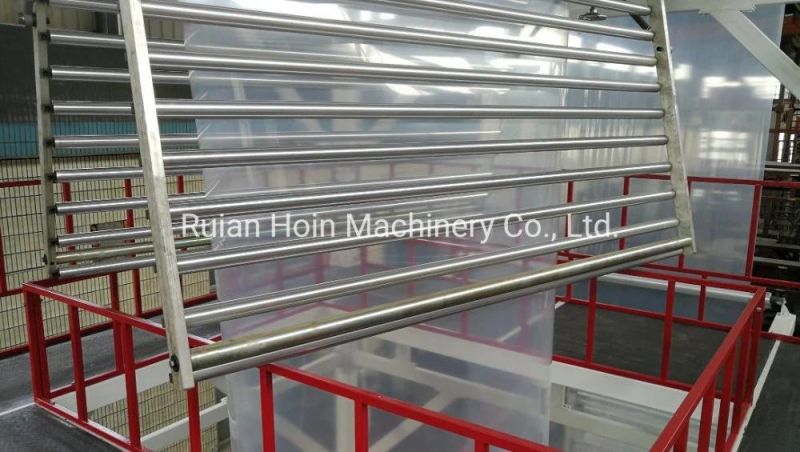

'A' Shape Film Forming Plate: Aluminum Bar Type
Film Bubble Setting Ring: Squirrel CageType
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder

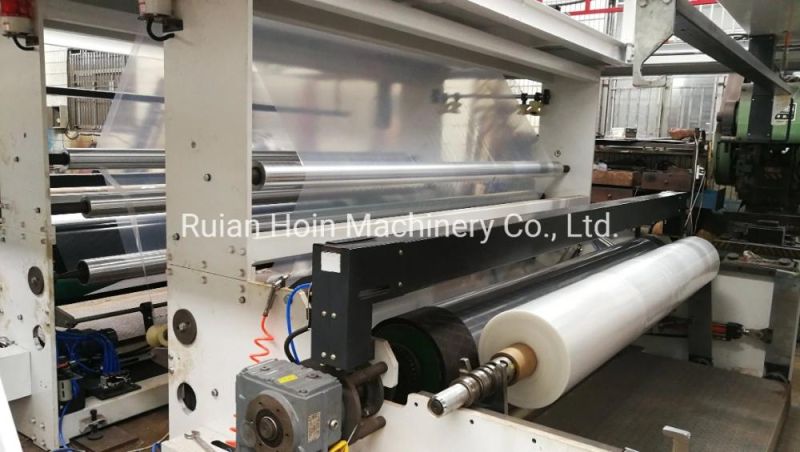

3. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller
Rolling Change: Fly Cutting Automatic Winder
D.About HOIN
E. After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We will offer you our best after service, of course you will afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
