2200mm ABA Three Layers Coextrusion Film Blowing Machine
Ruian Hoin Machinery Co., Ltd.- After-sales Service：Technical Support Online
- Warranty：One Year
- Type：Multi-Layer Co-extrusion Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：2200mm
- Screw Diameter：60mm
Base Info
- Model NO.：F3B-ABA
- Automation：Automatic
- Computerized：Computerized
- Machine Weight：4T
- Certification：CE, ISO9001:2008
- Film Type：Three Layers Coextrusion
- Material：PE,CaCO3,PE
- Screw Quantity：2 Set
- Die Head：ABA Die Head
- Heating Ring：Cast Aluminum
- Winder Type：Friction Single Station
- Auto Winder：Optional
- Rotary Die Head：Optional
- Transport Package：Stretch Film or Wooden Case
- Specification：CE, ISO9001
- Trademark：HOIN
- Origin：Ruian, Zhejiang, China
- HS Code：8477301000
- Production Capacity：30 Set,Month
Description
C: Details Information

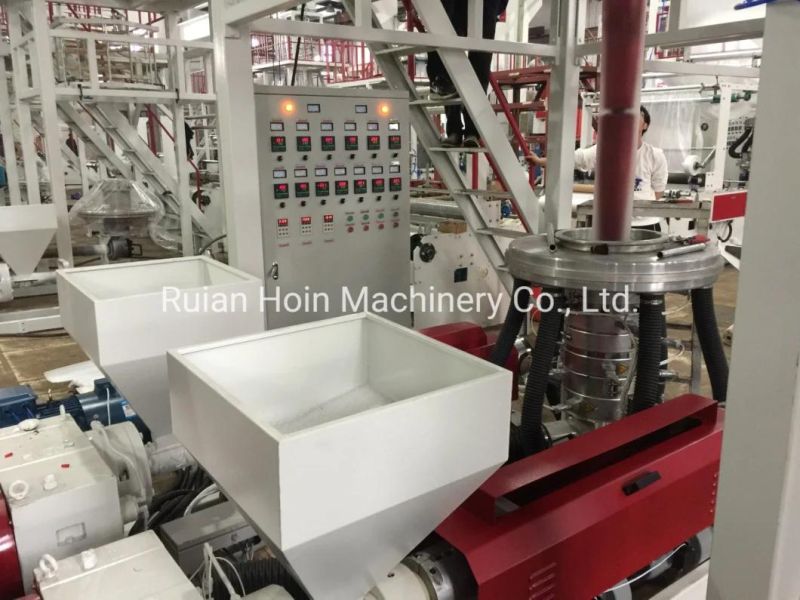

1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Die Head Heating: 2 Zones
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Screw and Barrel Heating: 3Zones*3Sets
Heating Ring Material: Cast Aluminum
Screen Changer: Manual Type
Gear Box: Hard Tooth Surface Gear Box
2. Take Up Section
'A' Shape Film Forming Plate: Wooden Bar Type
Film Bubble Setting Ring: Wooden Bar Type
Take Up Motor: Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder
3. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller
D. After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query pls feel to contact with us!
Ms. WendyPan

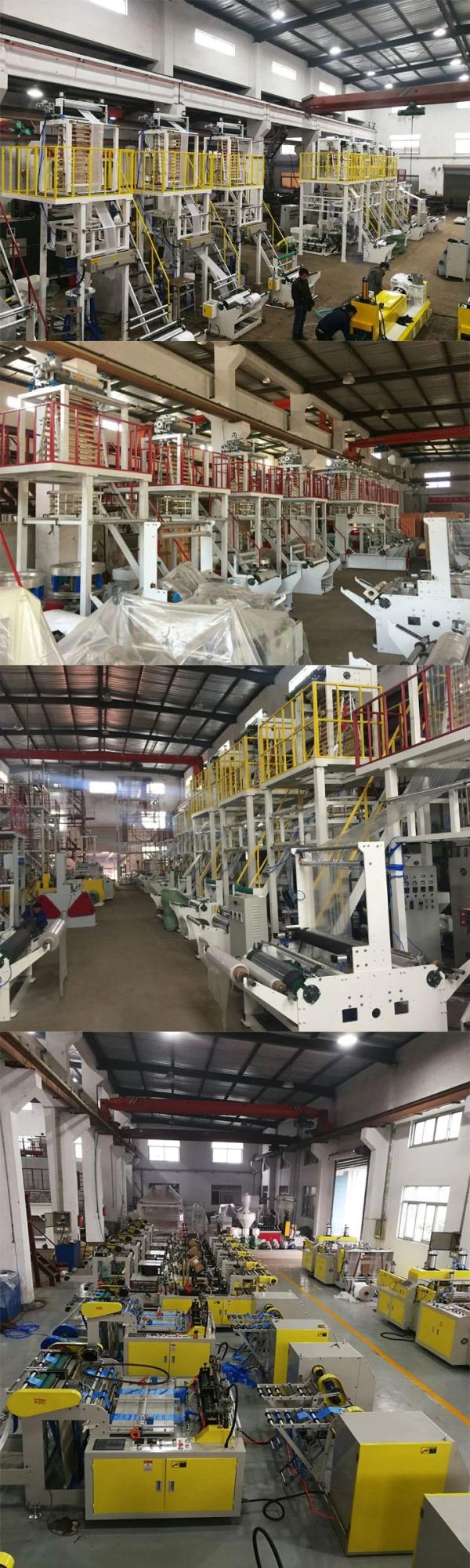

E. HOIN Workshop
F. Loading & Shipping
