Automatic HDPE LDPE LLDPE Plastic Bag Blowing Machine
Ruian Binhai Plastic Packing Machinery Co., Ltd.- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：Depend on Customers
- Screw Diameter：Depend on Film Size and Speed
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：BX-SJ
- Machine Weight：Depend on Machine Size
- Certification：CE
- Film Type：LDPE, HDPE
- Machine Name：Plastic Bag Blowing Machine
- Transport Package：Film Packing
- Specification：CE, SGS
- Trademark：BINHAI
- Origin：Ruian City, Zhejiang, China
- HS Code：8477309000
- Production Capacity：320 Sets,Year
Description
Main Technical ParametersModel
BX-SJ45/50 BX-SJ55 BX-SJ60 BX-SJ65 Suitable Material
HDPE Max Film Width(mm)
600 800 1000 1200 Film Thickness(mm)
HD:0.008-0.08 Max Extrusion Output HD
30/40kg/hr 50kg/hr 60kg/hr 80kg/hr Extrusion unit Gear Box
133/146 173 173 200 Screw Diameter(mm)
φ45/50 φ55 φ60 φ65 Screw L/D Ratio
28:1 28:1 28:1 28:1 Screw's Material
38 CRMOALA Barrel's Material
38 CRMOALA Barrel's Cooling Fan
250W×2 370W×2 370×2 370×3 Thermo Control (zone)
3 3 3 4 Driving Motor (kw)
7.5/11 18.5 22 30 Extrusion Die Die Size (mm)
HD:φ60/80 HD:φ80/100 HD:φ100/120 HD:φ120/φ150 Screen Changer
Standard manual Thermo Control (zone)
2 2 2 2 Air Ring (mm)
φ620 φ620 φ620 φ760 Cooling Blower (kw)
1.5 2.2 2.2 3 Center Steady Stick
1 PCS Take-UP Unit Roller Width (mm)
φ138×650 φ138×850 φ138×1100 φ138×1300 Embossing Roller Width
550mm 750mm 1000mm 1200mm Take-UP Motor (kw)
0.75 1.1 1.1 1.5 Take-UP Speed(M/min)
10-60 10-60 10-60 10-60 Height adjustable type
700mm Winding Unit Type OF Winder
Surface Friction Single Winder Roller Width (mm)
700 900 1100 1300 Winding Motor (N.M)
6 10 10 16 Winding Speed(M/min)
10-60 10-60 10-60 10-60 Voltage
380V, 50HZ, 3PHASE Cover Dimensions (m)
4.5×2.0×4.3 4.5×2.2×4.5 5×2.5×4.8 5.5×2.8×5.2
Optional :
Auto Loader
Embossing roller
Corona
Die rotary device
Air compressor
Manual mechanics screen
Air cooling device
Double sides winder

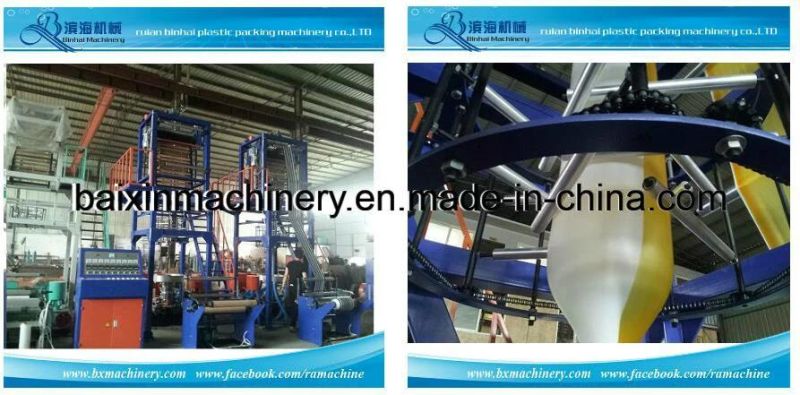

This is Two Colors Film Blowing Machine , One Two Screws , one Head .
Optional :
Rotary Head Die .
Double winders& Slitter
Auto Screen Change
Auto Loader .
Corona treatment .
TELL US YOUR FILM SIZE. THANKS .NEED SLITTER NOT . NEED PRINTING NOT .
This is Bag Making Machine for T shirt Handle bags , / shopping bags/ garbage bags.
Cold Cut
Do one line , two line , Four Lines , 6 Lines .
with auto puncher . (Optional : Manual puncher )
If your material is HDPE , Suggest Heat cut , one line and two lines as optional .

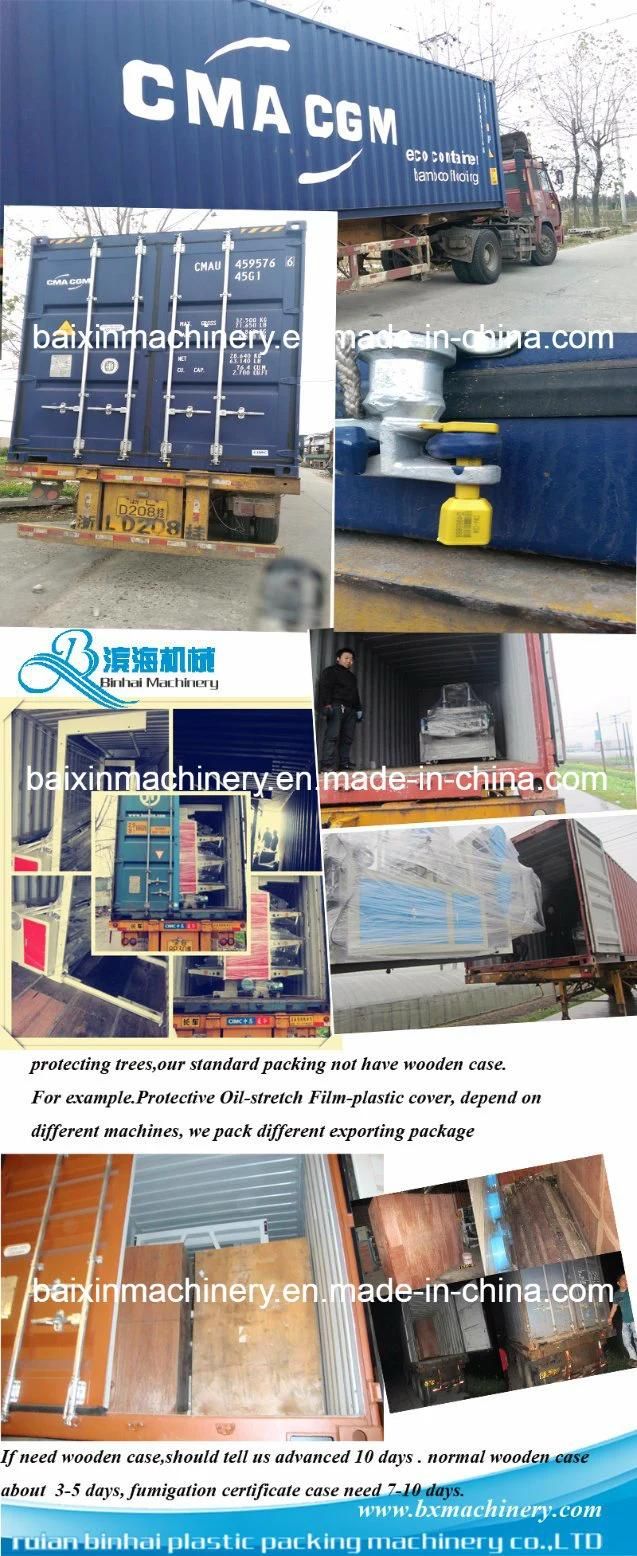

shipping & Package
The End , thanks for your reading .
