• Model NO.：SJ-A35-MD400
• Certification：CE, ISO9001:2008
• Transport Package：Wooden Case
• Trademark：Mingde
• Origin：China
• HS Code：8477900000
• Production Capacity：500sets,Year

Basic Info.

Model NO. SJ-A35-MD400 Certification CE, ISO9001:2008 Transport Package Wooden Case Trademark Mingde Origin China HS Code 8477900000 Production Capacity 500sets/Year

Product Description

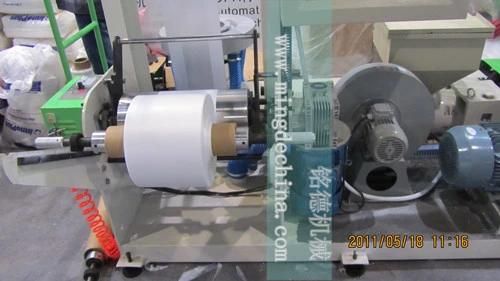

(1) Winder :

This machine is our new design. Especially for laboratory testing. Save electricity, low noisy.

Max. film width	80-400mm
Suitable material	HDPE, LDPE, LLDPE
Max. output	15-20kg/hr
Film thickness	0.008-0.05mm
Gear box	133
Screw diameter	φ 35mm  from zhoushan
Screw material	SACM-645/38 CRMOALA
L/D	28: 1
Main motor power	7.5kw
Main motor inverter	7.5kw
Barrel material	SACM-645/38 CRMOALA
Barrel cooling	250w× 1
Barrel temp. control	2pcs
Barrel heating	stainless steel
Die head	HD40mm
Die and adapator temp. control	2pcs
Die and adapator heating	stainless steel
Air ring	450mm
Fan	1.1kw
Traction roller width	φ 138× 450mm
Traction motor power	0.75kw
Traction inverter	1.5kw
Traction speed	5-80m/min
Wind type	single wind
Wind power	5-8N. m
Winder speed	5-80m/min
Down frame size	200mm
Up frame size	160mm
Power consume	11kw
Aluminum roller width	450mm
Machine size	1700× 2000× 3000mm
