• Model NO.：SJ-90x33 SJ-30x25
• Condition：New
• Pipe Diameter Range：110-400mm
• Pipe Application：PE Gas and Water Pipe
• Output：Max.450kg,Hr
• Install Power：160kw
• Line Speed：2m,Min
• Electrical Parts Brand：Siemens
• Warranty Time：14monthes
• After -Sale Service：Life-Long Time Technical Support
• Dimension：34000*3000*2800mm
• Weight：22t
• Transport Package：Machine Covered by PE Film; Mould in Wooden Case
• Specification：Follow Customers′ Need
• Trademark：WEIER
• Origin：Qingdao City Shandong Province, China
• HS Code：84772090
• Production Capacity：20 Units Per Month

Basic Info.

Model NO. SJ-90x33 SJ-30x25 Condition New Pipe Diameter Range 110-400mm Pipe Application PE Gas and Water Pipe Output Max.450kg/Hr Install Power 160kw Line Speed 2m/Min Electrical Parts Brand Siemens Warranty Time 14monthes After -Sale Service Life-Long Time Technical Support Dimension 34000*3000*2800mm Weight 22t Transport Package Machine Covered by PE Film; Mould in Wooden Case Specification Follow Customers′ Need Trademark WEIER Origin Qingdao City Shandong Province, China HS Code 84772090 Production Capacity 20 Units Per Month

Product Description

630mm PE water and gas pipe production line
Discreption of PE pipe machine
This PE Pipe Production Line is mainly used for producing PE pipes, diameter range: 16-630mm, etc
Process flow of PE pipe production line:
Raw material + additive mixing vacuum feeding machine hopper dryer single screw extruder color code extruder mould and calibrator vacuum forming machine cooling tank haul-off machine cutting machine discharging rack.

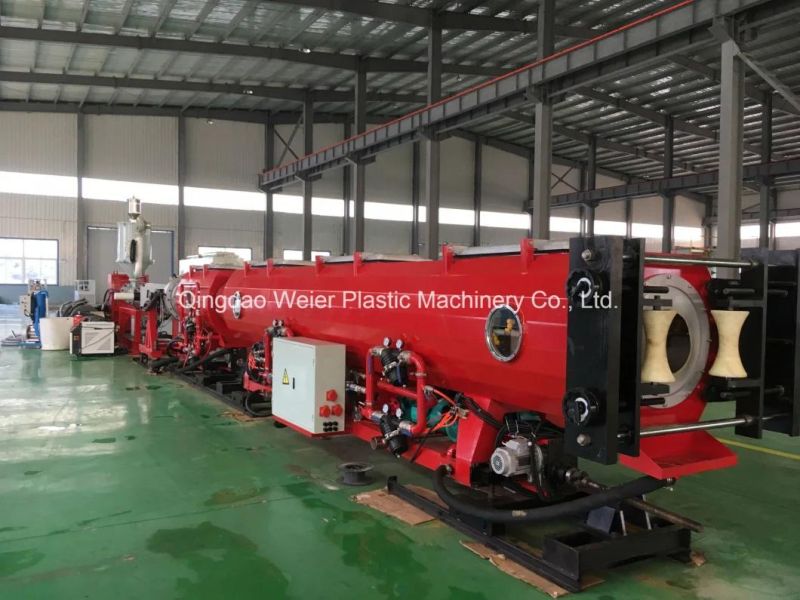

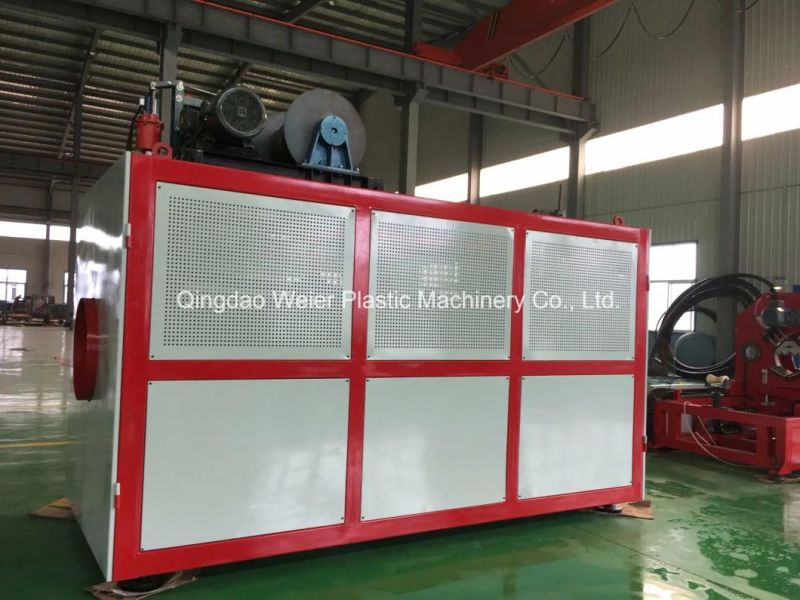

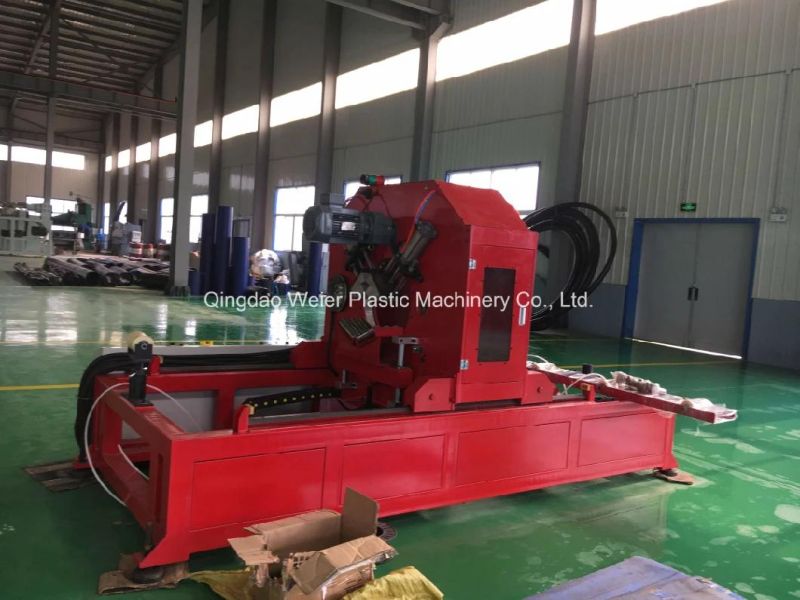

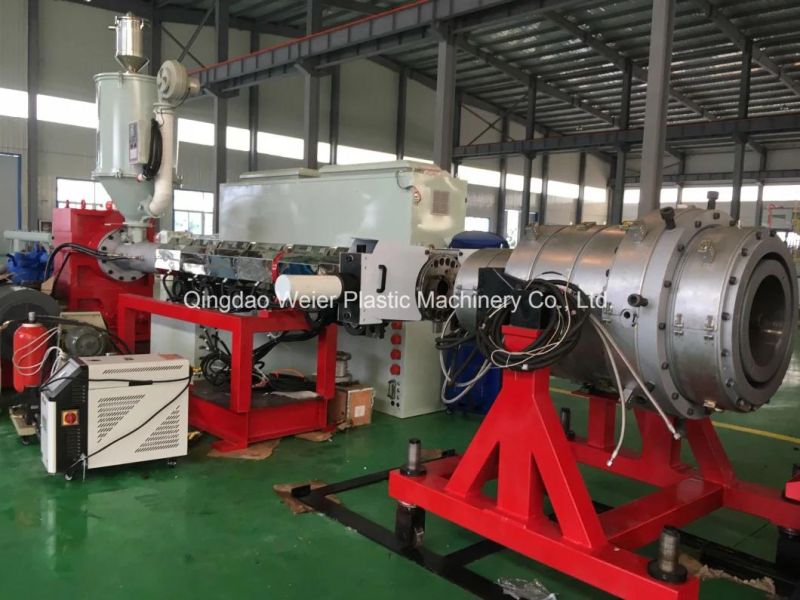

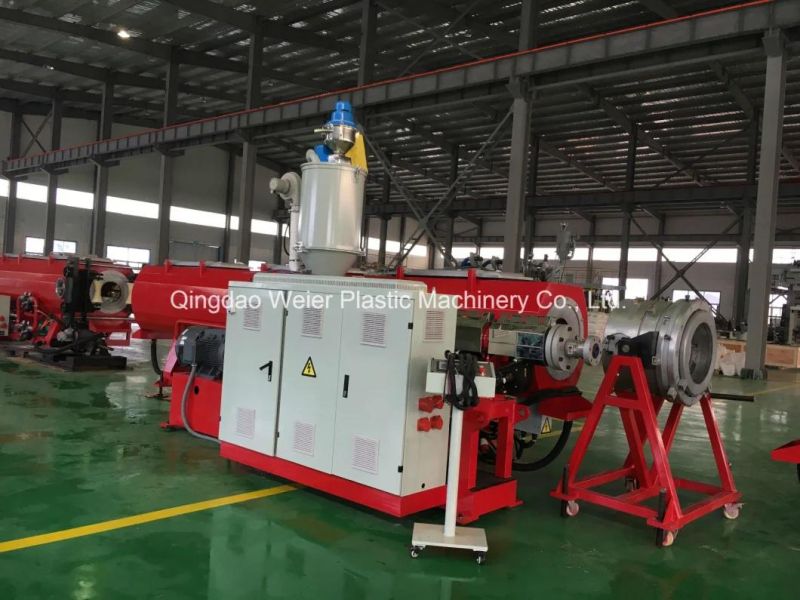

Photos of PE pipe machine






Parameter of PE pipe machine

pipe diameter	main machine	MAX hauling speed	motor power	MAX capacity
20-63mm	SJ65/30	12m/min	55kw	150kg/h
20-110	SJ65/33	10m/min	75kw	180kg/h
75-160	SJ75/30	8m/min	110kw	350kg/h
90-250	SJ75/33	5m/min	110kw	350kg/h
110-315	SJ90/33	3m/min	160kw	450kg/h
160-450	SJ90/33	2m/min	160kw	450kg/h
315-630	SJ120/33	1.6m/min	280kw	850kg/h
160-630	SJ120/33	0.8m/min	315kw	850kg/h
