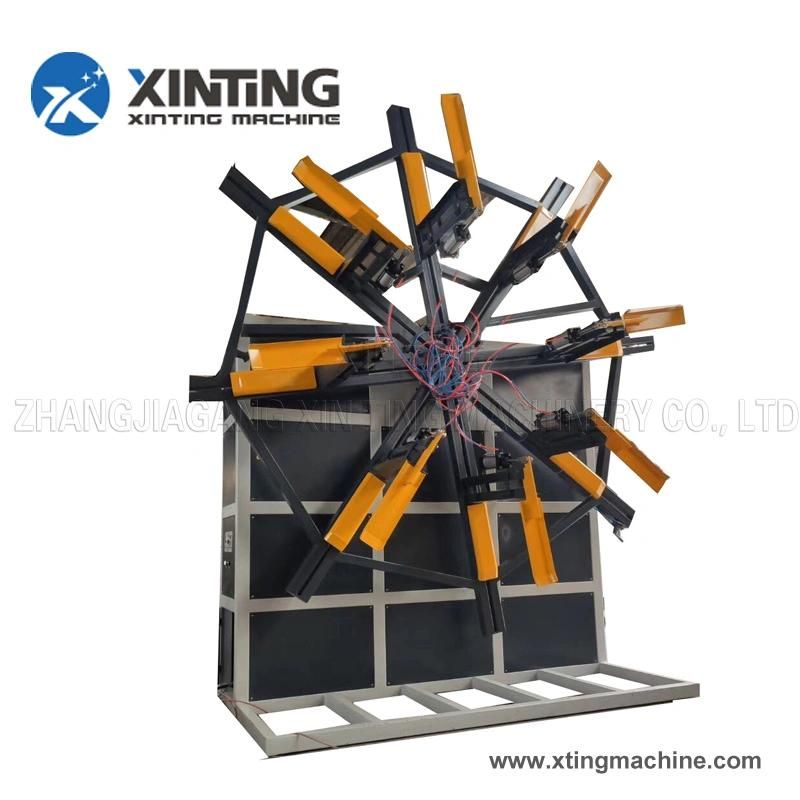

Plastic PE/PP/PVC/PPR Single/Double Screw Corrugated/Spiral Conduit Pipe Tube Hose Coiling ...
Zhangjiagang Xinting Machinery Co., Ltd.- Warranty：1 Year
- Product Type：PE PVC PPR
- Screw No.：Multi-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, UL, QS, GMP
Base Info
- Model NO.：extruder machine 16-630
- Customized：Customized
- Condition：New
- After-sales Service：Yes
- Plastic Processed：PVC,PP,PE
- PVC PE PP：Pipe Making Machine
- L/D：30:1,Customised
- Capacity：50-350kg,H
- Pipe Range：16-630mm
- Application：Pipe Making Machine
- Motor Brand：Siemens or ABB
- Inverter：ABB Brand or Other Famous Brand
- Marketing Type：New Product 2020
- Core Components：Bearing
- Contactor：Schnerder
- Keywords：PE Pipe Making Machine
- Adwords：PVC Pipe Making Machine
- Name：PVC Pipe Machine
- Transport Package：Film Package or Woodcase Package
- Specification：16-630mm
- Trademark：XINTING
- Origin：Zhangjiagang China
- HS Code：8477599000
- Production Capacity：12 Lines One Year
Description

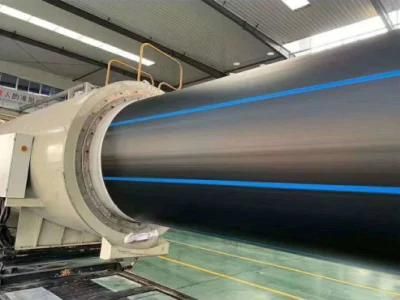

PE PIPE EXTRUSION LINE PARAMETERS
Model
Pipe range
Extruder
Max.output(kg/h)
Motor power
Total power
PE-63
16-63mm
SJ65/33 SJ25/25
120-180
45KW
110KW
PE-110
16-110mm
SJ65/33 SJ25/25
150-200
55KW
130KW
PE-160
50-160mm
SJ75/33 SJ25/25
150-220
75KW
150KW
PE-250
75-250mm
SJ75/33 SJ25/25
280-350
90KW
280KW
PE-315
110-315mm
SJ90/33 SJ25/25
250-350
132KW
350KW
PE-450
160-450mm
SJ90/33 SJ25/25
350-450
160KW
400KW
PE-630
315-630mm
SJ120/33 SJ25/25
550-850
200KW
550KW
PE-800
450-800mm
SJ150/33 SJ25/25
800-1300
250KW
750KW
PPR PIPE EXTRUSION LINE PARAMETERS
Model
Pipe range
Extruder
Max.output(kg/h)
Motor power
Total power
PPR-63
16-63mm
SJ65/33 SJ25/25
100
75KW
32M
PPR-110
50-110mm
SJ75/33 SJ25/25
200
145KW
35M
PPR-160
75-160mm
SJ90/33 SJ25/25
220-250
180KW
35M
Adjustable
Winding width of roll
Adjustable
Winding arrangement
Automatic displacer
Discharge of roll
Pneumatic drive
Note:For big pipe winding machine,such as Φ160mm pipe,we need special design and take your special order.
plastic PVC pipe belling expansion machine
Techiniacal Parameter
SGK-160
Pipe diameter:
Φ50-Φ160
Pipe length:
suitable for different pipe length
Production speed:
20PCS/H
Max. Heating temp.:
300°
Oil pump power:
1.5kw
Machine working air pressure:
4-6.3MP
Hydraulic oil
46# wearable oil
Air compressor power:
0.4-0.6Mpa
If cooling by water pressure
0.2-0.3MPa
Intsll power:
9.5kw(single oven), 20.5KW(double oven)
With PLC control:
FX1n-60MR
Electricity:
380V 50HZ 3P(according to client request)
Dimension:
6400×1550×1700mm
Machine weight:
3.6T
