• Production Capacity：as Require
• Model NO.：LQ

Basic Info.

Model NO. LQ Production Capacity as Require

Product Description

Parameter Table

Type	Model	Power	Cutting strand	Granules size(mm)	Max output(kg/h)	Knife number	Rollor length (mm)
cantilever	LQ-25	0.75	≤3	φ3×3	≤40	14	φ60×50
gantry	LQ-60	1.1~1.5	≤8	φ3×3	≤60	14	φ120×96
cantilever	LQ-300	3~4	≤14	φ3×3	≤300	32	φ200×100
gantry	LQ-300	3~4	≤18	φ3×3	≤300	24	φ100×150
cantilever	LQ-500	5.5~7.5	≤30	φ3×3	≤500	32	φ120×200
gantry	LQ-500	5.5~7.5	≤30	φ3×3	≤500	32	φ100×200
gantry	LQ-900	11~15	≤40	φ3×3	≤900	32	φ100×300
gantry	LQ-2000	15~22	≤60	φ3×3	≤2000	32	φ120×400


Function:

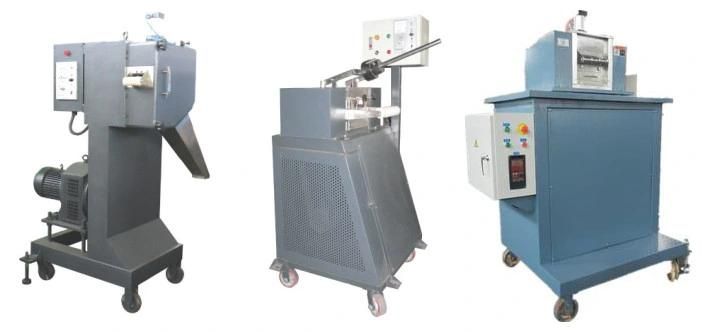

Planer type pelletizer is fit to pelletize glass fibre , minerial, enhanced plastics, rubber mixer, PVC, PBT, PA,PP,PE,PS,PET, ABS and other plastics strand pelletizing.



Detailed features:

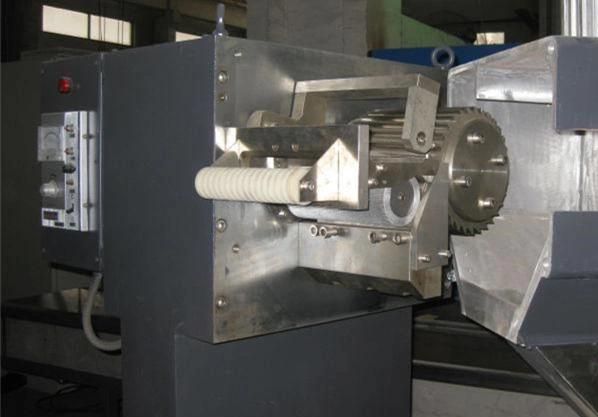

Cantilever granulator with unique structure,easy maintance,low nosie,high production efficiency,long service life.

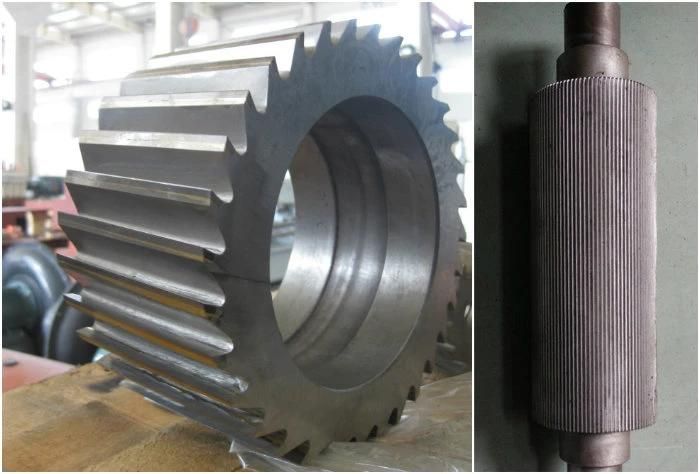

Adopt independent pelletizing chanber design,convenient to change color and clean-up remained-material.Cutting tool material are all hard alloy cutter,the more rotary cutter quantity,higher abrasion resistance ,diced evenly, cut flat.
Granulator uses polyurethane roller traction,higher tensile strengh,steady traction,It is suitble for cooling strands pelletizing of high -yield,high strengh engineering plastics, espencially for srands pelletizing of glass fiber reinforced plastic



Company introduction :
Nanjing Haisi Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, design, manufacture, technique and sales service and has specialized in extruder industry for many years. We are now devoted to highly active single / twin screw compounding extruders and interrelated techniques. According to the material system and technical process, we achieve the optimization of structural design for mixing equipment and combine electromechanical and technique systems together, which show our many years' experience and comprehensive techniques.
Our products are single screw extruders, co-rotating twin-screw compounding extruders, auxiliary equipment, etc.
