Fully Automatic PP HIPS Pet Tilting Mold Thermoforming Making Machine and Plastic Sheet ...

Rui'an Hengfeng Machinery Co., Ltd.
  • Certification：CE, ISO
  • Column number：Double Column
  • Molding Method：Pressing
  • Automatic Grade：Automatic
  • Warranty：1 Year
  • Raw Material：PP, PS

Base Info

  • Model NO.：HFTF
  • Driven Type：Mechanical(Cam)
  • Customized：Yes
  • Transport Package：Sea-Worthy Packing
  • Specification：CE Certificate
  • Trademark：HENGFENG
  • Origin：China
  • HS Code：84774090
  • Production Capacity：35cycles,Min

Description

Extruder Main Technical ParameterScrew Diameter Φ120mmScrew L/D33:1Max.Output500kg/hrExtruding motor power160kwValid Die-head Width850mmMaterial Thickness RangeMin0.2mm;Max2.5mmRoller Diameter Φ450x1000mmThermoformer Main Technical Parameter 1- Max. Forming Area685×320mm2- Max. Forming Height  180mm3-Mold Clamping force350Kn4-Sheet Width Max 720mm; Min 550mm5-Sheet Thickness0.35mm-2.5mm6-Heater SpecificationCeramic Heater up and down 130kw 7-Heater Control Omron Temperature module and PLC match with control 8-Forming MethodAir pressure forming & driven by Cam  9-Operation Method Fully automatic with touch screen control10-Material Feeding Servo Motor 4.4kw 11-Max. Sheet Rolling Diameter                                  Φ1200mm12-Air Pressure  0.7-0.85mpa13-Water Consumption   50L/min 14- Air Consumption   3000L/min 15- Max.Speed 35 Cycles/min 16- Power (Three Phase Four Wire) 380V,50Hz,3Phase 17- Main Motor Power 11kw 18- Scrap Rewinding Motor Power 0.55kw19- Machine Weight 13000kg20- Machine Dimension   (L)11000×(W)3650×(H)3500mm  Fully Automatic PP HIPS Pet Tilting Mold Thermoforming Making Machine and Plastic Sheet Extrusion Line

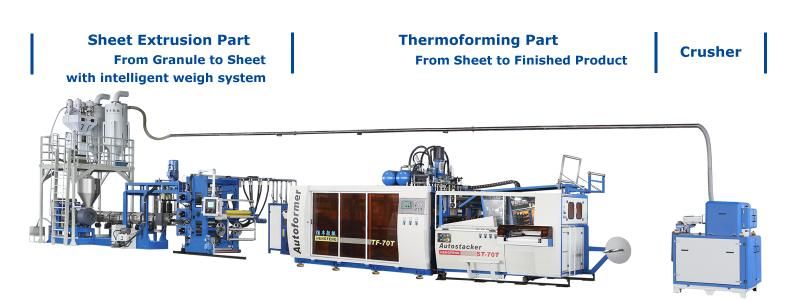

Fully Automatic PP HIPS Pet Tilting Mold Thermoforming Making Machine and Plastic Sheet Extrusion Line
