Njwg 500 Model Double Shaft Shredder Industrial Paper Waste Rubber Metal Shredding Machine ...
Nanjing Wanguo Machinery Technology Co., Ltd.- Type:Powerful Plastic shredders
- Raw Material:PVC
- Structure:Top Feed
- Knife Classification:Claw Knife Crusher
- Knife Roll:Hollow Knife Roller
- Automation:Automatic
Base Info
- Model NO.:500 model
- Computerized:Computerized
- Certification:CE, ISO9001:2008
- Name:Njwg 500 Model Double Shaft Shredder Industrial PA
- Motor:7.5kw
- Reducer:1set
- Main Shaft:70mm
- Blade Size(mm):200*20
- Blade Qty:25
- Feeding Port(mm):600*700*400
- Size(mm):1600*600*1550
- Transport Package:Wooden Case
- Trademark:WANGUO
- Origin:China
- HS Code:8477800000
- Production Capacity:999 Sets Per Month
Description
Product introduction
Shredder can be used to tear hard to break plastic, rubber, large tire, large nylon material, rubber head material, car bumper, large fishing net, large pipe, fiber, paper, wood, electrical parts, cable, PET bottle, cardboard, circuit board, wood, plastic barrel and other solid objects.
The shredder is also called metal shredder, double axis shredder, wood shredder, tire shredder plastic shredder, pipe shredder, garbage shredder, circuit board shredder, rubbershredder,Aluminum shredder.
The main function of the equipment is to cut and extrude large pieces of materials and large-diameter metal materials which are not convenient for transportation into pieces that meet the requirements.
Product features

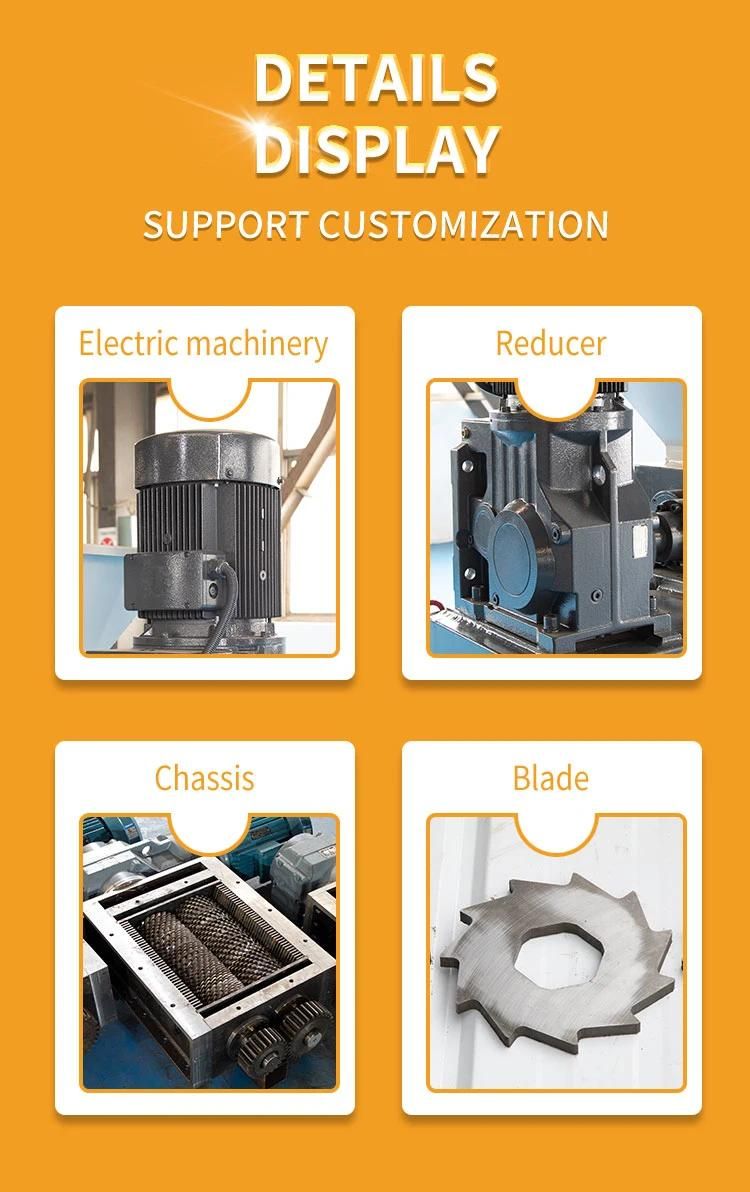

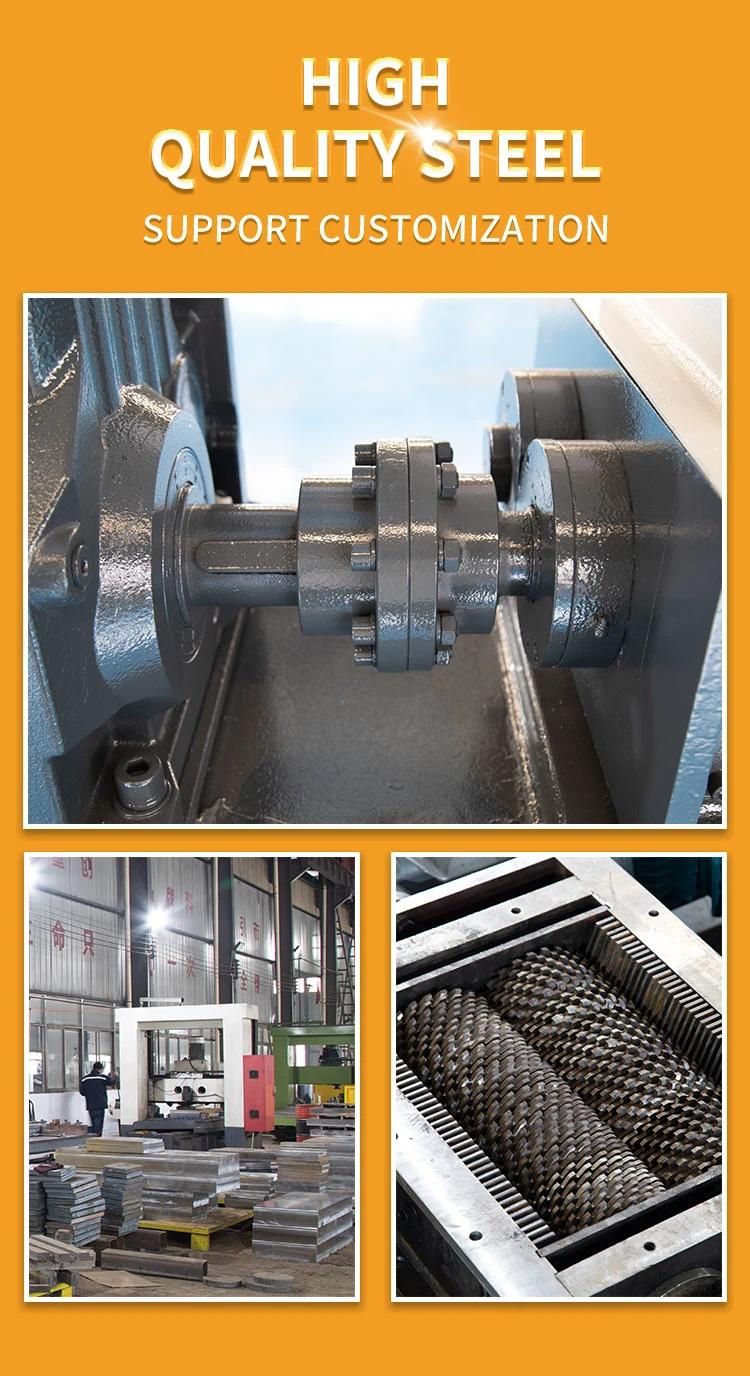

1 Double cutter shaft mechanism, using multi blade and multi claw cutters, and cooperating with cutter shaft for multi angle change, saving labor and strong cutting force, showing strong crushing ability.

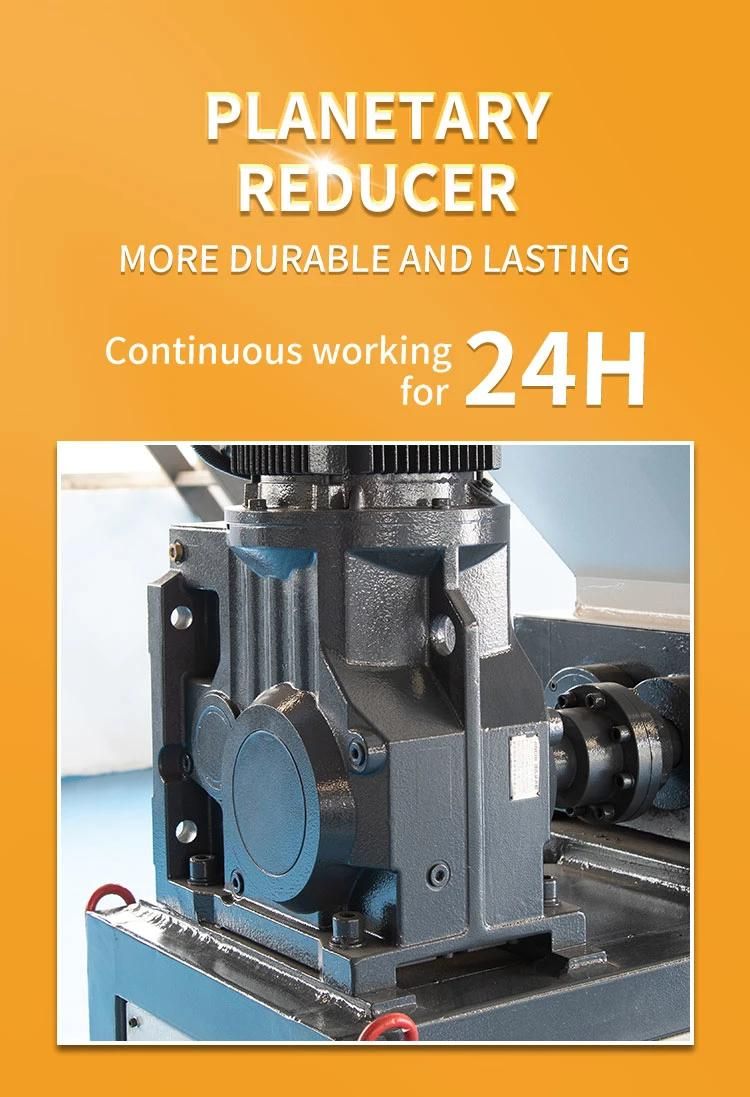

2 The motor is driven by the gearbox transmission system, which makes it a powerful operation with low speed and high torque to achieve the crushing effect.
3 Large transmission wheel, made of special steel, hardened by heat treatment, long service life.
4 The gearbox adopts oil inlet pulley, which has smooth operation, low noise, large torque and long-time operation resistance.
5 Low speed and high torque design, provide low noise and less dust, improve good working environment.Model 500 600 800 1000 1200 1600 Motor 7.5KW-4=1set 11-22KW 17-37KW 30-45KW 37-55KW 55-132KW Electric control cabinet PLC protection system PLC protection system PLC protection system PLC protection system PLC protection system PLC protection system Input speed 15turns/Min 12-30turns/Min 12-30turns/Min 7-20turns/Min 7-15turns/Min 7-12turns/Min Input shaft diameter(mm) 70 150 180 190 220 260 Number of blades 25 20 20 25 24 20 Size(mm) 1200*600*1550 2800*1400*1900 3700*1540*2200 3860*1550*2350 4200*1650*2400 5500*2360*2830 FAQ
1)How about the quality of machines?
Our machines adopt advanced technology. Moreover, we carry out strict supervision during productionand make sure every finished product with high quality.
2)About the delivery time?
Generally, it will be about 20-35 days days after your deposit, which also will be on basis of your order.
3)As for the warranty?
We provide 12 months for warranty.
4)Which kind of payment is available for us?
T/T, L/C and Western Union are common for us.
5)How about the service?
Provide overseas installation, debugging and training the relating work.
Shredder can be used to tear hard to break plastic, rubber, large tire, large nylon material, rubber head material, car bumper, large fishing net, large pipe, fiber, paper, wood, electrical parts, cable, PET bottle, cardboard, circuit board, wood, plastic barrel and other solid objects.
The shredder is also called metal shredder, double axis shredder, wood shredder, tire shredder plastic shredder, pipe shredder, garbage shredder, circuit board shredder, rubbershredder,Aluminum shredder.
The main function of the equipment is to cut and extrude large pieces of materials and large-diameter metal materials which are not convenient for transportation into pieces that meet the requirements.
Product features
1 Double cutter shaft mechanism, using multi blade and multi claw cutters, and cooperating with cutter shaft for multi angle change, saving labor and strong cutting force, showing strong crushing ability.
2 The motor is driven by the gearbox transmission system, which makes it a powerful operation with low speed and high torque to achieve the crushing effect.
3 Large transmission wheel, made of special steel, hardened by heat treatment, long service life.
4 The gearbox adopts oil inlet pulley, which has smooth operation, low noise, large torque and long-time operation resistance.
5 Low speed and high torque design, provide low noise and less dust, improve good working environment.
1)How about the quality of machines?
Our machines adopt advanced technology. Moreover, we carry out strict supervision during productionand make sure every finished product with high quality.
2)About the delivery time?
Generally, it will be about 20-35 days days after your deposit, which also will be on basis of your order.
3)As for the warranty?
We provide 12 months for warranty.
4)Which kind of payment is available for us?
T/T, L/C and Western Union are common for us.
5)How about the service?
Provide overseas installation, debugging and training the relating work.
