Plastic PP/PS/Pet Mineral/Starbucks/Jelly/Water Cup Thermoforming Machine/Cup Making ...

Rui'an Hengfeng Machinery Co., Ltd.
  • Certification：CE, ISO, ISO9001
  • Column number：Four Column
  • Molding Method：Pressing
  • Automatic Grade：Automatic
  • Driven Type：Electric, Pneumatic, Mechanical
  • Shaping Mode：in Molding

Base Info

  • Model NO.：HFTF-70T
  • Application：Plastic Cup, Box, Bowl, Yogurt Cup, Milk Cup, etc
  • Computerized：Computerized
  • Max Forming Area：680* 320mm
  • Thickness of Sheet：0.35-2.5mm
  • Dimension(L*W*H)：12000*4000*3500mm
  • Transport Package：Sea-Worthy Packing
  • Specification：CE Certificate
  • Trademark：HENGFENG
  • Origin：China
  • HS Code：84774090
  • Production Capacity：45 Cycles,Min

Description

Basic Info.

Model NO. HFTF-70T Application Plastic Cup, Box, Bowl, Yogurt Cup, Milk Cup, etc Computerized Computerized Max Forming Area 680* 320mm Thickness of Sheet 0.35-2.5mm Dimension(L*W*H) 12000*4000*3500mm Transport Package Sea-Worthy Packing Specification CE Certificate Trademark HENGFENG Origin China HS Code 84774090 Production Capacity 45 Cycles/Min

Product Description

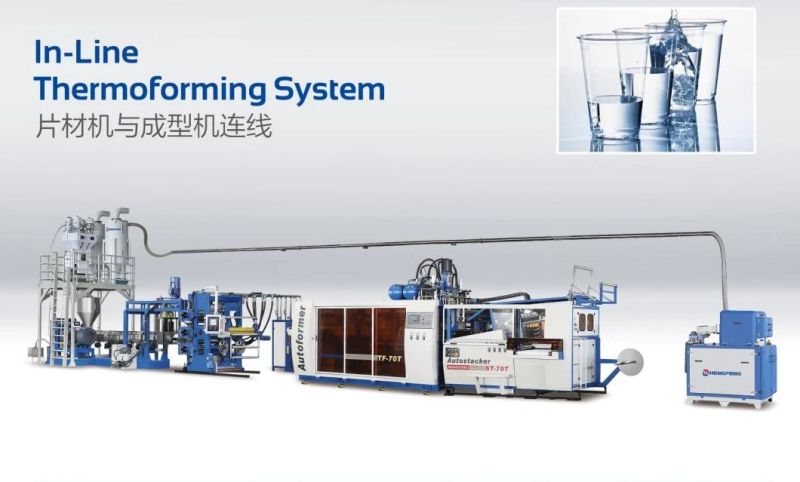

Plastic Thermoforming Making Machine

Plastic PP/PS/Pet Mineral/Starbucks/Jelly/Water Cup Thermoforming Machine/Cup Making Machine/Cup Forming Machine/ Cup Thermoformer Machine
There are some machine running video links:
https://hf-sheetmachine.en.made-in-china.com
https://hf-sheetmachine.en.made-in-china.com
https://youtu.be/M0HywCg41JI
Applicantion:
we mainly produce upscale plastic containers like cups, bowls, square boxes etc. It is suitable for PP. HIPS. PVC and PET material.
Plastic PP/PS/Pet Mineral/Starbucks/Jelly/Water Cup Thermoforming Machine/Cup Making Machine/Cup Forming Machine/ Cup Thermoformer Machine

Plastic PP/PS/Pet Mineral/Starbucks/Jelly/Water Cup Thermoforming Machine/Cup Making Machine/Cup Forming Machine/ Cup Thermoformer Machine
Plastic PP/PS/Pet Mineral/Starbucks/Jelly/Water Cup Thermoforming Machine/Cup Making Machine/Cup Forming Machine/ Cup Thermoformer Machine

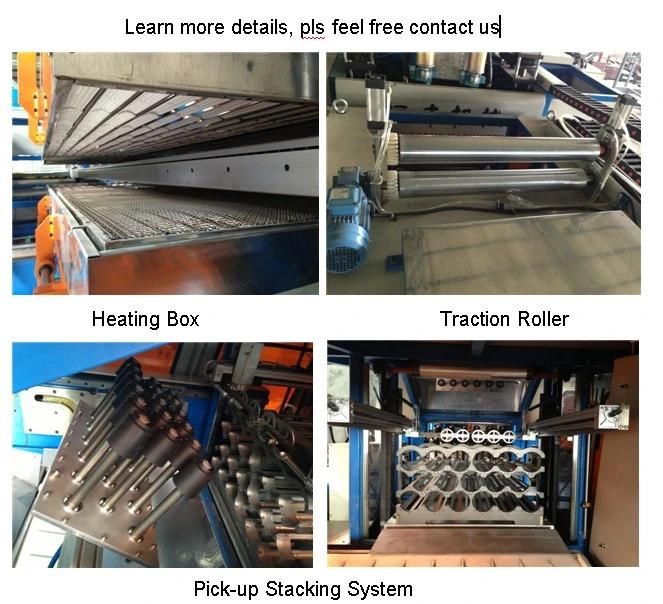

Design Features:
In-mould Cutting
High accuracy and high yield products
Pick-up stacking system for more sanitary and save labor
Servo motor for plug assist and sheet feeding system
Two -station unwinder system

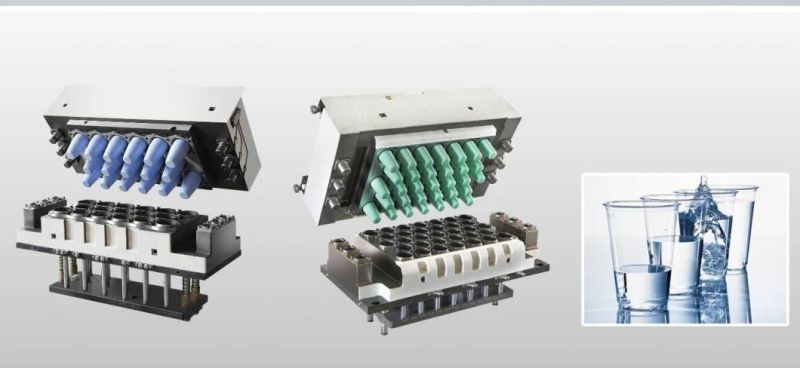

Rapid mould changing device
Mould automatic memory system
PLC design with easy operation
Main Technical Data:
1- Max. Forming  Area680× 320mm
2- Max. Down Forming Machine150mm
3- Max. Up Forming Height15mm
4- Sheet Thickness0.35-2.5mm
5- Max. Roller  Diameter Φ 1200mm
6- Air  Pressure 0.7-0.85mpa
7- Water  Consumption 50L/min
8- Air  Consumption 3000L/min
9- Max.Speed 35Cycles/min
10- Power (Three  Phase  Four  Wire)380v,50hz,3phase
11- Heating  Power130kw
12- Main  Motor  Power11kw
13- Feeding  Motor  Power 4.4kw
14- Scrap  Rewinding  Motor  Power 0.55kw
15- Machine  Weight 12600kgs
16- Dimension 11000× 3650× 3500mm

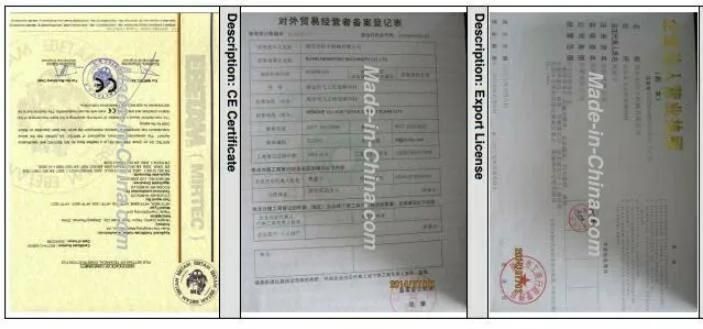

Certificate:
Plastic PP/PS/Pet Mineral/Starbucks/Jelly/Water Cup Thermoforming Machine/Cup Making Machine/Cup Forming Machine/ Cup Thermoformer Machine
Shipping Details:
Plastic PP/PS/Pet Mineral/Starbucks/Jelly/Water Cup Thermoforming Machine/Cup Making Machine/Cup Forming Machine/ Cup Thermoformer Machine

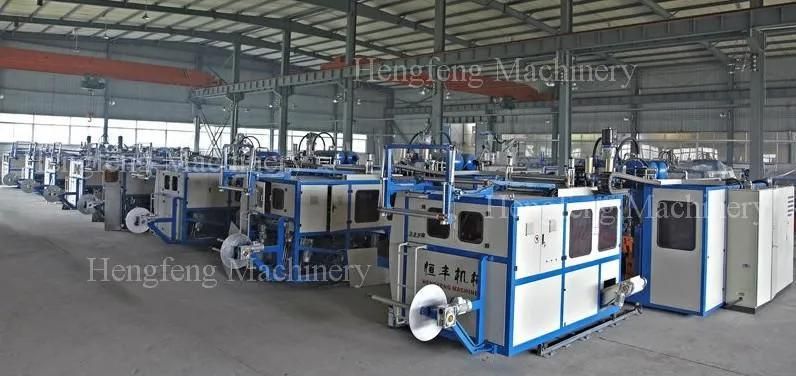

HengFeng Company:
Plastic PP/PS/Pet Mineral/Starbucks/Jelly/Water Cup Thermoforming Machine/Cup Making Machine/Cup Forming Machine/ Cup Thermoformer Machine
Plastic PP/PS/Pet Mineral/Starbucks/Jelly/Water Cup Thermoforming Machine/Cup Making Machine/Cup Forming Machine/ Cup Thermoformer Machine
Please contact us to here if interested any products:
