• Model NO.：SJSZ-80,156
• Customized：Customized
• Condition：New
• Main Electrical Components：ABB, Omoron, Schnider, Delix, Rkc
• Die Head Design：T-Type Die Head or Coat Hanger Die Head Design
• Application：Decoration, Cabinets, Advertising Board etc
• Plate Thickness：2-20mm
• Plate Width：1000-2050mm
• Installed Power：176kw
• Transport Package：Wooden Cases with Vacuum Film
• Specification：SJSZ65,132, SJSZ80,156
• Trademark：Leader Machinery
• Origin：Qingdao of China
• HS Code：8477209000
• Production Capacity：20 Sets,Year

Basic Info.

Model NO. SJSZ-80/156 Customized Customized Condition New Main Electrical Components ABB, Omoron, Schnider, Delix, Rkc Die Head Design T-Type Die Head or Coat Hanger Die Head Design Application Decoration, Cabinets, Advertising Board etc Plate Thickness 2-20mm Plate Width 1000-2050mm Installed Power 176kw Transport Package Wooden Cases with Vacuum Film Specification SJSZ65/132, SJSZ80/156 Trademark Leader Machinery Origin Qingdao of China HS Code 8477209000 Production Capacity 20 Sets/Year

Product Description

PVC Crust Foam Board Extrusion Line is used to produce PVC crust foam board, PVC construction board, PVC skinning board, PVC decorating board etc. Widely used in automobiles, trains, in-house decorating, kitchen, bathroom cabinets, advertising boards and so on.

PART 1 BOARD SPECIFICATIONS:
Plate width: 1000-1220-1560-2050mm
Plate thickness: 3-5-20mm

PART 2 THIS LINE CONSISTS OF:
1. SJF-700 Spring Feeding Machine 1 set
2. SJSZ-80/156 conical twin screw extruder 1 set
3. T-type die head 1 set
4. Vacuum calibrating Board 1 set
5. Cooling Frame, 1 set
6. Two edge saw cutting machine 1 set
7. Haul-off machine 1 set
8. Cross section cutting machine 1 set
9. Stacker 1 set
Other accessory machines
10. SRL-Z 300/600 high speed hot and cold mixer 1 set
11. SWP-450 Plastic cruhser 1 set
12. SMP-400 Plastic pulverizer 1 set
13. Water chiller 1 set

PART 3 ADVANTAGES OF THIS BOARD:

PVC crust foamed plate has such characteristics as sound separation, sound absorption, heat separation, temperature-keeping, etc.

Machine Type	SY80/156-1400	SY92/188-1700
Product Width	1220mm	1500mm
Product Thickness	2-30mm	3-19mm
Extruder Specification	SJZ80/156	SJZ92/188
Max. Extrusion Capacity	400kg/h	550kg/h
Main Motor Power	75kw	110kw

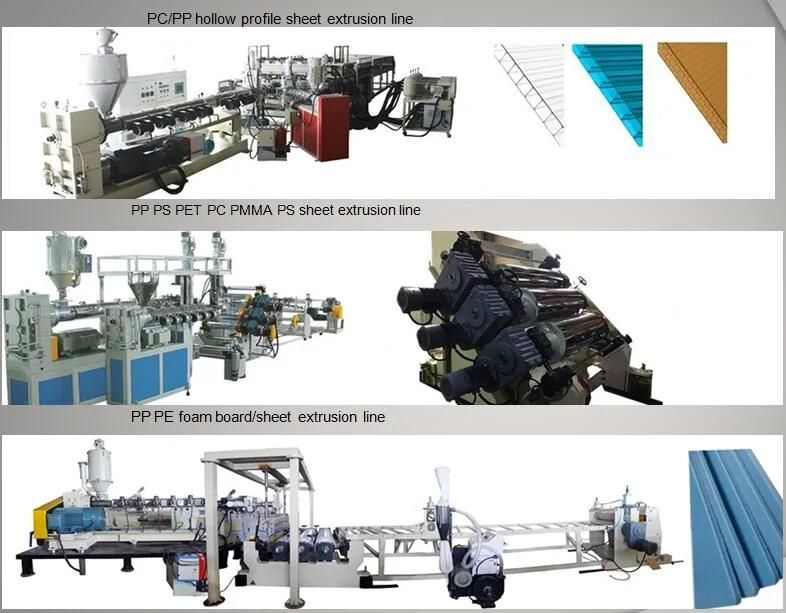

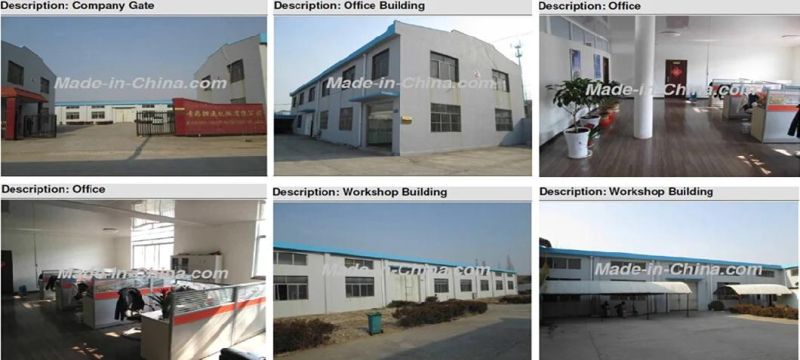

PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:




PART 6 COMPANY CERTIFICATIONS:

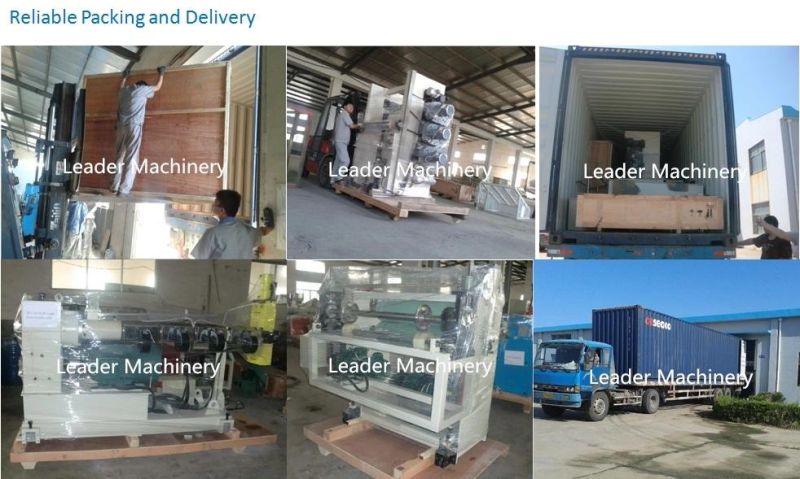

PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.



PART 8 COMPANY OVERSEA SHOWS AND CONTACT DETAILS:

PART 9 CONTACT INFORMATION:
