• Model NO.：DGD
• Motor：Marathon
• Electronic Components：Kloeckner Moeller
• Safety Switch：Schmersal
• PLC Cabinet：Rittal
• Bearings：Heavy Duty Bearings
• Knives：Knives Are Externally Adjustable
• Rotor：Wide Choice of Rotor Variations
• Mechanical Material：Q345
• Knife Materials：D2, SKD11
• Rotor Diameter：330-800mm
• Rotor Speed：9-13 Rpm
• Screen Size：40-100mm
• Transport Package：Stretch Film, Wood Pallet
• Specification：DGD1000-3000
• Trademark：DGM
• Origin：Wuxi, China
• HS Code：84778000
• Production Capacity：2000sets Per Year

Basic Info.

Model NO. DGD Motor Marathon Electronic Components Kloeckner Moeller Safety Switch Schmersal PLC Cabinet Rittal Bearings Heavy Duty Bearings Knives Knives Are Externally Adjustable Rotor Wide Choice of Rotor Variations Mechanical Material Q345 Knife Materials D2/ SKD11 Rotor Diameter 330-800mm Rotor Speed 9-13 Rpm Screen Size 40-100mm Transport Package Stretch Film/ Wood Pallet Specification DGD1000-3000 Trademark DGM Origin Wuxi, China HS Code 84778000 Production Capacity 2000sets Per Year

Product Description

Double Shaft Waste Cardboard Paper Tire Metal Scrap Wood Lump Barrels Drums Pipe Plastic Shredder for Recycling


Descriptions

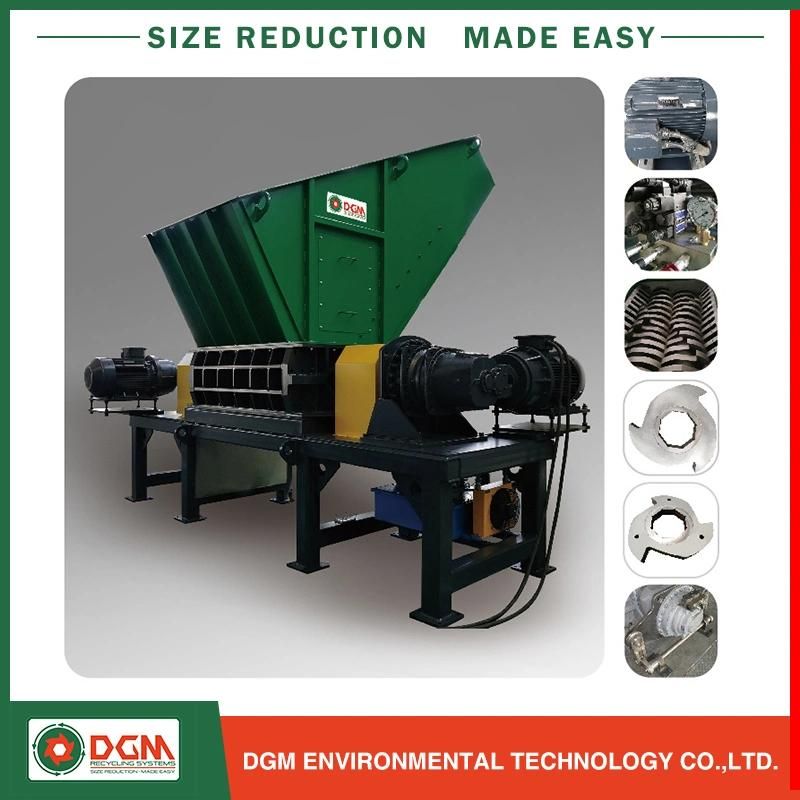

The DGD Heavy Duty Twin Shaft Shredder is a versatile, heavy duty, dual electric motor driven, twin shaft shredding machine, available with various power and shaft speed configurations to handle a wide range of applications.

The twin shaft shredder uses two parallel shafts with interlocking cutting discs, as a result the material is shredded both lengthways and crossways. The cutting discs have tipped blades which grab the material and pull it down into the cutting chamber, making it particularly effective when shredded large hollow containers. The machine is not fitted with a fixed screen which means that issues with screen bridging/blocking are avoided and a consistent throughput can be achieved. The product size is controlled by the width of the shredding blades, number of hooks, and hook profile.

The machine is typically provided complete with loading hopper, support frame and stand-alone electrical control panel housing the electrical switchgear and Siemens PLC controller.
Auto-reverse and overload protection are standard features of the DGD Heavy Duty Twin Shaft Shredder. The PLC settings can easily be configured on site during commissioning to suit the type of materials being processed. Maintenance platforms and auxiliary equipment such as conveyors, separators, recirculation screens, and force feeding devices are available on request.

A safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.

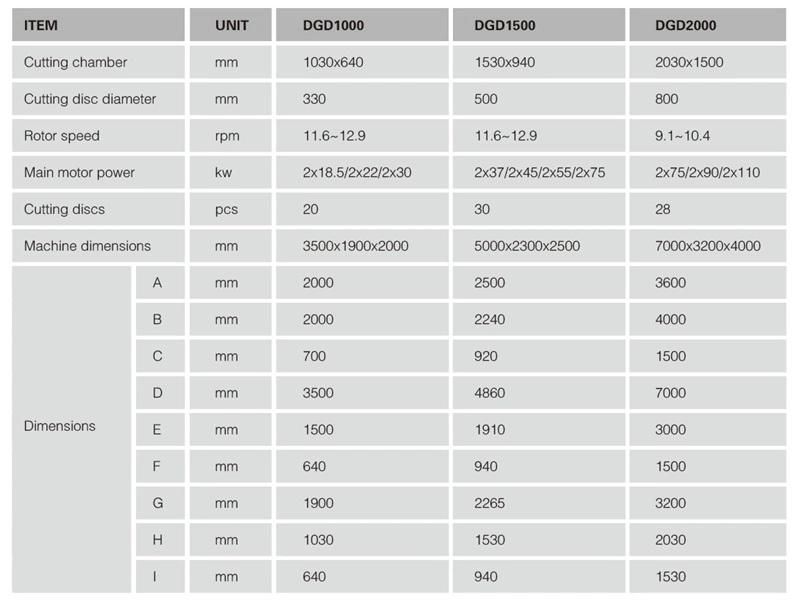

 Specificatoins

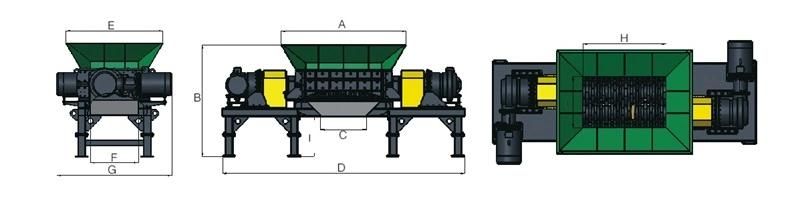

Layout



Features

• Hexagonal shaft design
• Machined bolt-on cutting discs
• Robust heavy duty machine housing
• Low speed, high torque geared drive Bolt in drive shafts
• Multiple blade designs
• Auto reverse function
• Shock absorbing gearbox
• Case hardened steel blades
• 2 piece split bearing housing
• Advanced adjustable sealing system
• Amp meter control

Options

• Hydraulic screen cradle
• Gearbox with shrink disc
• Rotor cooling
• Pipe spacer
• Touch screen PLC
• Hopper mounted viewing mirror
• Increased motor drive
• Hydraulic drive
• Bespoke colour scheme
• Gearbox with shrink disc
• Turbo hydraulics
• Housing wear plates
• Sound absorbing hopper

Applitions

• PLASTICS
• RUBBER
• WOOD
• BIOMASS
• PAPER
• ALTERNATIVE FUELS (RDF/SRF)
• DOMESTIC & COMMERCIAL WASTE

Factory
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling.





Suppliers



Certificates
All of our shredders and granulators have been approved CE certification.

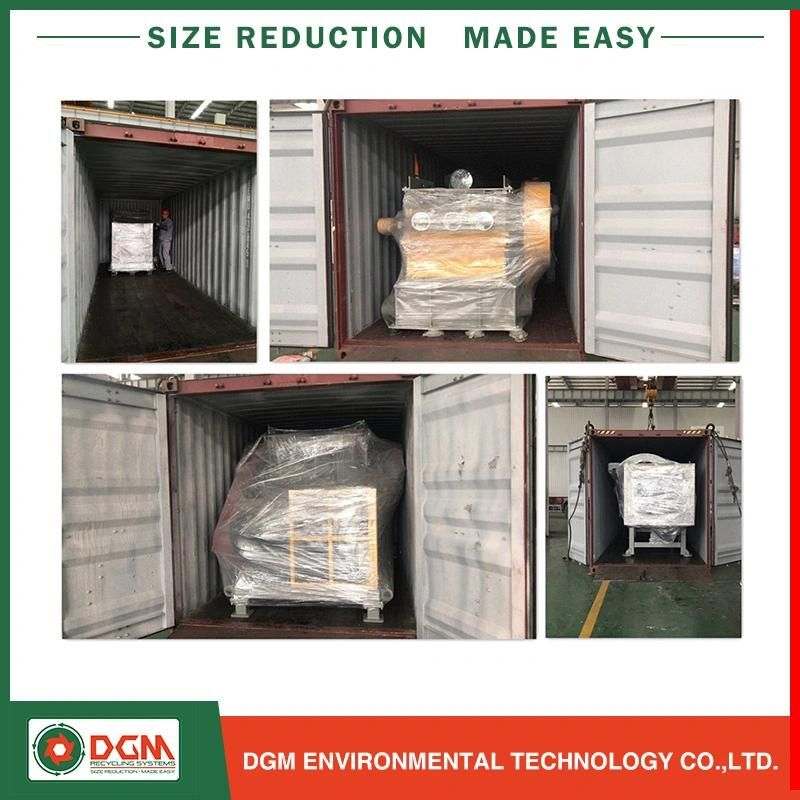

Packaging & Loading

1. Several layers of plastic wrapping film and cardboard to protect plastic recycling machine from dust and moisture.

2. Plastic packing strap belt to fasten wrapping film and machines, also to fix machines in containers.

3. Wooden case is used as the outside package and spare parts when choosing by LCL, air or international express.

4. Excellant logistic team to guarantee the shredder and granulator machines to be safely shipped to customer appointed loaction.

5. If you have any other request for the packaging or loading, we will try our best to meet your demands.







FAQ

Q1: Are you a trading company or a factory ?
DGM is a factory with 10 years experience in plastic machinery manufacturing, and 20 years experience in technology.

Q2: Will you provide pre-sale services?
DGM consists of experienced specialists, we will offer a suitable solution according client's requirement in time.

Q3: Is your after-sales service excellent?
At DGM we have a highly trained team of service personnel to handle all manner of customer service enquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after sale service.

We have an international network which ensures wherever you are in the world you receive localized high level support.

Our technical team has decades of experience in the field of size reduction, washing line and tire recycling and we are on hand to offer assistance in installation, commissioning, staff training and general technical assistance.

Q4: Where is your factory?
Address: No.1.Fengqi Road, Huishan District , Wuxi City, Jiangsu Province, China

Q5: What is your contact informatoin?
Fax: +86 510 8357 0210
Telephone: +86 510 8357 2002
Mobile/  +86 18762812155

Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
