PE Water Supplying Pipe Producrion Line

Qingdao Xindacheng Plastic Machinery Co., Ltd.
  • Product Type：PE Pipe
  • Screw No.：Single-screw
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008
  • Customized：Customized

Base Info

  • Model NO.：xdc-pe
  • Condition：New
  • Name：HDPE Pipe Extrusion Line
  • Transport Package：Sea Package
  • Specification：CE, ISO9000-2001
  • Trademark：xindacheng
  • Origin：China
  • HS Code：84778000
  • Production Capacity：30set,Year

Description

TypePipe Spec (mm)ExtruderMax.outputXDC-HDPE6316-63SJ-45/33200XDC-HDPE16063-160SJ-60/33300XDC-HDPE25075-250SJ-75/33400XDC-HDPE500160-500SJ-90/3360XDC-HDPE630315-630SJ-120/331000XDC-HDPE800450-800SJ-120/381200XDC-HDPE1200710-1200SJ-150/331500
Product description:
Xindacheng Plastic Machinery Company developped the fully anutomatic production line on the basis of many years' experience in the production line designing.

Product description:

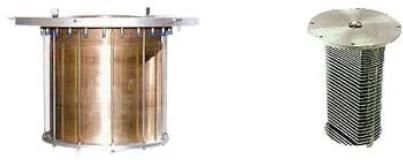

The tube sizing:
1. The sizing sleeve with the entrance water curtain is applicable to the HDPE,LDPE and PP etc.
 2. There is a closed inside room on the front end of butterfly type sizing sleeve, and it is applicable to the small tube extrusion specially.
PE Water Supplying Pipe Producrion Line

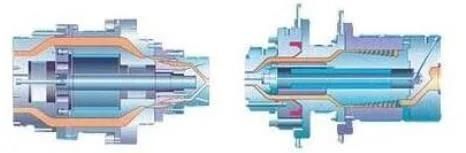

The mould:
1. Standard series: 10-1600mm spiral allotment type or skep types flow divide body.
2. The best design of low melting temperature causing small tube internal stress and smooth inside and outward appearance.
3. High flexibility is applicable to all polyolefin material multi-layer co-extrusion form.
PE Water Supplying Pipe Producrion Line
The vacuum sizing water tank:
1.  The water pump of high power and spraying head of special design bring high efficient spraying cooling.
2. On the section of sizing sleeve establish dense and intensive spraying heads.
3. The percolation unit with the bypass pipeline improved the stability of the equipments and reduce maintenance.
4. Have the high and low water level control levels.
5. Three-dimensional adjusting.
PE Water Supplying Pipe Producrion Line
 Tractor machine:
1. Changing frequency speed adjusting system guarantee synchronous hauling off.
2. With the proportion valve and gas pressure control to regulate precisely
3. With the central motor drives all bedrails to attain highly synchronous result.
4. The automatic tube wall thickness increases and the length measuring device may be chosen.
PE Water Supplying Pipe Producrion Line
The sawing machine
1. Blade type machine.
2. The planet type incising machine.
3. The circle cut type incising machine.
4. The function for setting automatic cutting.
5. Low noise and high protection design
6. Vivid and dependable roller type voves.
PE Water Supplying Pipe Producrion Line
The extruder:
1. PLC or temperature gauge control.
2. HIgh extrusion capacity, low melt temperature.
3. Special screw design insure the high-efficiency and high yield.
4. Bevel gear design of high hardness and low noise brings dependable performance and long service life.
5. Adoption direct current speed regulation, the frequency variable speed adjusting and the electromagnetism speed.
