• Model NO.：sj-pvc
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Non-Computerized
• Brand：Xdc
• Material：PVC
• Width(Max)：1500mm
• Thickness(Max)：3mm
• Extruder：Twin-Screw
• Capacity：80-800kg,H
• Name：PVC Sheet Production Line
• Transport Package：Wooden
• Specification：CE
• Trademark：XDC
• Origin：Qingdao
• Production Capacity：5

Basic Info.

Model NO. sj-pvc Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Non-Computerized Brand Xdc Material PVC Width(Max) 1500mm Thickness(Max) 3mm Extruder Twin-Screw Capacity 80-800kg/H Name PVC Sheet Production Line Transport Package Wooden Specification CE Trademark XDC Origin Qingdao Production Capacity 5

Product Description

Technical parameter:

Model,Paramter	SJGF-160	SJGF-250	SJGF-400	SJGF-630
Extuder	SJZ60	SJZ65	SJZ80	SJZ92
Diameter   range(mm)	φ63-φ160	φ110-φ250	φ200-φ400	φ315-φ710
Haul-off Speed   (m/min)	0.8-10	0.5-5	0.3-4	0.2-3
Total Power(kW)	89	95	135	255
Total Length(mm)	20000	20500	28000	30000

Product description:

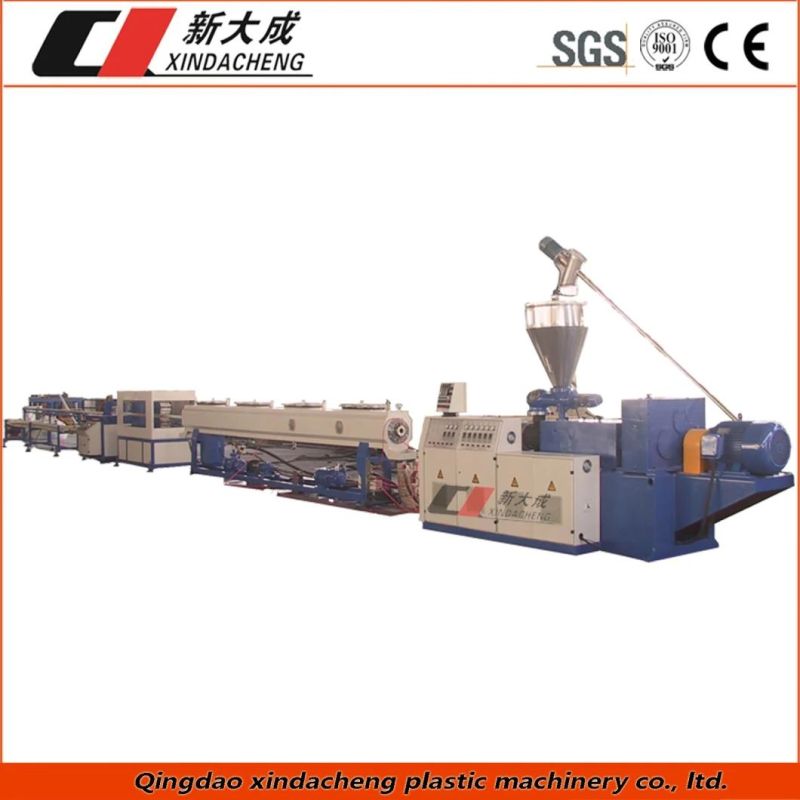

•   Mainly used to produce U-PVC, C-PVC Huge Calibre Pipe for Supply an Drain Water.

•   Composed of double screw extruder, pipe die, vacuum sizing device, multi-pedrails hauling machine, cutting machine and stacker;

•   Choose conical or parallel double screw extruder according to different demands



Technical parameter:

Equipment model	SJ-45/28	SJ-65/28	SJ-75/28
Pipe size	Φ8-Φ22mm	Φ12-Φ38mm	Φ16-Φ50mm
Production speed	15m/min	15m/min	15m/min
Matching power	75kw	90kw	130kw

Product description:

The PVC Fiber Enhancing Soft Pipe, also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid, it is widely used in such areas as mechanical engineering, coal mine, petroleum, chemical industry, agriculture irrigation, civil application (solar energy water heater, gas-jar), also it can be used in irrigating garden and lawn.

Technical parameter:

plate width	700-1100(mm)
plate thickness	1.2-6(mm)
extrusion capacity	300-500(kg/h)
production speed	0.2-10(m/min)

Product description:

Equipment characteristics:

1.PLC or intelligent control system, easy to operate;

2.Advanced temperature control system, precise in temperature control, reduce energy consumption, improve production efficiency and product quality;

3.Automatic frequency conversion adjustment, being synchronous with production line;

4.Rolled type plate, one-time forming, uniform thickness;

5.Stable horizontal cut-off control, high precision in synchronous cutting, to ensure smooth cut, small cutting noise, closed dust collection;

6.We produce single plate, double plate and multilayer plate based on user's requirements.



Application and characteristics:

Widely used in factories, workshops, warehouses, residence, carport, farmers market, road boarding and other permanent buildings, especially suitable for corrosive industries such as ceramic production workshop, chemical fertilizer warehouse, zinc plating plant, aluminum plant, chemical plant, etc..

1. Good waterproof;

2. Be good at self-cleaning;

3. Body stability. Even if the temperature changes greatly, its performance of thermal expansion and contraction can be self-digested, to ensure stable;

4. light in weight;

5. Good flame retardancy;

6. Be good at insulation, sound insulation and thermal insulation;

7. Excellent impact resistance;

8. Excellent corrosion resistance;

9. It belongs to environmentally-friendly new building materials that are highly recommended by the state. (The PVC material is recyclable and reusable, and it can be further processed as its accessories, such as diesel, etc...)
