Plastic Machinery

Home > Product > Plastic Machinery Parts

Nitrided Screw and Barrel for Engineering Plastics with Less Than 10% Glass Fiber or ...

Ningbo Jinyi Precision Machinery Co., Ltd.
  • After-sales Service：Online
  • Warranty：12 Months
  • Standard：DIN, GOST, GB, ANSI, BS
  • Technics：Machining
  • Feature：Durable
  • Material：Alloy Steel

Base Info

  • Model NO.：JYSS05
  • Max Dia：500mm
  • Max Length：8000mm
  • Hardness：45-62HRC
  • Straightness：0.02mm,M
  • Surface Roughness：Ra0.8
  • Application：Recycling Engineering Plastics,<20% GF

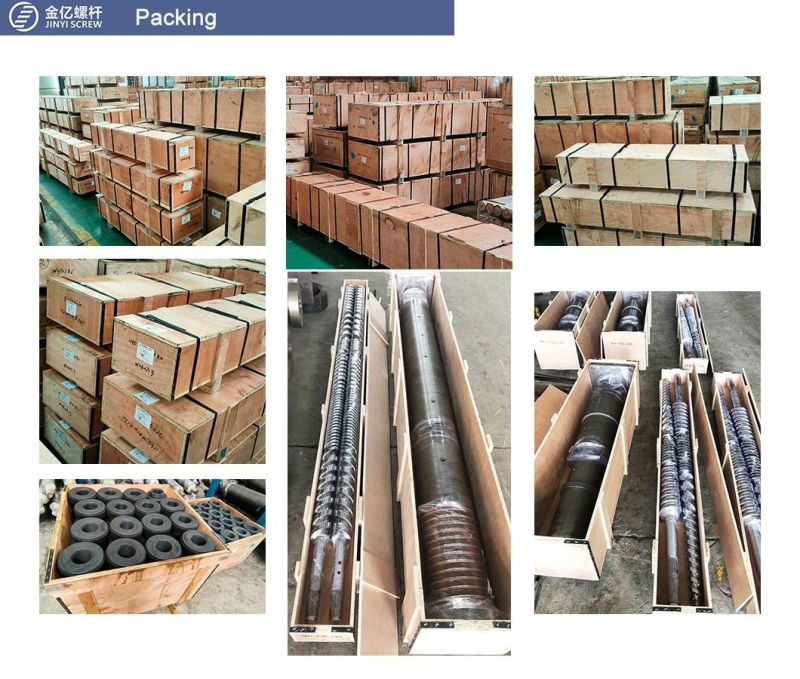

  • Package：Wooden Case
  • Waranty：12 Months
  • Nitrided Depth：0.6-0.8mm
  • Transport Package：Wooden
  • Specification：d16~d500mm
  • Trademark：JY
  • Origin：China
  • HS Code：84779000
  • Production Capacity：2000set,Month

Description

Product FeaturesBrandJINYIProduct NameNitrided Screw BarrelBase Material38CrMoAlA High-quality Alloy Structural SteelSuitable MachineInjection Molding MachineBimetallic MaterialJYS01(Ni,Cr,Si), JYS02(Ni,Cr,W), JYS03(Co,Cr,W)Quenching and Tempering HardnessHB260-280Nitriding HardnessHV950±50  Nitride Layer Depth & Hardness0.4-0.6mm , 56-60HRCBrittleness≤2Surface FinishRa0.04Scope of ApplicationSuitable Recycling & Engineering Plastics & < 20% reinfored additives & corrosive plastic
Nitrided Screw and Barrel for Engineering Plastics with Less Than 10% Glass Fiber or FillerNitrided Screw

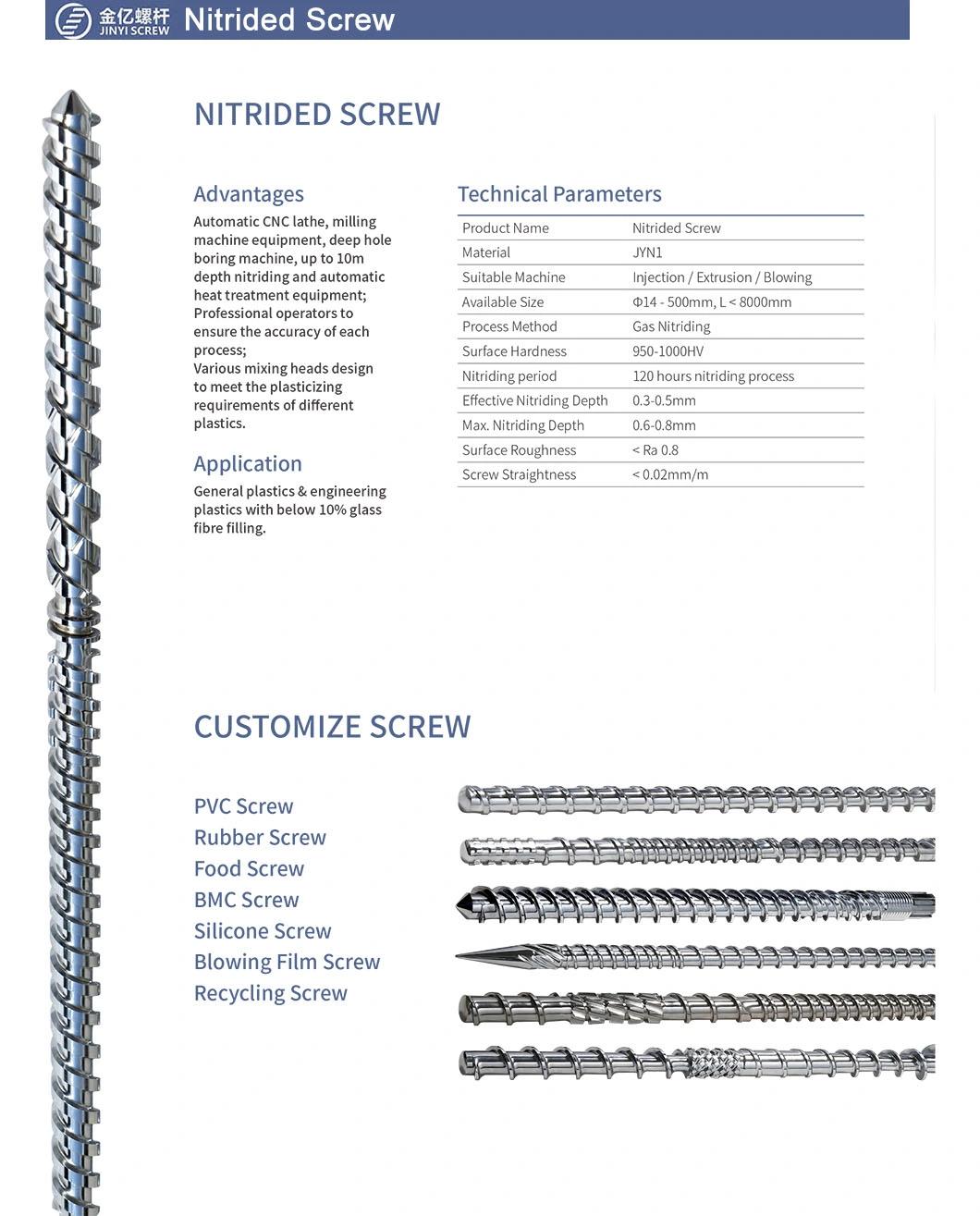

Technical Parameters
Product Name : Nitrided Screw
Material: JYN1
Suitable Machine: Injection / Extrusion / Blowing
Available Size: Φ14 - 500mm, L < 8,000mm
Process Method: Gas Nitriding
Surface Hardness: 950-1000HV
Nitriding period: 120 hours nitriding process
Effective Nitriding Depth: 0.3 - 0.5mm
Max. Nitriding Depth: 0.6 - 0.8mm
Surface Roughness: < Ra 0.8
Screw Straightness: < 0.02mm/m

Advantages

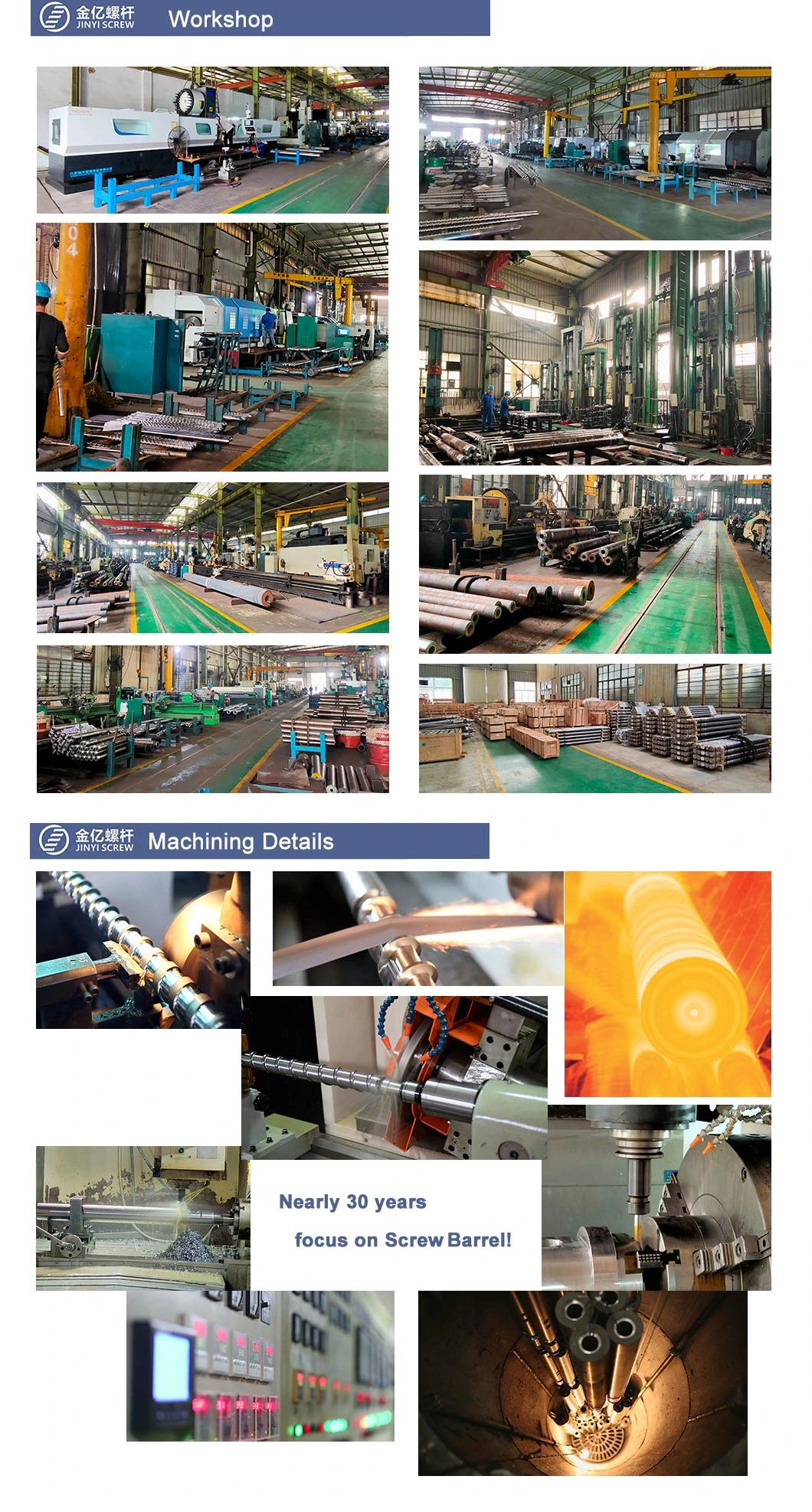

Automatic CNC lathe, milling machine equipment, deep hole boring machine, up to 10m depth nitriding and automatic heat treatment equipment;
Professional operators to ensure the accuracy of each process;
Various mixing heads design to meet the plasticizing requirements of different plastics.

Application
General plastics & engineering plastics with below 10% glass fibre filling.
Nitrided Screw and Barrel for Engineering Plastics with Less Than 10% Glass Fiber or Filler
Nitrided Screw and Barrel for Engineering Plastics with Less Than 10% Glass Fiber or Filler
 Nitrided Screw and Barrel for Engineering Plastics with Less Than 10% Glass Fiber or Filler Nitrided Screw and Barrel for Engineering Plastics with Less Than 10% Glass Fiber or Filler

Nitrided Screw and Barrel for Engineering Plastics with Less Than 10% Glass Fiber or FillerNitrided Screw and Barrel for Engineering Plastics with Less Than 10% Glass Fiber or Filler

FAQ:

Q1. What's your MOQ?
1PC or SET

Q2. Can I place the customized order for different sizes, materials, structure….?
Yes, all customized orders are welcomed.

Q3. Could I get a QC report before delivery?
Yes, the specific QC reports will be sent to you before delivery.

Q4. Can I have our own logo or label on our product?
Yes,we can laser your logo or code number on your product.

Q5. How long is your guarantee?
1year,2 years,5 years base on different requirement.

Q6. How to reach you for other questions?
Please feel free to contact us through E-mail, call or visiting our factory as below address.

Nitrided Screw and Barrel for Engineering Plastics with Less Than 10% Glass Fiber or Filler
