• Model NO.：CHSJ-R
• Machine Weight：4T

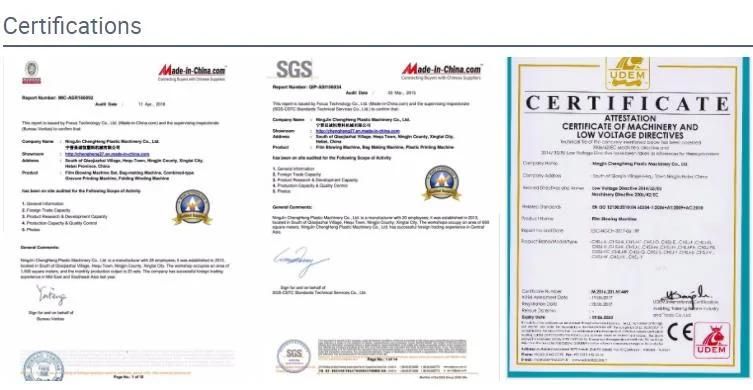

• Certification：CE, ISO9001:2008
• Film Width(Folding Diameter)：300-1200
• Film Thickness(mm)：0.007-0.05
• Extrusion Capacity：100-225 Kg,H
• Winding Speed M：100,Min
• Main Motor：37kw Siemens Brand Motor
• Gear Box：200#
• Air Ring：Double Lips Air Ring HDPE,LDPE
• Air Ring Material：High Quality Taiwan Cast Aluminum Alloy Air Ring
• Winder Type：Surface Friction Rewinding, Automatic Winder
• Transport Package：Wooden-Box , Nude
• Specification：SGS
• Trademark：Chengheng
• Origin：China
• HS Code：8477300000
• Production Capacity：100 Sets,Year

ModelR-45-40/700   R-50-45/900  R-55-50/1200  R-65-55/1400Width of the film200-600mm   250-800mm  500-1100mm 500-1300mmThickness of the film0.006-0.15mmThe max output85kg/h   125kg/h 150kg/h  175kg/h
According to different width,thickness of film, die size and raw material characteristics to changeRaw materialHDPE/LDPE/LDPEPower consumption25kw/h   28kw/h  35kw/h  40kw/hWeight2800kg   3200kg  3800kg  4200kgOverall dimension(L*W*H)m6.5*2.7*5  6.5*3*5.8 6.5*3.8*6.2   6.8*4*6.8Extruder unitDiameter of screwΦ45/50  Φ50/45   Φ55/50   Φ65/55
38CrMoALA  wearproof Alloy steel,five years guaranteeL/D ratio of screw30:1Rotation speed of screw10-120r/mBarrel FanZone 3 barrels install over-temperature fanGear box146#×2   173#×2   200#×2   225#×2
Extruder special hard gear reducer,tooth grinding teeth hardened, internal and external oil circulation systemMain motor11kw    15kw    30kw   37kw
100% Original three-phase variable frequency motor  Equipped with inverter controlDie head unitDie diameter50mm   60mm  80mm   250mm  360mm
With 40Cr steel forging finishing, eight feed trough runner,Uniform flow channel,blown plasticizing effectCool unitAir ring type
 LDPE double vents vacuum air ring
HDPESingle outlet air ringAir ring materialHigh quality Taiwan cast aluminum alloy air ringBellow power1.5kw  4kw   2.2kw   7.5kw   Shanghai production of high-pressure mute fanTraction unitWidth of take up roller700mm  900mm   1200mm   1400mm Traction roller materialsilicone roll
NBR rollerTake up motor1.5kw  2.2kw  3.0kw
Installation of RV series reducer variable frequency motor inverter controlTake up speed100m/min
constant tension traction motor1.5kw10N.m
width of traction roller700mm  900mm   1200mm   1400mm Embossing roller
 hot embossing unit
cold embossing unitLambdoidal board
 Wooden flannel wrapped
Aluminum roller guide  Gusset equipment
 Modular rack type
Independent Split  Bubble stabilizing ringElectric aluminum roller guide
Manual wood floorGuide rollerAluminum guide roller (HV300-HV700) surface treatmentWinding unitWinding typeSurface friction rewinding, manually change the volumeDrive typeTorque motor equipped RV reducerFilm expanding rollerSmoothing rollThe second traction partIndependent torque control constand tension controlElectric control cabinetlow-voltage is Universal electrical appliances, Delixi Electric, Taiwan's Yangming Electric, Huibang temperature control tableComputer control type7-inch touch screen + process control system
Automatic air supply device Service

Our Advantage:
1.      First-class and professional service team offer one-stop intimate service. 18 senior technical experts, more than 20 after sales service staff.
2.     No charge for training the technician, let you have nothing to worry about!
3.     Five yearafter-sales service and mechanical parts lifetime warranty.
4.     Life-long free for offering all kinds of technical service and 24 hours after service.(no worry about the time differences)

Order step
     step1. Please let us know which product you like. the model and size, the offers will be sent to you within 24 hours.
     step2.  We make proforma invoice (PI) for you.
     step3. Please check and confirm the PI
     step4. Once we confirmed the order, please pay it soon.
     step5. After payment, all goods will be sent to you in the delivery time.
