• Model NO.：LMSB-PP PS sheet machine
• Customized：Customized
• Condition：New
• Machine Name：PP PS Thermoforming Sheet Production Line
• Warranty Time：1 Year
• Color：Customizable
• Production Line Size：20*3*2m
• Voltage：3phase, 380V, 50Hz or Customized
• T-Die and Screw Brand：Chinese Best Brand
• Inverter：ABB
• Contactor：Schneider
• Thermo Controller：Rkc RS400
• PP Sheet Thickness：0.2-2mm
• Transport Package：Wooden Case or Other Moistureproof Packages
• Specification：ISO SGS CE GOST
• Trademark：Leader Machinery
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：35lines Per Year

OutputT-Die Brandsheet specificationUpto 500-600kg/hChinese Number 1 JC-Times or USA EDI Brandwidth:600-1200mm,
thickness:0.2-2mm

1 Single Screw Extruder:

Screw adopts special mixing function and high plasticizing capacity design, famous imported world-known thermocontrollers,electronics, hard gear surface gearbox to ensure high effective material extrusion capacity.

2 T-type die head: JC-Times brand

 Excellent mould special steel 5CrNiMo, suitable compression ratio to ensure uniform flow stability. Using a special double flow design which allows more precise adjustment to sheet thickness.

Temperature control of plus or minus 1 ºC can accurately control the plasticizing process and sheet thickness. Die head is designed with width adjustment system .



3.Three roller calendar: Alloy steel material , chromed, good quality

According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control adopts a unique flow channel, so that the stability if uniform distribution roller. The independent oil temperature control for three roller calendar to ensure more stable and exact control.



4 Cooling frame: according to product specifications, configure with different specifications of stainless steel cooling roller.

5 Edge cutting device:

Trimming can be manual or automatic. Both the position of the edge trimmer and the width of trimming sheet can be adjustable.



6 Haul off and Cutting machine:

it can be divided into saw cutting or knife cutting. Thin type and non-friable type sheet usually adopt knife cut, adopting high quality alloy cutting tools, sharp and durable.

Thick type sheet usually use saw cutting.

7 Winder: torque motor driving. The winding speed can be automatically controlled according to the tension. Portable airshaft, easy and convenient operation.

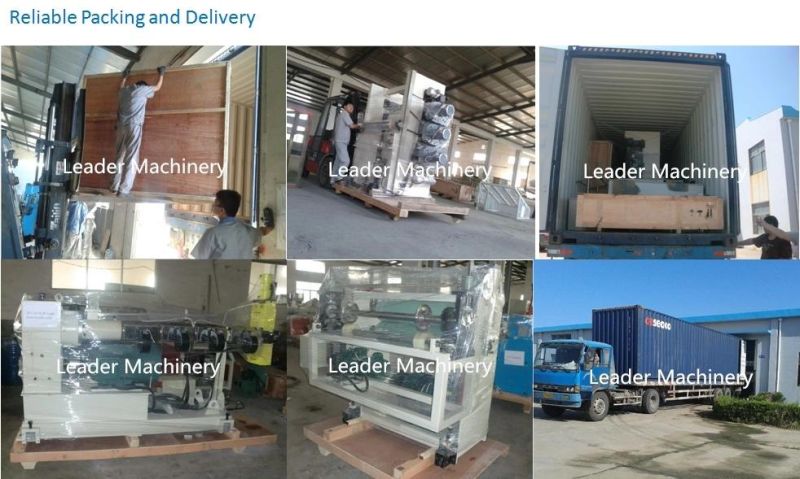

Packaging & Shipping

Packaging Details: wooden cases with streching films or seaworthy packing
Delivery Detail: 30-60 days after receiving the deposit

Qingdao Leader Machinery Co.,ltd  will help you calculate the detailed dimension and the number of Container. And we promises delivery the machine within  duration. It is based on our experience of manufactruing machine and management.

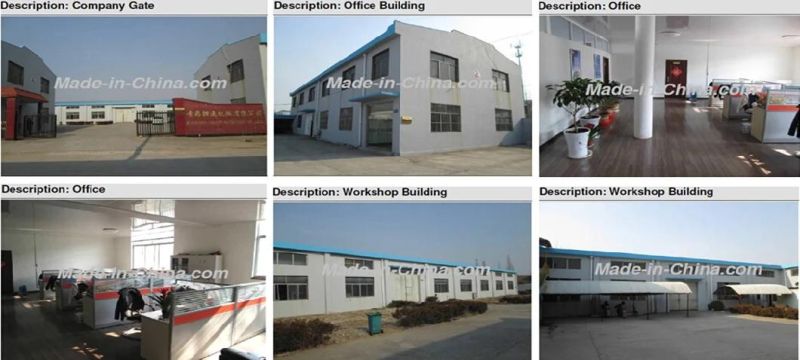

COMPANY INFORMATION AND CERTIFICATIONS:


DELIVERY AND PACKAGING:


OVERSEA TRADE SHOWS:

CONTACT DETAILS:





PART 5 OTHER KINDS OF PLASTIC SHEET EXTRUSION MACHNE RECOMMANDATION:

1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.15-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 350-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 500kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 300kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer  strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.
